Datasheet Signal Transformer DP-241-8-24 — Даташит

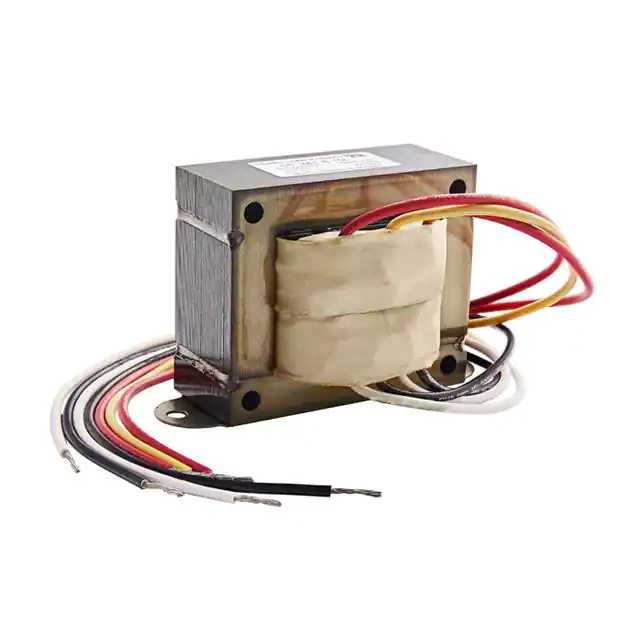

Chassis Mount 241 Series
Two-4-One™ Power Transformers Split Bobbin Construction Providing Superior
Isolation
Signal’s 241 transformers use a split bobbin construction that
provides superior isolation and low capacitive coupling. General Specifications
• • • • • • Power -2.4 VA to 100 VA
Dielectric Strength -2500 Vrms Hipot

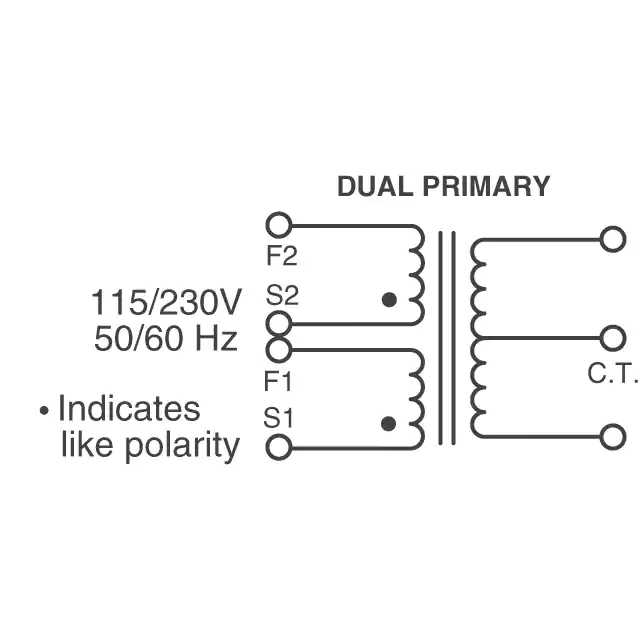

Primaries -Single or dual primaries (115 V or 115/230 V -50/60 Hz)
Secondary -Single center tapped secondary
Terminals -Solder lug / quick connect type terminals
Insulation -Class B (130° C) UL 1446 E66312 Agency Certifications
• UL recognized to UL 506 / UL 5085-1, File # E63829
• CSA certified to C22.2 #66.1, File # 221070 RoHS Compliant belfuse.com/signal 241 Series Datasheet
Part Number Selection
Part Number
Single 115 V Dual 115 / 230 V 241-3-10 Not Available 241-4-10 Secondary RMS Rating Part Number Secondary RMS Rating Single 115 V Dual 115 / 230 V 10.0 VCT @ 0.25 A 241-3-28 Not Available 28 VCT @ 0.085 A DP-241-4-10 10.0 VCT @ 0.60 A 241-4-28 DP-241-4-28 28 VCT @ 0.20 A 241-5-10 DP-241-5-10 10.0 VCT @ 1.2 A 241-5-28 DP-241-5-28 28 VCT @ 0.42 A 241-6-10 DP-241-6-10 10.0 VCT @ 3.0 A 241-6-28 DP-241-6-28 28 VCT @ 1.1 A 241-7-10 DP-241-7-10 10.0 VCT @ 5.0 A 241-7-28 DP-241-7-28 28 VCT @ 2.0 A 241-8-10 DP-241-8-10 10.0 VCT @ 10 A 241-8-28 DP-241-8-28 28 VCT @ 3.6 A 241-3-12 Not Available 12.6 VCT @ 0.20 A 241-3-36 Not Available 36 VCT @ 0.065 A 241-4-12 DP-241-4-12 12.6 VCT @ 0.50 A 241-4-36 DP-241-4-36 36 VCT @ 0.17 A 241-5-12 DP-241-5-12 12.6 VCT @ 1.0 A 241-5-36 DP-241-5-36 36 VCT @ 0.35 A 241-6-12 DP-241-6-12 12.6 VCT @ 2.5 A 241-6-36 DP-241-6-36 36 VCT @ 0.85 A 241-7-12 DP-241-7-12 12.6 VCT @ 4.0 A 241-7-36 DP-241-7-36 36 VCT @ 1.5 A 241-8-12 DP-241-8-12 12.6 VCT @ 8.0 A 241-8-36 DP-241-8-36 36 VCT @ 2.8 A 241-3-16 Not Available 16.0 VCT @ 0.15 A 241-3-48 Not Available 48 VCT @ 0.05 A 241-4-16 DP-241-4-16 16.0 VCT @ 0.40 A 241-4-48 DP-241-4-48 48 VCT @ 0.125 A 241-5-16 DP-241-5-16 16.0 VCT @ 0.80 A 241-5-48 DP-241-5-48 48 VCT @ 0.25 A 241-6-16 DP-241-6-16 16.0 VCT @ 2.0 A 241-6-48 DP-241-6-48 48 VCT @ 0.63 A 241-7-16 DP-241-7-16 16.0 VCT @ 3.5 A 241-7-48 DP-241-7-48 48 VCT @ 1.2 A 241-8-16 DP-241-8-16 16.0 VCT @ 6.25 A 241-8-48 DP-241-8-48 48 VCT @ 2.0 A 241-3-20 Not Available 20.0 VCT @ 0.12 A 241-3-56 Not Available 56 VCT @ 0.045 A 241-4-20 DP-241-4-20 20.0 VCT @ 0.30 A 241-4-56 DP-241-4-56 56 VCT @ 0.11 A 241-5-20 DP-241-5-20 20.0 VCT @ 0.60 A 241-5-56 DP-241-5-56 56 VCT @ 0.22 A 241-6-20 DP-241-6-20 20.0 VCT @ 1.5 A 241-6-56 DP-241-6-56 56 VCT @ 0.54 A 241-7-20 DP-241-7-20 20.0 VCT @ 2.8 A 241-7-56 DP-241-7-56 56 VCT @ 1.0 …
