TLP3107A
Photocouplers Photorelay TLP3107A
1. Applications
• Mechanical relay replacements • Heating, ventilation and air conditioning (HVAC) • Factory Automation (FA) • Measuring Instruments • I/O Interface Boards 2. General

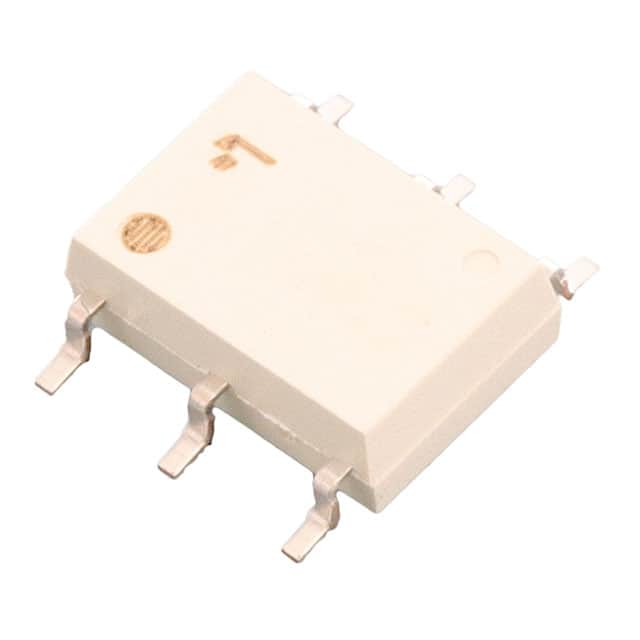

The TLP3107A photorelay consists of a photo MOSFET optically coupled to an infrared LED. It is housed in a
2.54SOP6 package. The low ON-state resistance and the high permissible ON-state current of the TLP3107A
make it suitable for power line control applications. 3. Features
(1) Normally opened (1-Form-A) (2) OFF-state output terminal voltage: 60 V (min) (3) Trigger LED current: 3 mA (max) (4) ON-state current: 4 A (max) (A connection) (5) ON-state resistance: 40 mΩ (max) (A connection) (6) Isolation voltage: 1500 Vrms (min) (7) Safety standards
UL-recognized: UL 1577, File No.E67349
VDE-approved: EN 60747-5-5 (Note 1) Note 1: When a VDE approved type is needed, please designate the Option (V4)
(V4). 4. Packaging and Pin Assignment 1: Anode
2: Cathode
3: N.C.
4: Drain
5: Source
6: Drain 11-7C1S Start of commercial production
©2018-2019
Toshiba Electronic Devices & Storage Corporation 1 2019-10
2019-12-26
Rev.2.0 TLP3107A
5. Internal Circuit 6. Absolute Maximum Ratings (Note) (Unless otherwise specified, Ta = 25 )
Characteristics
LED Symbol Input forward current Note Rating Unit IF 30 mA Input forward current derating (Ta ≥ 25 ) ∆IF/∆Ta -0.3 mA/ Input forward current (pulsed) (100 µs pulse, 100 pps) IFP 1 A Input reverse voltage VR 6 V Input power dissipation PD 50 mW ∆PD/∆Ta -0.5 mW/ Tj 125 60 V 4 A Input power dissipation derating (Ta ≥ 25 ) Junction temperature …
