Middle Power LED Series 3030
Выписка из документа

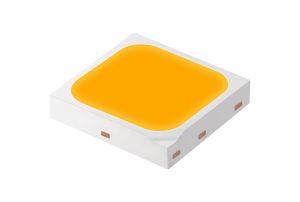

Product Family Datasheet Rev1.2 2020.03.05 Middle Power LED Series
3030 LM302N
NITE Features & Benefits
• 0.9 W class middle power LED
• EMC resin for high reliability
• Standard form factor for design flexibility (3.0 × 3.0 mm)
• Human-centric lighting 1# 2 Table of Contents 1. Characteristics ------3 2. Product Code Information ------4 3. Typical Characteristics Graphs ------11 4. Outline Drawing & Dimension ------14 5. Reliability Test Items & Conditions ------15 6. Soldering Conditions ------16 7. Tape & Reel ------17 8. Label Structure ------19 9. Packing Structure ------20 Precautions in Handling & Use ------22 10. 3 1. Characteristics
a) Absolute Maximum Rating
Item Symbol Rating Unit Condition Ambient / Operating Temperature Ta -40 ~ +85 ℃ -Storage Temperature Tstg -40 ~ +100 ℃ -LED Junction Temperature Tj 125 ℃ -Forward Current IF 200 mA -Pulse Forward Current IFP 300 mA Duty 1/10, pulse width 10ms Assembly Process Temperature -260 …
