EPC2103 - Enhancement-Mode GaN Power Transistor Half Bridge
Preliminary Specification Sheet
Features:
• Greater than 97% System Efficiency at 20 A
o 48 VIN to 12 VOUT, 500 kHz o Includes driver, inductor, and output filter • High Frequency Operation
• High Density Footprint
• Low Inductance Package EPC2103 devices are supplied only in

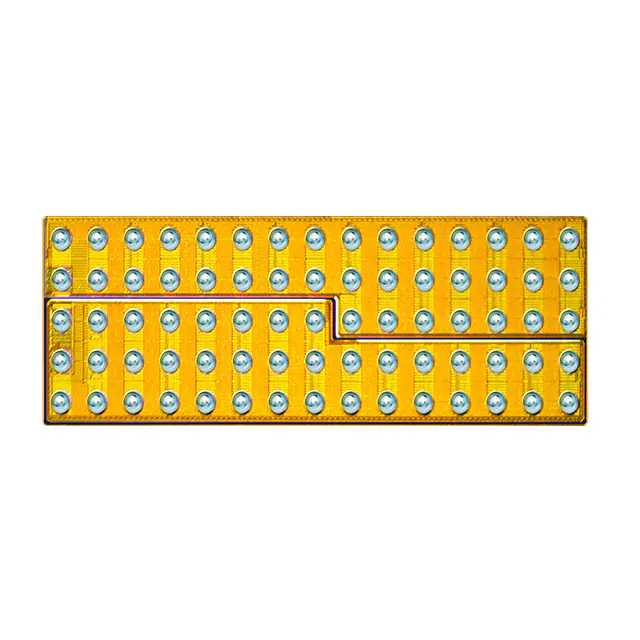

passivated die form with solder balls • Pb-Free (RoHS Compliant), Halogen Free Die Size: 6.05 mm x 2.3 mm Applications:
• High Frequency DC-DC Conversion Typical System Efficiency
98.5
98 Efficiency (%) Typical Circuit 97.5
97
96.5
96 fsw=300 kHz
fsw=500 kHz 95.5
95
94.5
94
0 2 4 6 8 10 12 14 16 18 20 22 24 26 Output Current (A) VIN = 48 V, VOUT = 12 V
MAXIMUM RATINGS Parameter Value Maximum Drain - Source Voltage (VSW to PGND, VIN to VSW)
Maximum Gate - Source Voltage Range (Gate 1 to VSW, Gate 2 to PGND)
Continuous Drain Current, 25 °C, RθJA = 22 (Q1), 22 (Q2)
Maximum Pulsed Drain Current, 25 °C, Tpulse = 300 µs Q1 Control FET 23 A Q2 Sync FET 23 A Q1 Control FET …
