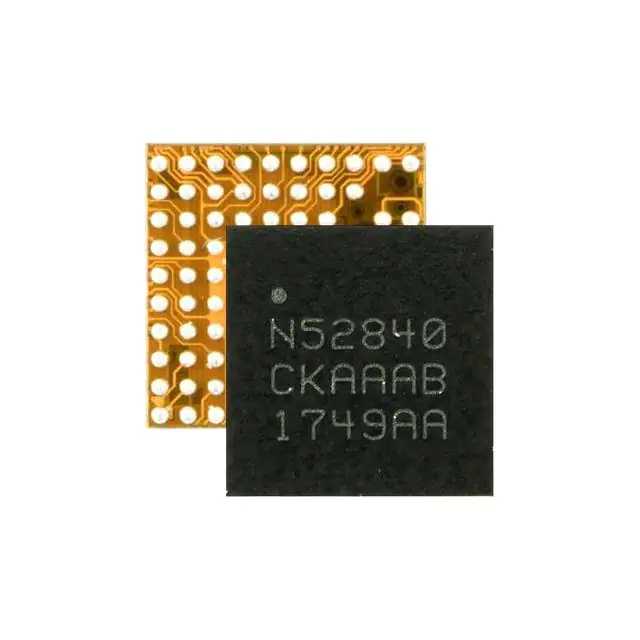

Datasheet Nordic Semiconductor nRF52840-CKAA-R — Даташит

nRF52840 High-end multiprotocol Bluetooth 5 SoC
Supporting: Bluetooth 5/Bluetooth mesh/Thread/802.15.4/ANT/2.4GHz Ready for Bluetooth 5 and high grade IoT security
The nRF52840 is an advanced, highly flexible single chip solution
for today's increasingly demanding ULP wireless applications for
connected devices on our person, connected living environments
and the IoT at large. It is designed ready for the major feature
advancements of Bluetooth® 5 and takes advantage of Bluetooth
5's increased performance capabilities which include long range
and high throughput modes. Inherent industry-grade security is
essential in today's applications. The nRF52840 adds best-inclass security for CortexTM-M Series with on-chip ARM® CryptoCell
cryptographic accelerator.
Advanced performance, lowest power consumption
The nRF52840 employs the same hardware and software
architecture as existing nRF52 Series SoCs. At its core is an
ARM Cortex-M4F processor allowing quicker and more efficient
computation of complex functions for DSP and those requiring
floating point math. There is extensive memory availability in
both flash and RAM, 1MB/256kB respectively. The combination
of Cortex-M4F and memory availability offers unparalleled capabilities for true single chip applications.
A full-speed (12Mbs) USB 2.0 controller is included on-chip. An
extensive range of peripherals are available with a number
of high performance digital interfaces such as high speed SPI
(32MHz) and quad SPI (32MHz) to allow direct interfacing to displays and external memory sources. The nRF52840 can operate …

nRF52840
Product Specification
v1.1 4413_417 v1.1 / 2019-02-28 Feature list
Features:
• ® Bluetooth 5, IEEE 802.15.4-2006, 2.4 GHz transceiver
• -95 dBm sensitivity in 1 Mbps Bluetooth low energy mode
® • 1.7 V to 5.5 V supply voltage range • On-chip DC/DC and LDO regulators with automated low -103 dBm sensitivity in 125 kbps Bluetooth low energy mode (long range) • -20 to +8 dBm TX power, configurable in 4 dB steps • On-air compatible with nRF52, nRF51, nRF24L, and nRF24AP Series • 1.8 V to 3.3 V regulated supply for external components Supported data rates: • Automated peripheral power management • Fast wake-up using 64 MHz internal oscillator • 0.4 µA at 3 V in System OFF mode, no RAM retention • 1.5 µA at 3 V in System ON mode, no RAM retention, wake on current modes ® • Bluetooth 5: 2 Mbps, 1 Mbps, 500 kbps, and 125 kbps • IEEE 802.15.4-2006: 250 kbps • Proprietary 2.4 GHz: 2 Mbps, 1 Mbps RTC • Single-ended antenna output (on-chip balun) • 128-bit AES/ECB/CCM/AAR co-processor (on-the-fly packet encryption) • 4.8 mA peak current in TX (0 dBm) • 4.6 mA peak current in RX • USB 2.0 full speed (12 Mbps) controller RSSI (1 dB resolution) • QSPI 32 MHz interface • High-speed 32 MHz SPI • Type 2 near field communication (NFC-A) tag with wake-on • • Flexible power management • • • • ® ® • 1 MB flash and 256 kB RAM • Advanced on-chip interfaces ® ARM Cortex -M4 32-bit processor with FPU, 64 MHz
• 212 EEMBC CoreMark score running from flash memory • 52 µA/MHz running CoreMark from flash memory • Watchpoint and trace debug modules (DWT, ETM, and ITM) • Serial wire debug (SWD) field
• Rich set of security features
• ® • • Programmable peripheral interconnect (PPI) • 48 general purpose I/O pins • EasyDMA automated data transfer between memory and
peripherals • NIST SP800-90A and SP800-90B compliant random number generator • AES-128: ECB, CBC, CMAC/CBC-MAC, CTR, CCM/CCM* • Chacha20/Poly1305 AEAD supporting 128-and 256-bit key size • SHA-1, SHA-2 up to 256 bits • Keyed-hash message authentication code (HMAC) • 64 level comparator • RSA up to 2048-bit key size • 15 level low-power comparator with wake-up from System OFF • SRP up to 3072-bit key size mode • ECC support for most used curves, among others P-256 (secp256r1) and • Temperature sensor Ed25519/Curve25519 • 4x 4-channel pulse width modulator (PWM) unit with EasyDMA Application key management using derived key model •
• ® ARM TrustZone Cryptocell 310 security subsystem Touch-to-pair support • Nordic SoftDevice ready with support for concurrent multiprotocol • 12-bit, 200 ksps ADC -8 configurable channels wit …
