TLP3412SRHA
Photocouplers Photorelay TLP3412SRHA
1. Applications (Note)
• ATE (Automatic Test Equipment) • Probe Cards • Measuring Instruments • High-Speed Logic IC Testers • High-Speed Memory Testers 2. General

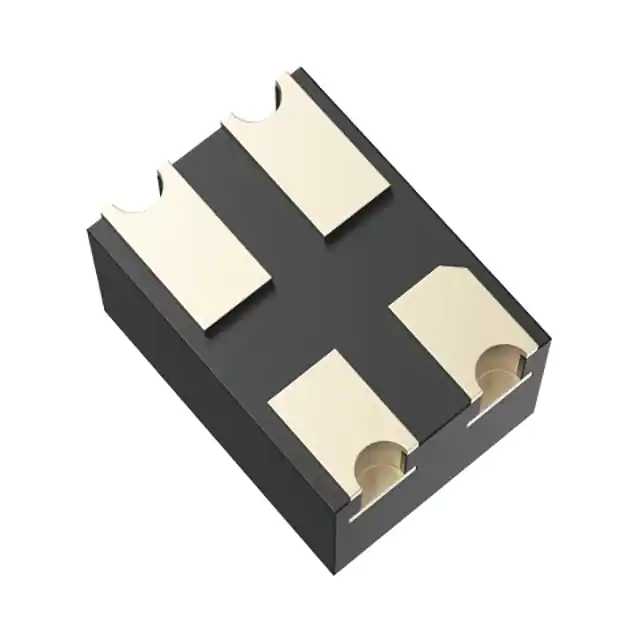

The TOSHIBA TLP3412SRHA is a very small outline non-leaded photorelay suitable for surface-mount assembly.
It is housed in a S-VSON4T package. TLP3412SRHA has a Built-in input resistor, which eliminates an external
input resistor for space saving. Its features include low off-state current and low output pin capacitance. 3. Features
(1) S-VSON4T: 2.0 (L) mm × 1.45 (W) mm × 1.3 (H) mm (2) Operating temperature: -40 to 125 (3) Normally opened (1-Form-A) (4) OFF-state output terminal voltage: 60 V (min) (5) Operating voltage: 3 V (max) (6) ON-state current: 400 mA (max) (7) ON-state resistance: 1 Ω (typ.), 1.5 Ω (max) (8) Isolation voltage: 500 Vrms (min) (9) Halogen-free
For details, see "Devices in Halogen-Free Resin Packages" at the end of this datasheet. 4. Packaging and Pin Assignment 1: Anode
2: Cathode
3: Drain
4: Drain 11-2E2 Start of commercial production
©2020
Toshiba Electronic Devices & Storage Corporation 1 2020-06
2020-07-06
Rev.1.0 TLP3412SRHA
5. Internal Circuit 6. Absolute Maximum Ratings (Note) (Unless otherwise specified, Ta = 25 )
Characteristics
LED Symbol Note Rating Unit 6 V Applied input forward voltage VIN Input reverse voltage VR 6 Input power dissipation PD 50 mW ∆PD/∆Ta -0.45 mW/ Tj 135 Input power dissipation derating (Ta ≥ 25 ) Junction temperature
Detector OFF-state output terminal voltage
ON-state current VOFF 60 V ION 400 mA ON-state current derating (Ta ≥ 25 ) ∆ION/∆Ta -3.6 mA/ ON-state current (pulsed) (t = 100 ms, Duty = 1/10) IONP 1200 mA PO 240 mW (Ta ≥ 25 ) ∆PO/∆Ta -2.2 mW/ Output power dissipation
Output power dissipation derating
Junction temperature …
