REVISIONS
LTR DESCRIPTION A DATE (YR-MO-DA) APPROVED 96-06-12 M. A. FRYE 98-09-02 R. MONNIN 05-04-19 R. MONNIN 08-01-29 R. HEBER 11-03-30 C. SAFFLE 17-09-12 C. SAFFLE Changes in accordance with NOR 5962-R140-96.
Add device type 02. Add RHA requirements. Add case outlines G, H, and P.
Changes were made to paragraphs 1.3, 1.4, table I, and table IIA.
Update boilerplate. – rrp
Replaced reference to MIL-STD-973 with reference to MIL-PRF-38535.
Add a new footnote to paragraph 1.5 and Table I. -ro B
C
D Add a note to case outline G as specified under figure 1. -ro
Add device type 03 tested at low dose rate. Make changes to footnotes 1/
and 2/ as specified under Table I. Make change to the VOS test subgroups
from 4 and 6 to 1 and 3 as specified under Table I. Make change to the
TCVOS test subgroups from 5 and 6 to 2 and 3 as specified under Table I. E Make change to the CMRR and AVO test subgroups from 4, 5, 6 to 1, 2, 3 as
specified under Table I. Make change to IN and EN tests subgroup from 1 to 4
as specified in Table I. Make change to paragraph 4.4.4.1 and Table IIB.
Delete paragraphs 4.4.4.1.1 and 4.4.4.2. -ro F Update drawings to current MIL-PRF-38535 requirements. -rrp REV
SHEET
REV
SHEET
REV STATUS REV F F F F F F F F F F F F OF SHEETS SHEET 1 2 3 4 5 6 7 8 9 10 11 12 PMIC N/A PREPARED BY
RICK OFFICER STANDARD
MICROCIRCUIT
DRAWING DLA LAND AND MARITIME …

This specification documents the detailed requirements for Analog Devices space qualified die including die
qualification as described for Class K in MIL-PRF-38534, Appendix C, Table C-II except as modified herein.
The manufacturing flow described in the STANDARD DIE PRODUCTS PROGRAM brochure at
http://www.analog.com/aerospace is to be considered a part of this specification.
This data sheet specifically details the space grade version of this product. A more detailed operational
description and a complete data sheet for commercial product grades can be found at www.analog.com/OP27
The complete part number(s) of this specification follow:

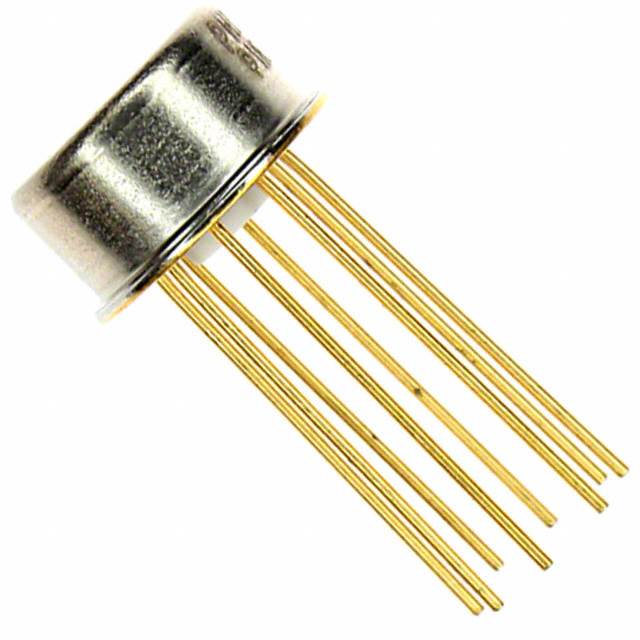

Part Number Description OP27-000C Low-Noise Precision Operational Amplifier OP27R000C Radiation Tested Low-Noise Precision Operational Amplifier 1. BALANCE
2. -INPUT
3. +INPUT
4. -VS
5. NC
6. OUT
7. +VS
8. BALANCE Supply Voltage (VS) . ±22V Input Voltage 2/ . ±22V
Output Short Circuit Duration . Indefinite
Differential Input Voltage 3/ . ±0.7V
Differential Input Current 3/ . ±25mA
Storage Temperature Range . -65C to +150C Operating Temperature Range . -55C to +125C
Junction Temperature (TJ)……………………………….………. 150°C Absolute Maximum Ratings Notes
1/
Stresses above the absolute maximum rating may cause permanent damage to the device. Extended operation at the
maximum levels may degrade performance and affect reliability. …
