TCR5RG series
TOSHIBA CMOS Linear Integrated Circuit Silicon Monolithic TCR5RG series
Ultra high Ripple rejection ratio, 500 mA CMOS Low Dropout Regulator in ultra small package
1. Description
The TCR5RG series are CMOS general-purpose single-output
voltage regulators with an on/off control input, featuring low
dropout voltage and ultra high Ripple rejection ratio.
These voltage regulators are available in fixed output voltages
between 0.9 V and 5.0 V and capable of driving up to 500 mA.
They feature Overcurrent protection, Thermal shutdown and
Auto-discharge.

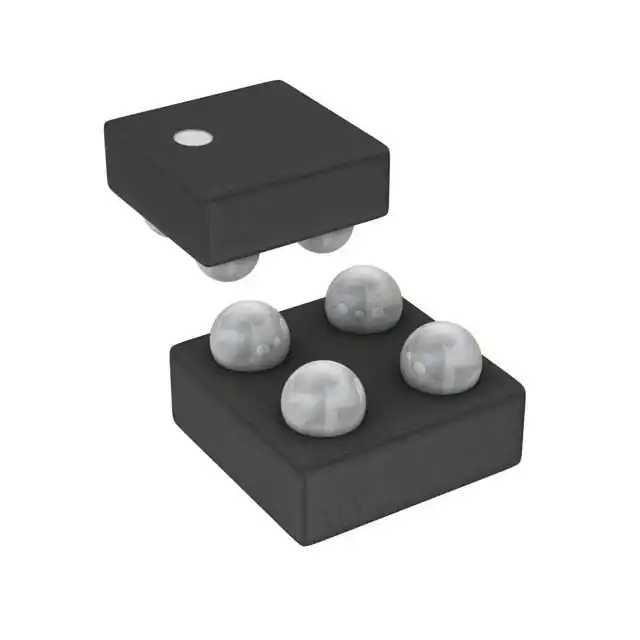

WCSP4F
The TCR5RG series is offered in the ultra small plastic mold
package WCSP4F (0.645 mm x 0.645 mm (typ.); t 0.33 mm
(max) and has a high ripple rejection ratio of 100 dB (f = 1 kHz, 2.8 V output). As small ceramic input and
output capacitors 1μF can be used with the TCR5RG series, these devices are ideal for portable applications
that require high-density board assembly such as cellular phones. 2. Applications
Power IC developed for portable applications 3. Features
•
•
•
•
• …
