® FR101 – FR107
1.0A FAST RECOVERY DIODE
WON-TOP ELECTRONICS Pb
Features Diffused Junction Low Forward Voltage Drop
High Current Capability
High Reliability

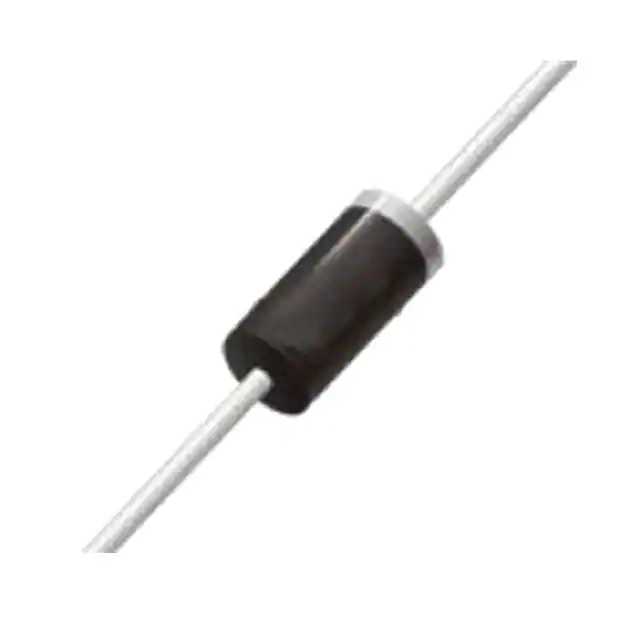

High Surge Current Capability B A A Mechanical Data C Case: DO-41, Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.35 grams (approx.)
Mounting Position: Any
Marking: Type Number
Lead Free: For RoHS / Lead Free Version,
Add “-LF” Suffix to Part Number, See Page 4 D
Dim DO-41
Min A 25.4 — B 4.06 5.21 C 0.71 0.864 D 2.00 2.72 Max All Dimensions in mm Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified Single Phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%. Characteristic Symbol Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current (Note 1) Unit VRRM
VRWM …
