1200V-150mW SiC Cascode
Rev. A, January 2021 DATASHEET
Description UF3C120150B7S
D (Tab) This SiC FET device is based on a unique ‘cascode’ circuit
configuration, in which a normally-on SiC JFET is co-packaged with a Si
MOSFET to produce a normally-off SiC FET device. The device’s
standard gate-drive characteristics allows for a true “drop-in
replacement” to Si IGBTs, Si FETs, SiC MOSFETs or Si superjunction

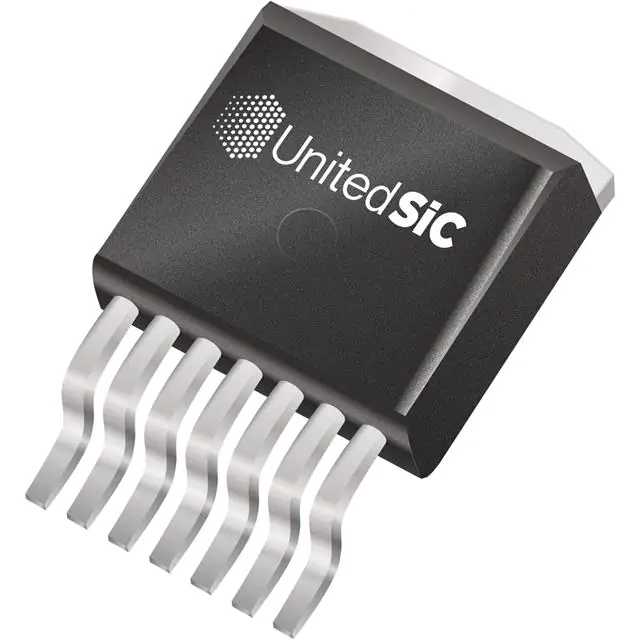

devices. Available in the D2PAK-7L package, this device exhibits ultralow gate charge and exceptional reverse recovery characteristics,
making it ideal for switching inductive loads , and any application
requiring standard gate drive. Features Tab w On-resistance RDS(on): 150mW (typ)
w Operating temperature: 175°C (max) G (1) 1 w Excellent reverse recovery: Qrr = 67nC 7 w Low body diode VFSD: 1.46V KS (2) w Low gate charge: QG = 25.7nC
w Threshold voltage VG(th): 4.4V (typ) allowing 0 to 15V drive S (3-7) w Package creepage and clearance distance > 6.1mm
w Kelvin source pin for optimized switching performance
w ESD protected, HBM class 2 Part Number
UF3C120150B7S Package
2 D PAK-7L Marking
UF3C120150B7S Typical applications
Any controlled environment such as
w Telecom and Server Power
w Industrial power supplies
w Power factor correction modules
w Motor drives …
