Datasheet Toshiba TLX9188 — Даташит

Производитель	Toshiba
Серия	TLX9188
Модель	TLX9188

Оптопара (выход на фототранзистор)

Datasheets

Просмотр и загрузка

PDF, 613 Кб, Язык: анг., Файл опубликован: сен 2021, Страниц: 8
TOSHIBA Photocoupler IRLED & Photo-Transistor

Выписка из документа

TLX9188
TOSHIBA Photocoupler IRLED & Photo-Transistor TLX9188
〇 Signal transmission between different circuit potential
〇 HEV (Hybrid Electric Vehicle) and
EV (Electric Vehicle) Applications
○ Battery management System (BMS) Unit: mm TLX9188 consists of phototransistors optically coupled to an infrared LED.
TLX9188 is housed in the very small and thin SO6(4pin) package and that
guarantees high temperature operation(Ta=125 °C max). With the high
breakdown voltage between the collector and emitter (VCEO=200 V), TLX9188
is suitable for use in battery management system. Collector-emitter voltage: 200 V (min) Current transfer ratio: 50% (min) to 600%(max)
Rank GB: 100% (min) to 600%(max) Isolation voltage: 3750 Vrms (min) Operating temperature: -40 to 125 °C AEC-Q101 qualified Pin Configuration
1 6 3
4 4
4 JEDEC ― JEITA ― TOSHIBA 11-4M1S Weight: 0.08 g (typ.) 1: Anode
3: Cathode
4: Emitter
6: Collector © 2021
Toshiba Electronic Devices & Storage Corporation 1 2021-09-13 TLX9188
Absolute Maximum Ratings (Note) (Unless otherwise specified, Ta = 25°C)
Characteristic Symbol Rating Unit IF 30 mA ΔIF/°C -0.7 mA/°C IFP 1 A Reverse voltage VR 5 V Input Power Dissipation PD 50 mW ΔPD/°C -0.5 mW/°C Tj 135 °C Collector-emitter voltage VCEO 200 V Emitter-collector voltage VECO 7 V Collector current IC 50 mA Collector power dissipation PC 150 mW ΔPC/°C -1.37 mW/°C Tj 135 °C Operating temperature range Topr -40 to 125 °C Storage temperature range Tstg -55 to 150 °C Lead soldering temperature (10 s) Tsol 260 °C Total package power dissipation PT 200 mW BVS 3750 Vrms Forward current
Forward current derating (Ta ≥ 108 °C) LED Pulse forward current (Note 1) Input Power Dissipation Derating (Ta ≥ 50°C) Detector Junction temperature Collector power dissipation derating (Ta ≥ 25°C)
Junction temperature Isolation voltage (AC, 60 s, R.H. ≤ 60 %) (Note 2) Note : Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even …

Цены

Купить TLX9188 на РадиоЛоцман.Цены — от 123 до 334 ₽ 16 предложений от 3 поставщиков Оптопары с Транзисторным Выходом
Зенер Россия и страны ТС	TLX9188(GBTPL,F	от 123 ₽
Компонентс Ру Россия	TLX9188(GBTPL,F Toshiba	от 331 ₽
ЭИК Россия	TLX9188(GBTPL,F Toshiba	от 334 ₽

Статус

Статус продукта

В производстве (Рекомендуется для новых разработок)

Корпус / Упаковка / Маркировка

Количество выводов	4

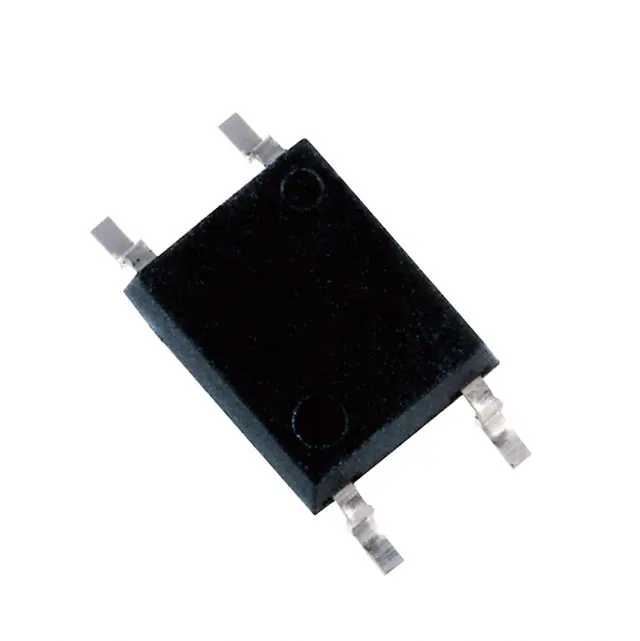

Код корпуса производителя	4pin SO6
Способ монтажа	Surface Mount
Ширина×Длина×Высота	3.7×7.0×2.1 мм

Параметры

Application Scope	Various Controllers / Signal transmission between different circuit potential / HEV(Hybrid Electric Vehicle) and EV(Electric Vehicle) Applications
Collector Current	0.05 A
Collector Emitter Saturation Voltage (Max)	0.4 В
Collector-emitter voltage	200 В
Current Transfer Ratio (Max) [IF=5mA VCE=5V rank=GB]	600 %
Current Transfer Ratio (Min) [IF=5mA VCE=5V rank=GB]	100 %
Description	TLX9188 consists of phototransistors optically coupled to an infrared LED. TLX9188 is housed in the very small and thin SO6(4pin) package and that guarantees high temperature operation(Ta=125 °C max). With the high breakdown voltage between the collector and emitter (VCEO=200 V), TLX9188 is suitable for use in battery management system.
Основные особенности	2.3mm low-profile package / High V_CEO
Forward Current	0.03 A
Function	High VCEO
Input type	DC
Isolation voltage BVs @1minute (Min) [t=60sec]	3750 Vrms
Number of Circuits	1
Рабочий диапазон температур	от -40 до 125 °C

Экологический статус

RoHS

Совместим

Классификация производителя

Semiconductor > Isolators/Solid State Relays
