BZX8450 series Low-current voltage regulator diodes
Rev. 1 — 24 August 2021 Product data sheet 1. General description

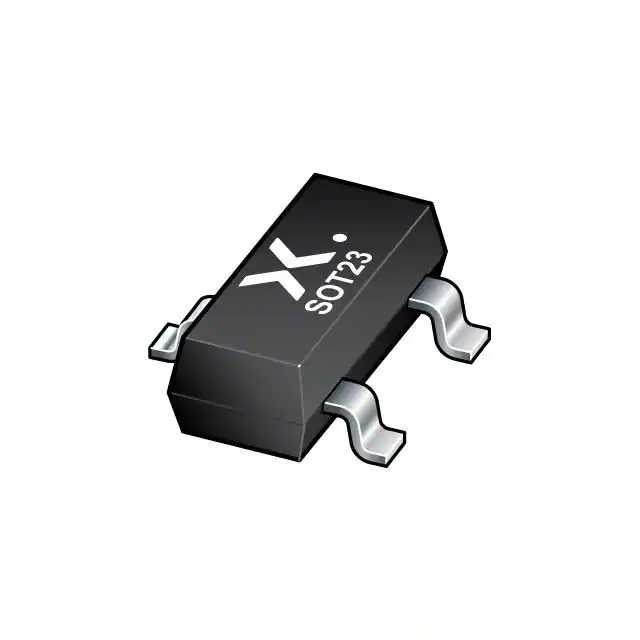

Low-current voltage regulator diodes in a small SOT23 (TO-236AB) Surface-Mounted Device
(SMD) plastic package. 2. Features and benefits
•
•
•
• Total power dissipation: ≤ 250 mW
Tolerance series: approximately ± 5 %
Working voltage range: nominal 1.8 V to 75 V
Specified at a low test current (50 μA), ideal for low bias and portable battery-powered
applications 3. Applications
• Low-current general regulation functions 4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter Conditions Typ Max Unit VF forward voltage IF = 10 mA [1] -0.9 V Ptot total power dissipation Tamb ≤ 25 °C [2] -250 mW [1]
[2] Min Pulse test: tp ≤ 300 μs; δ ≤ 0.02
Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. 5. Pinning information
Table 2. Pinning
Pin
Symbol Description 1 A anode 2 n.c. not connected 3 K cathode Simplified outline Graphic symbol 3 K
A n.c.
aaa-006592 1 2 BZX8450 series Nexperia Low-current voltage regulator diodes 6. Ordering information …
