PDTC143Z series
NPN resistor-equipped transistors;
R1 = 4.7 k, R2 = 47 k
Rev. 8 — 5 December 2011 Product data sheet 1. Product profile
1.1 General description
NPN Resistor-Equipped Transistor (RET) family in Surface-Mounted Device (SMD)
plastic packages.
Table 1. Product overview Type number Package
Nexperia JEITA JEDEC PNP
complement PDTC143ZE SOT416 SC-75 -PDTA143ZE ultra small PDTC143ZM SOT883 SC-101 -PDTA143ZM leadless ultra small PDTC143ZT SOT23 -TO-236AB PDTA143ZT small PDTC143ZU SOT323 SC-70 -very small PDTA143ZU Package
configuration 1.2 Features and benefits 100 mA output current capability Built-in bias resistors Simplifies circuit design Reduces component count Reduces pick and place costs AEC-Q101 qualified 1.3 Applications Digital applications in automotive and
industrial segments Control of IC inputs Cost-saving alternative for BC847/857
series in digital applications Switching loads 1.4 Quick reference data
Table 2. Quick reference data Symbol Parameter Conditions Min Typ Max Unit VCEO collector-emitter voltage open base -50 V IO output current -100 mA R1 bias resistor 1 (input) 3.3 4.7 6.1 k R2/R1 bias resistor ratio 8 10 12 PDTC143Z series Nexperia NPN resistor-equipped transistors; R1 = 4.7 k, R2 = 47 k 2. Pinning information

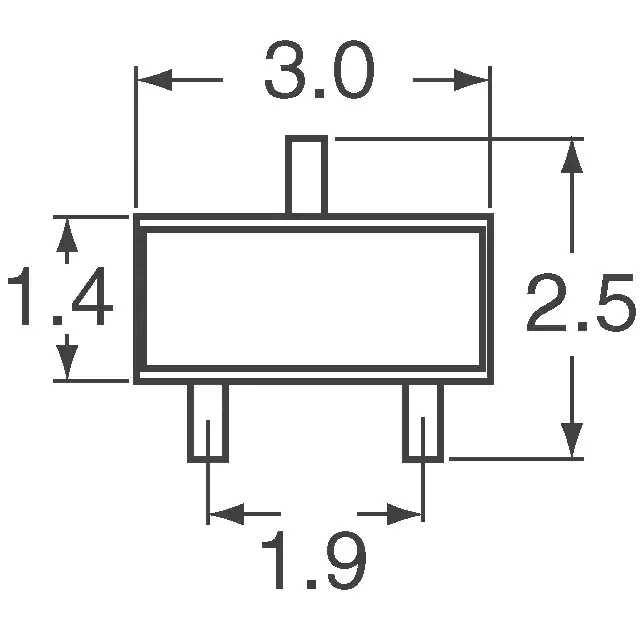

Table 3. Pinning Pin Description Simplified outline Graphic symbol SOT23; SOT323; SOT416
1 input (base) 2 GND (emitter) 3 3 3
R1 output (collector) 1
R2 1 2 2 006aaa144 sym007 SOT883
1 input (base) 2 GND (emitter) 3 1 3 3 R1 2 output (collector) 1
Transparent
top view R2 2
sym007 3. Ordering information
Table 4. Ordering information Type number Package …
