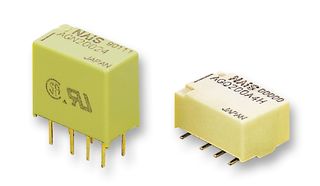

Наименование модели: AGQ200A03
Купить AGQ200A03 на РадиоЛоцман.Цены — от 65 до 19 348 ₽ 24 предложений от 14 поставщиков Реле слабых сигналов - для печатного монтажа 1A 3VDC DPDT NON-LATCHING SMD | |||
INNOVO AGQ200A03Z AGN200A4H 946H-1C-5D AGN200A12Z FTR-B3GA4.5Z-B10 AGQ200A4HZ SOP DIP новый оригинальный | 65 ₽ | ||
AGQ200A03 Panasonic | от 67 ₽ | ||
AGQ200A03 Panasonic | от 68 ₽ | ||
AGQ200A03Z | 19 348 ₽ |
Подробное описание
Производитель: Panasonic
Описание: Реле, DPDT 3 В DC
Краткое содержание документа:
GQ (AGQ)
ULTRA-SMALL PACKAGE FLAT POLARIZED RELAY
TESTING
GQ RELAYS (AGQ)
· Increased packaging density Due to highly efficient magnetic circuit design, leakage flux is reduced and changes in electrical characteristics from components being mounted closetogether are minimized.
This all means a packaging density higher than ever before. · Nominal operating power: 140 mW · Outstanding vibration and shock resistance. Functional shock resistance: 750 m/s2 {75G} Destructive shock resistance: 1,000 m/s2 {100G} Functional vibration resistance: 10 to 55 Hz (at double amplitude of 3.3 mm .130 inch) Destructive vibration resistance: 10 to 55 Hz (at double amplitude of 5 mm .197 inch)
Спецификации:
- Тип реле: General Purpose
- Coil Voltage VDC Nom: 3 В
- Contact Current Max: 1 А
- Contact Voltage AC Nom: 125 В
- Contact Voltage DC Nom: 30 В
- Coil Resistance: 64.2 Ом
- Contact Configuration: DPDT
- Coil Type: DC Coil, Monostable
- Coil Current: 46.7 мА
- Nom Operating Power: 140 мВт
- Relay Mounting: PC Board
- Внешняя длина / высота: 5.4 мм
- Внешняя ширина: 10.6 мм
- External Depth: 7.2 мм
- Contact Current AC Max: 300 мА
- Contact Current DC Max: 1 А
- Contact Voltage AC Max: 125 В
- Contact Voltage DC Max: 30 В
- Mounting Type: SMT
- No. of Poles: 2
- Operating Temperature Max: 85°C
- Series: AGQ
- Temperature Operating Min: -40°C
- Termination Type: SMD
- Type: Single Side Stable
- Contact Resistance: 100 MOhm
- DC Coil Power: 140 мВт
- Insulation Resistance: 1000 MOhm
- Insulation Resistance Voltage: 500 В DC
- Operating Time: 4 мс
- Release Time: 4 мс
- Switch Current Max: 1 А
- Switch Power Max: 30 Вт
- Switching Power Max: 37.5VA
- Terminal Type: A Type
RoHS: есть
