and Models Support Click here to ask an associate for production status of specific part numbers. MAX6069 1μA Ultra-Tiny Shunt Voltage Reference
General Description The MAX6069 ultra-low-power shunt references are ideal
for space-critical and low-power applications. They are

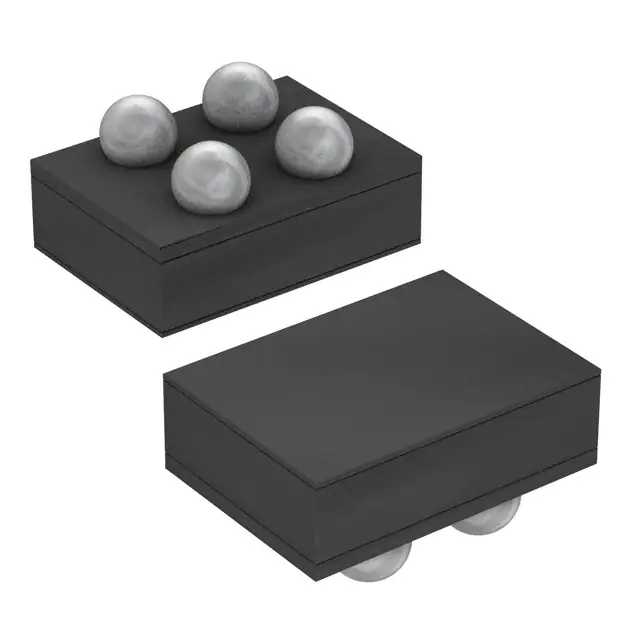

offered in a 4-bump wafer-level package (WLP), and
the minimum operating current is guaranteed to be less
than 1μA. These references feature low temperature
coefficients of less than 20ppm/°C and initial accuracy of
better than 0.2%.
Available with +1.25V, +2.048V, +2.5V, and 3V output
voltages, these references can be used as lowerpower, higher-precision upgrades to the ICL8069, LM385,
LT1004, and LM4040 in much smaller packages. Two
grades are available: A and B. The A grade features a
temperature coefficient of 25ppm/°C over the extended
temperature range of -40°C to +85°C, with an initial
accuracy of 0.2%. Grade B features a temperature
coefficient of 50ppm/°C over the extended temperature
range of -40°C to +85°C, with an initial accuracy of 0.5%.
Their tiny wafer-level packages make these references
ideal for equipment with very small form factors. Benefits and Features ● Wide Operating Current Range: 1μA to 2mA
● 0.88mm x 1.16mm, 4-Bump WLP …
