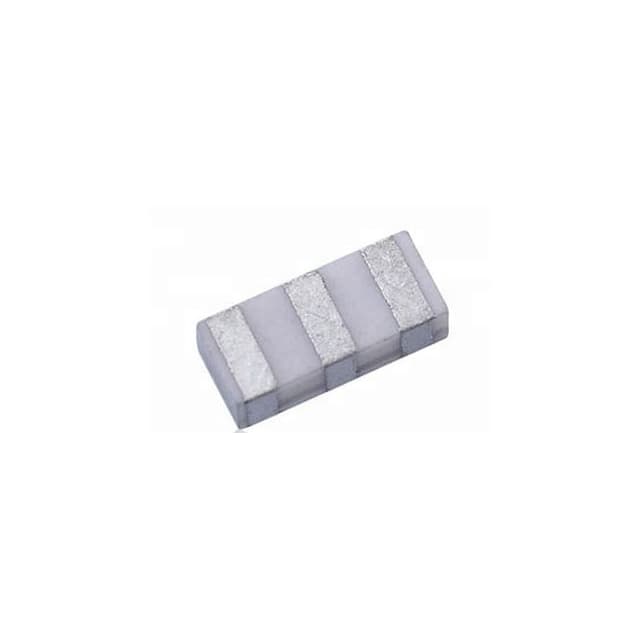

ECS-CTP SMD Ceramic Resonator
The ECS-CTP Series SMD ceramic resonator includes built in
capacitors for reduced component count. The SMD Ceramic
resonator is a low cost frequency control solution when absolute
frequency accuracy is not important. ECS-CTP SMD RESONATOR Request a Sample OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS CONDITIONS ECS-CTP
MIN Frequency 1.84 Frequency Stability
Over -40 ~ +85°C 6.0 x 3.0 mm package
Industry Standard footprint
Extended Temp. Range
Built-in Caps DIMENSIONS (mm) Equivalent Series
Resistance (ESR) MAX 20.00 MHz @ +25°C ± 0.5 % 1.84 ~ 8.00 MHz ± 0.3 % 8.01 ~ 12.00 MHz ± 0.2 % 12.1 ~ 20.00 MHz ±0.3 % 1.84 ~ 2.99 MHz 100 Ω 3.0 ~ 3.49 MHz 50 Ω 3.5 ~ 12.00 MHz 30 Ω 12.1 ~ 20.0 MHz 60 Ω DC, 5 s Max. 100 V DC Voltage 6 V AC Voltage 15 Vp-p Frequency Tolerance •
•
•
• TYP UNITS Withstanding Voltage
Voltage Rating
Insulation Resistance 10V, 1 Min. 500 MΩ Operating Temperature Topr -40 +85 °C Storage Temperature Tstg -55 +85 °C Aging (First Year) @ +25°C ±3°C ±0.1 % Aging (10 Year) @ +25°C ±3°C ±0.3 % Height
1.8 ±0.2 (1.84~3.5 MHz)
1.5 ±0.2 (3.51 ~ 12 MHz)
1.6 ±0.2 (12.1 ~ 20 MHz
PAD CONNECTIONS Figure 1) Top, Side, and Bottom views 1
2
3 In/Out …
