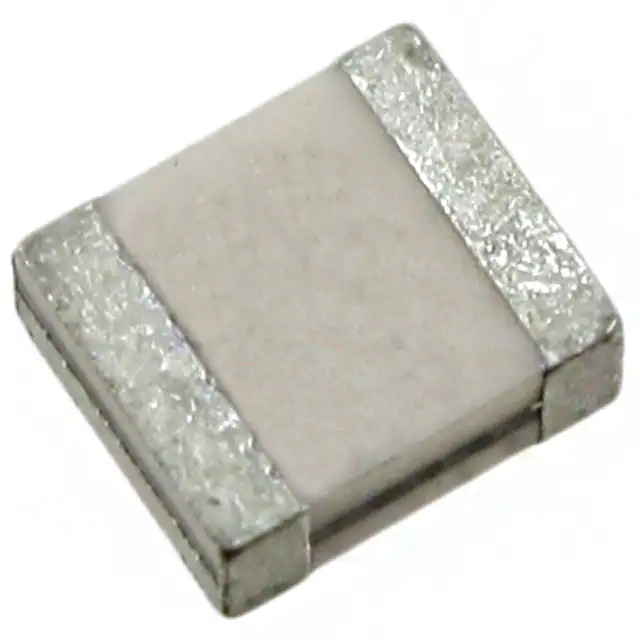

2-PAD INDUSTRIAL GRADE CERAMIC RESONATOR
AWSZT-CP SERIES 6.0 x 3.0 x 1.7mm
RoHS/RoHS II Compliant
Pb in ceramic, exemption (7c-1) FEATURES MSL = 1 APPLICATIONS • Low resonany impedance
• IR reflow capable
• Low cost • Remote controls, microprocessor clocks, mobile
phones, DVD & CD-Roms, Electric appliances
• Consumer electronics STANDARD SPECIFICATIONS
PARAMETERS MINIMUM Frequency Range TYPICAL MAXIMUM UNITS 12.00 MHz 2.00
100
50
30
30 Resonant Impedance (Ro)
Load Capacitance for test circuit (C1=C2)
Frequency Tolerance
Frequency Stability
Withstanding Voltage
(1) D.C. Voltage
Rating Voltage
(2) A.C. Voltage
Insulation Resistance
Operation Temperature
Storage Temperature …
