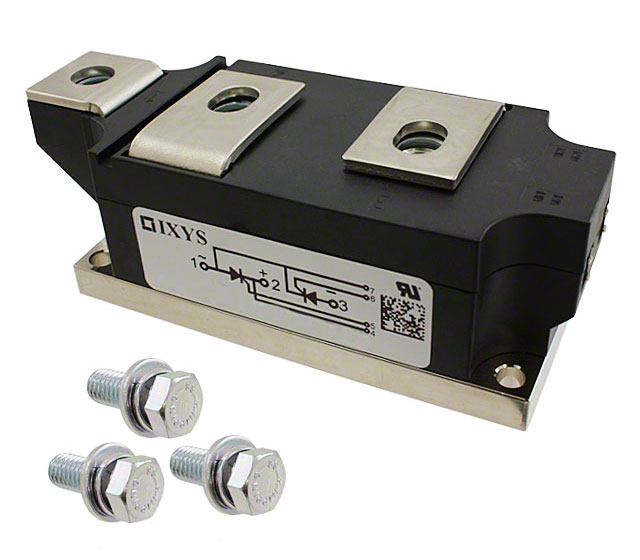

Date: 08.08.2011 IXYS Data Sheet Issue: 2 Thyristor/Diode Modules M## 501
Absolute Maximum Ratings VRRM
VDRM
[V]
MCC MCD MDC 1200 501-12io2 501-12io2 501-12io2 1400 501-14io2 501-14io2 501-14io2 1600 501-16io2 501-16io2 501-16io2 1800 501-18io2 501-18io2 501-18io2 VOLTAGE RATINGS
VDRM
VDSM
VRRM
VRSM Repetitive peak off-state voltage 1)
Non-repetitive peak off-state voltage
Repetitive peak reverse voltage 1) 1) Non-repetitive peak reverse voltage 1) OTHER RATINGS
IT(AV)M
IT(AV)M Maximum average on-state current, TC = 85°C 2)
Maximum average on-state current. TC = 100°C IT(RMS)M Nominal RMS on-state current, TC = 55°C IT(d.c.) D.C. on-state current, TC = 55°C ITSM
ITSM2
2 2) 2) UNITS 1200-1800 V 1300-1900 V 1200-1800 V 1300-1900 V MAXIMUM
LIMITS UNITS 503 A 347 A 1195 A 985 A Peak non-repetitive surge tp = 10 ms, VRM = 60%VRRM 3) 14.5 kA Peak non-repetitive surge tp = 10 ms, VRM ≤ 10V 16.0 2 3) It I t capacity for fusing tp = 10 ms, VRM = 60%VRRM I2 t I2t capacity for fusing tp = 10 ms, VRM ≤ 10 V 3) (di/dt)cr MAXIMUM
LIMITS 3) Critical rate of rise of on-state current (repetitive) 4)
Critical rate of rise of on-state current (non-repetitive) 4) kA
6 1.05×10 A2s 1.28×106 A2s 200 A/µs 400 A/µs VRGM Peak reverse gate voltage 5 V PG(AV) Mean forward gate power 4 W PGM Peak forward gate power 30 W 3000 V 5) VISOL Isolation Voltage Tvj op Operating temperature range -40 to +125 °C Tstg Storage temperature range -40 to +125 °C Notes:
1) De-rating factor of 0.13% per °C is applicable for Tvj below 25°C.
2) Single phase; 50 Hz, 180° half-sinewave.
3) Half-sinewave, 125°C Tvj initial. …
