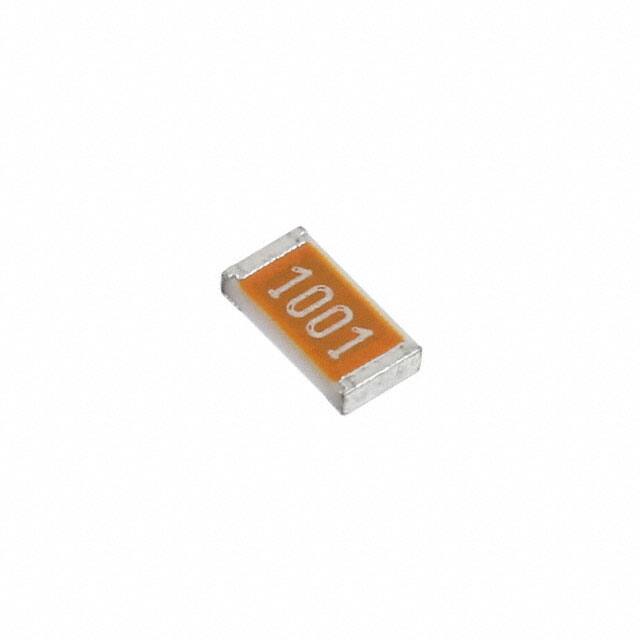

Datasheet Vishay TFPT1206L1001DV — Даташит

TFPT
www.vishay.com Vishay Temperature Dependent Nickel Thin Film Chip Resistor (RTD)
FEATURES
• Alumina substrate base with nickel based PTC
thin film element
• 0603, 0805, and 1206 sizes available
• Available in tape and reel packaging
• Standard R25 tolerances: ± 0.5 %, ± 1 %, ± 5 %
• Operating temperature range: -55 °C to +150 °C
• High stability over the entire temperature range
• C-UL-US recognized, file E148885
• AEC-Q200 qualified (grade 1)
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912 APPLICATIONS LINKS TO ADDITIONAL RESOURCES
Design Tools Temperature compensation and sensing in
• Automotive
• Motor drives
• Lighting LED drivers
• Test and measuring equipment Models QUICK REFERENCE DATA
PARAMETER VALUE DESCRIPTION TFPT0603 Resistance value at 25 °C (1) 100 to 1K Tolerance on R25-value TFPT0805 TFPT1206 100 to 5K 100 to 10K UNIT
Ω ± 0.5; ± 1; ± 5 TCR at 25 °C 4110 Tolerance on TCR at 25 °C (2) ± 400 %
ppm/K Operating temperature range:
at rated power …
