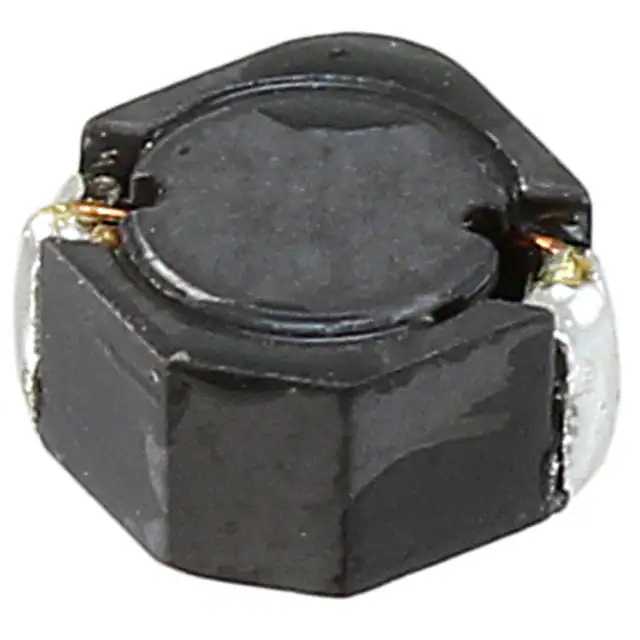

SMD Power Inductor
CDRH4D28C/LD Dimension -[mm] Land patterns -[mm] Schematics Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
Page 1 of 4 www.sumida.com Revised: March-2024 SMD Power Inductor
CDRH4D28C/LD
Electrical Characteristics ※1 Inductance measuring condition: at 100kHz.
※2 The saturation current: This indicates the value of DC current when the inductance decreases to 65% of its initial value.
※3 The temperature rise: The value of DC current when the temperature rise is △T＝40℃ (Ta＝20℃). Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
Page 2 of 4 www.sumida.com Revised: March-2024 SMD Power Inductor
CDRH4D28C/LD
Saturation Current & Temperature Rise Graph L (20℃) △T L (100℃) Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
Page 3 of 4 www.sumida.com Revised: March-2024 SMD Power Inductor
CDRH4D28C/LD
Solder Reflow Condition
Heat Endurance T (℃)
300
250 260℃
230℃ 200 100 50
0 50
0
60 120 180 240 230℃
40s 150 60 100 0 245℃ PEAK 200 10 150 Temperature Chart T (℃)
300
