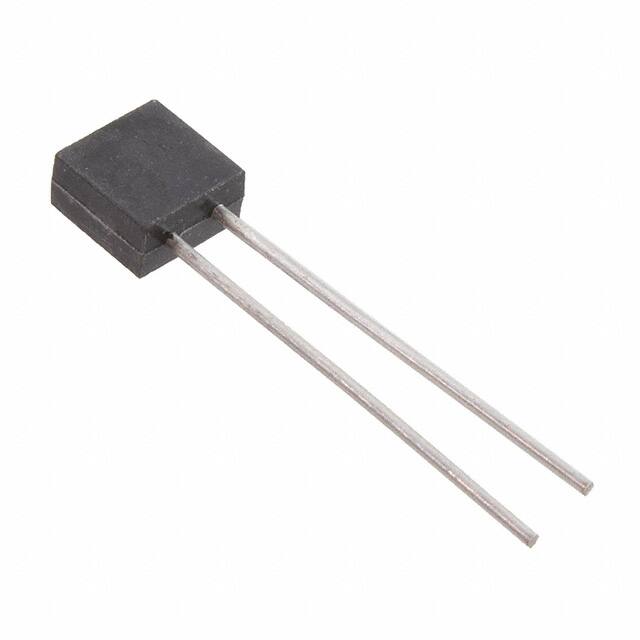

Datasheet Bourns RTDW2N-100RF8 — Даташит

Features Additional Information Click these links for more information: n Formerly a Riedon™ product
n Resistance tolerances to ±1 %
n TCR to ±6000 PPM/°C
n Flame & moisture resistant protective encapsulatio All welded constructio RoHS compliant* RTDW Series – Riedon ™ PRODUCT TECHNICAL INVENTORY SAMPLES
LIBRARY CONTACT Precision Wirewound Temperature Sensors by Bourns Electrical Characteristics 1 Specification Value Standard Resistance Values 100 Ω, 500 Ω, 1 KΩ (referenced at 25 °C, others on request)1 Temperature Range 0 °C to +100 °C Recommended Measurement Current 100 Ω -1 mA to 7 mA | 500 Ω -0.7 mA to 3 mA | 1 KΩ -0.1 mA to 1 mA Response Time (approximate)
100 °C / 25 °C, still air, 50 %, 90 % t0.5 = 40 seconds Stability < 100 PPM/°C / year Terminations 100 % matte tin plating over copper Processing Meets the soldering requirements of MIL-STD-202, Method 208 Operating Conditions RTDW series temperature sensors may not be used in unprotected moist environments or in
aggressive atmospheres. User should verify suitablility on a case by case basis. t0.9 = 100 seconds Other resistance value may be available -please contact Bourns. Product Dimensions
RTDW12 RTDW22 Diameter “D” 3.2 ± 0.13
(.125 ± .005) Length “L” 6.6 ± 0.64
(.260 ± .025)
0.5
(.020) Lead Diameter3 “d” 0.6
(.025) L D (DIA.) d (DIA.) RTDW32 Width “W” 3.6 ± 0.25
(.140 ± .010) Height “H” L 6.4 ± 0.64
W
(.250 ± .025) Length “L” 6.9 ± 0.25
(.270 ± .010) H Other sizes available, please contact Bourns for
additional information. 2 Lead Diameter “d” 0.8
(.032) Lead Spacing “A” 3.2
(.125) Where more than one lead diameter is listed /
the bold value is Standard. 3 D (DIA.) L L Lead length = 24.5 mm (1-inch) min. d (DIA.)
DIMENSIONS: MM
(INCHES) CALIFORNIA WARNING: Can expose you …
