MLX75305
Light-to-Voltage SensorEyeC 1. Features and Benefits

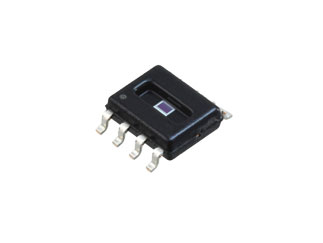

 Converts light intensity to voltage  High linearity  Low temperature dependency  Supply voltage range 3V to 5.5V  Open drain output voltage output  Automotive Cavity SO8 package  Designed for automotive applications  Solder reflow 260degC, MSL3  Automotive qualified AEC-Q100 Grade 1  Operating temperature -40 up to 125degC  RoHS compliant lead-free   3 -Vdd VDD 2. Application Examples
 3. Functional Diagram General
 Ambient Light Sensor  LCD Backlight Sensor  LED Power Monitoring Automotive
 Automatic light dimming of instrument
panels and displays  Electrochrome Dimming  Headlights on/off control Printers/Copiers
 Paper feed detection  Paper size and orientation detection  Toner cartridge presence detection REVISION 9 -OCTOBER 17, 2016
[390107530501] Ee Vref 2 -OUT 1 -Vss Figure 1 4. General Description
The Melexis SensorEyeC series are CMOS
integrated
optical
sensor
ICs
including
photodiode, transimpedance amplifier and output
transistor on one chip. These sensors are designed
for high-volume automotive and non-automotive
applications.
The MLX75305 Light-to-Voltage SensorEyeC
converts ambient or LED light intensity into an
output voltage.
The MLX75305 block diagram is shown above and …
