Datasheet DS2784G+ - Maxim Даташит FUEL GAUGE STANDALONE 2 провод, SMD — Даташит
Наименование модели: DS2784G+
 Купить DS2784G+ на РадиоЛоцман.Цены — от 83 до 1 830 ₽32 предложений от 19 поставщиков Микросхема измерения заряда Li-Ion, Li-Pol батарей, питание 2.5В до 4.6В, последовательный интерфейс | |||
| DS2784G+T Maxim | 137 ₽ | ||
| DS2784G+T&R Maxim | 243 ₽ | ||
| DS2784G+ Analog Devices | от 1 260 ₽ | ||
| DS2784G-CP4+T&R Analog Devices | по запросу | ||
Подробное описание
Производитель: Maxim
Описание: FUEL GAUGE STANDALONE 2 провод, SMD
Скачать Data SheetКраткое содержание документа:
DS2784
1-Cell Stand-Alone Fuel Gauge IC with Li+ Protector and SHA-1 Authentication
www.maxim-ic.com
GENERAL DESCRIPTION
The DS2784 operates from 2.5V to 4.6V for integration in battery packs using a single lithium-ion (Li+) or Li+ polymer cell.
Available capacity is reported in mAh and as a percentage. Safe operation is ensured with the included Li+ protection function and SHA-1-based challenge-response authentication. Precision measurements of voltage, temperature, and current, along with cell characteristics and application parameters are used to estimate capacity. The available capacity registers report a conservative estimate of the amount of charge that can be removed given the current temperature and discharge rate. In addition to the nonvolatile (NV) storage for cell compensation and application parameters, 16 bytes of EEPROM memory is made available for the exclusive use of the host system and/or pack manufacturer. This facilitates battery lot and date tracking or NV storage
Спецификации:
- Battery Management Function: Fuel Gauge, Protector
- Battery Type: Li-Ion / Li-Polymer
- Диапазон напряжения питания: 2.5 В ... 4.6 В

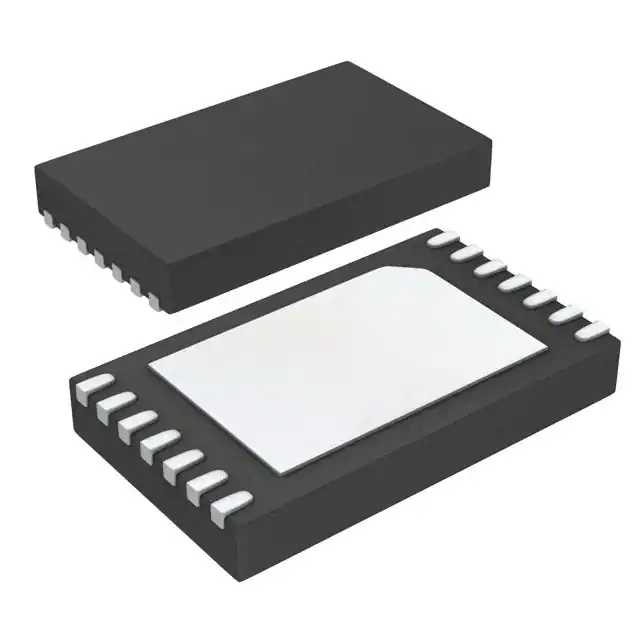

- Battery IC Case Style: TDFN
- Количество выводов: 14
- Рабочий диапазон температрур: -40°C ... +85°C
- SVHC: No SVHC (18-Jun-2010)
- Тип корпуса: TDFN
- Семейство: 2784
- Control Interface: Serial, 1 Wire
- Интерфейс: Serial
- Number of Series Cells: 1
- Способ монтажа: SMD
RoHS: есть
