MPU-60X0 is the world's first integrated 6-axis MotionTracking device that combines a 3-axis gyroscope, 3-axis accelerometer, and a Digital Motion ProcessorTM (DMP) all in a small 4x4x0.9mm package
Страниц / Страница
52 /38 — MPU-6000/MPU-6050 Product Specification. 10 Serial Interface …
MMA8452Q_3v-5v_14-бит 3х осевой датчик наклона и ускорения3-х осевой гироскоп и акселерометр GY-521 сконструирован на чипе MPU-6050. Данный модуль позволяет определить положение...

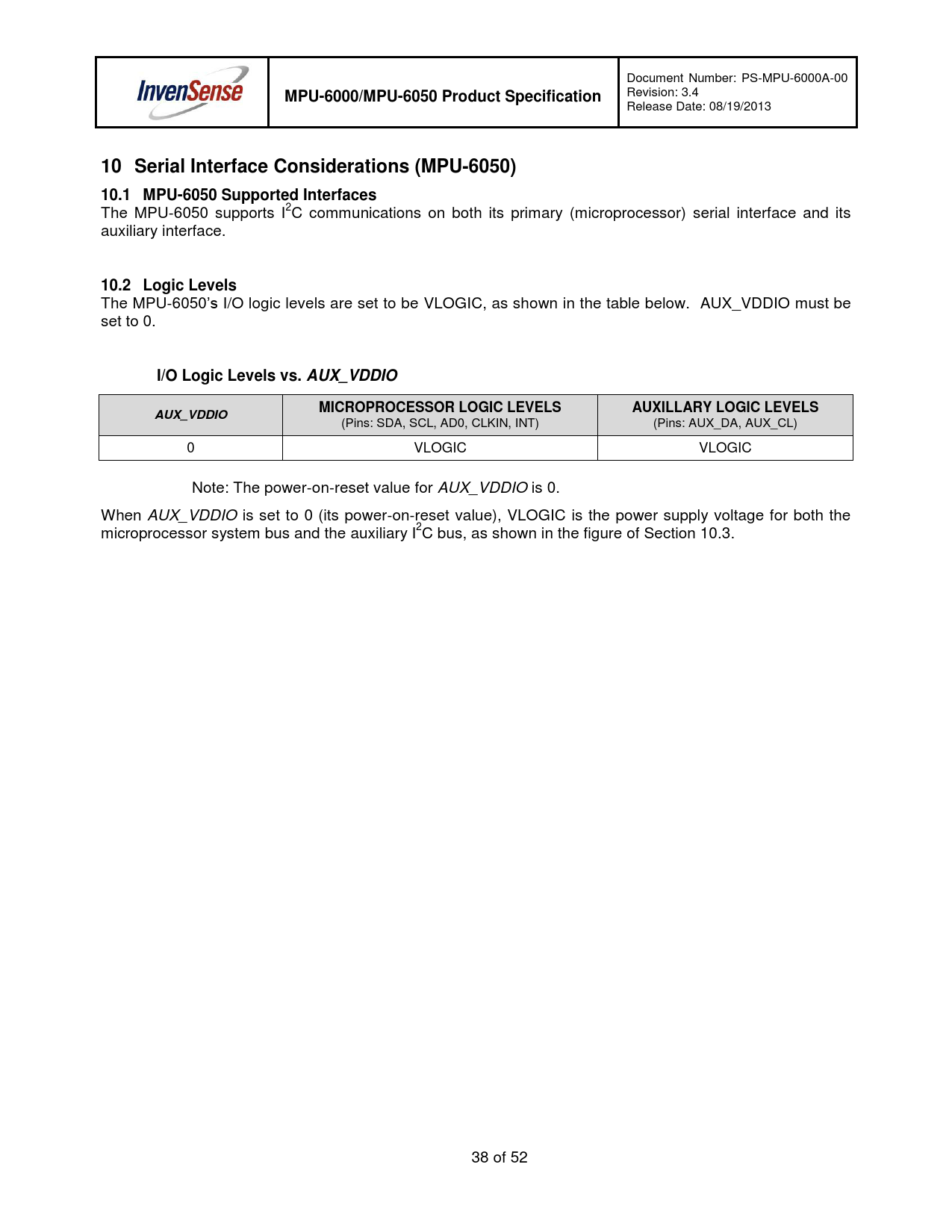

Document Number: PS-MPU-6000A-00 MPU-6000/MPU-6050 Product Specification Revision: 3.4 Release Date: 08/19/2013 10 Serial Interface Considerations (MPU-6050)10.1 MPU-6050 Supported Interfaces The MPU-6050 supports I2C communications on both its primary (microprocessor) serial interface and its auxiliary interface. 10.2 Logic Levels The MPU-6050’s I/O logic levels are set to be VLOGIC, as shown in the table below. AUX_VDDIO must be set to 0. I/O Logic Levels vs. AUX_VDDIOMICROPROCESSOR LOGIC LEVELSAUXILLARY LOGIC LEVELSAUX_VDDIO (Pins: SDA, SCL, AD0, CLKIN, INT) (Pins: AUX_DA, AUX_CL) 0 VLOGIC VLOGIC Note: The power-on-reset value for AUX_VDDIO is 0. When AUX_VDDIO is set to 0 (its power-on-reset value), VLOGIC is the power supply voltage for both the microprocessor system bus and the auxiliary I2C bus, as shown in the figure of Section 10.3. 38 of 52
