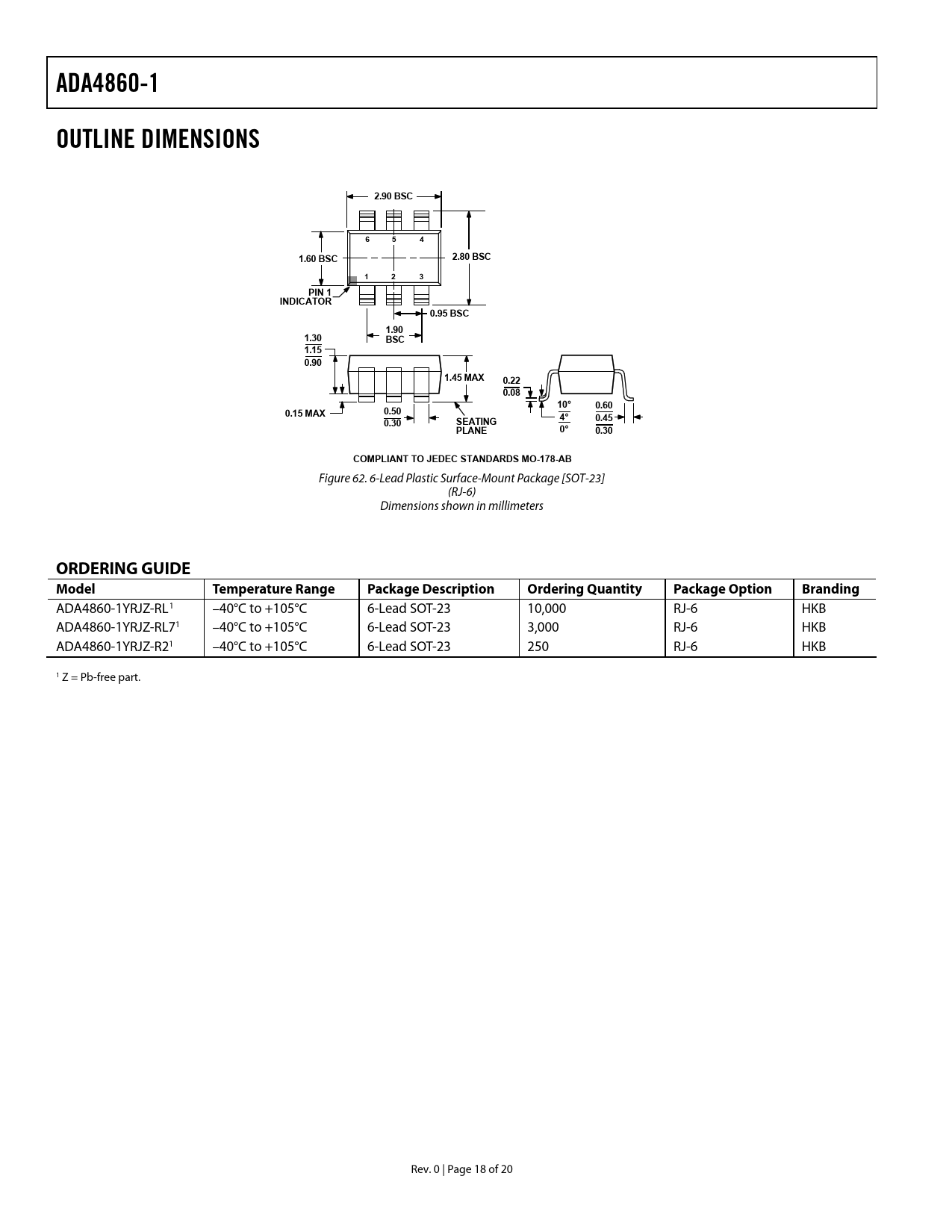

ADA4860-1 OUTLINE DIMENSIONS 2.90 BSC 6 5 4 1.60 BSC 2.80 BSC 1 2 3 PIN 1 INDICATOR 0.95 BSC 1.90 1.30 BSC 1.15 0.90 1.45 MAX 0.22 0.08 10° 0.60 0.50 0.15 MAX 4° 0.45 0.30 SEATING PLANE 0° 0.30 COMPLIANT TO JEDEC STANDARDS MO-178-AB
Figure 62. 6-Lead Plastic Surface-Mount Package [SOT-23] (RJ-6) Dimensions shown in millimeters
ORDERING GUIDE Model Temperature Range Package Description Ordering Quantity Package Option Branding
ADA4860-1YRJZ-RL1 –40°C to +105°C 6-Lead SOT-23 10,000 RJ-6 HKB ADA4860-1YRJZ-RL71 –40°C to +105°C 6-Lead SOT-23 3,000 RJ-6 HKB ADA4860-1YRJZ-R21 –40°C to +105°C 6-Lead SOT-23 250 RJ-6 HKB 1 Z = Pb-free part. Rev. 0 | Page 18 of 20 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Maximum Power Dissipation ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATION INFORMATION POWER SUPPLY BYPASSING FEEDBACK RESISTOR SELECTION DRIVING CAPACITIVE LOADS POWER DOWN PIN VIDEO AMPLIFIER SINGLE-SUPPLY OPERATION OPTIMIZING FLATNESS AND BANDWIDTH LAYOUT AND CIRCUIT BOARD PARASITICS OUTLINE DIMENSIONS ORDERING GUIDE
