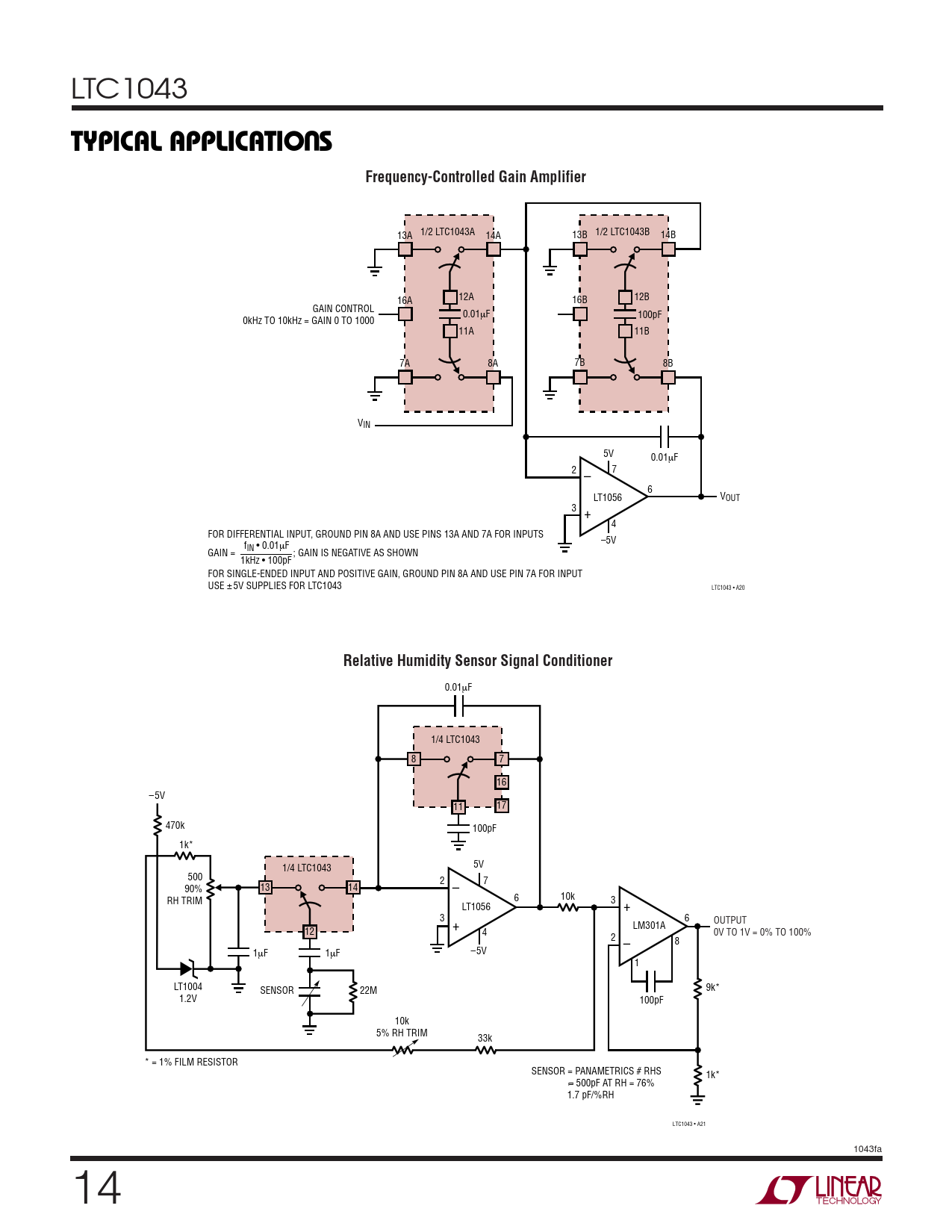

U TYPICAL APPLICATIO S Frequency-Controlled Gain Amplifier
1/2 LTC1043A 1/2 LTC1043B 13A 14A 13B 14B 12A 12B 16A 16B GAIN CONTROL 0.01µF 100pF 0kHz TO 10kHz = GAIN 0 TO 1000 11A 11B 7A 8A 7B 8B VIN 5V 0.01µF 2 7 – 6 LT1056 VOUT 3 + 4 FOR DIFFERENTIAL INPUT, GROUND PIN 8A AND USE PINS 13A AND 7A FOR INPUTS –5V fIN • 0.01µF GAIN = ; GAIN IS NEGATIVE AS SHOWN 1kHz • 100pF FOR SINGLE-ENDED INPUT AND POSITIVE GAIN, GROUND PIN 8A AND USE PIN 7A FOR INPUT USE ± 5V SUPPLIES FOR LTC1043 LTC1043 • A20
Relative Humidity Sensor Signal Conditioner
