LTC2311-12

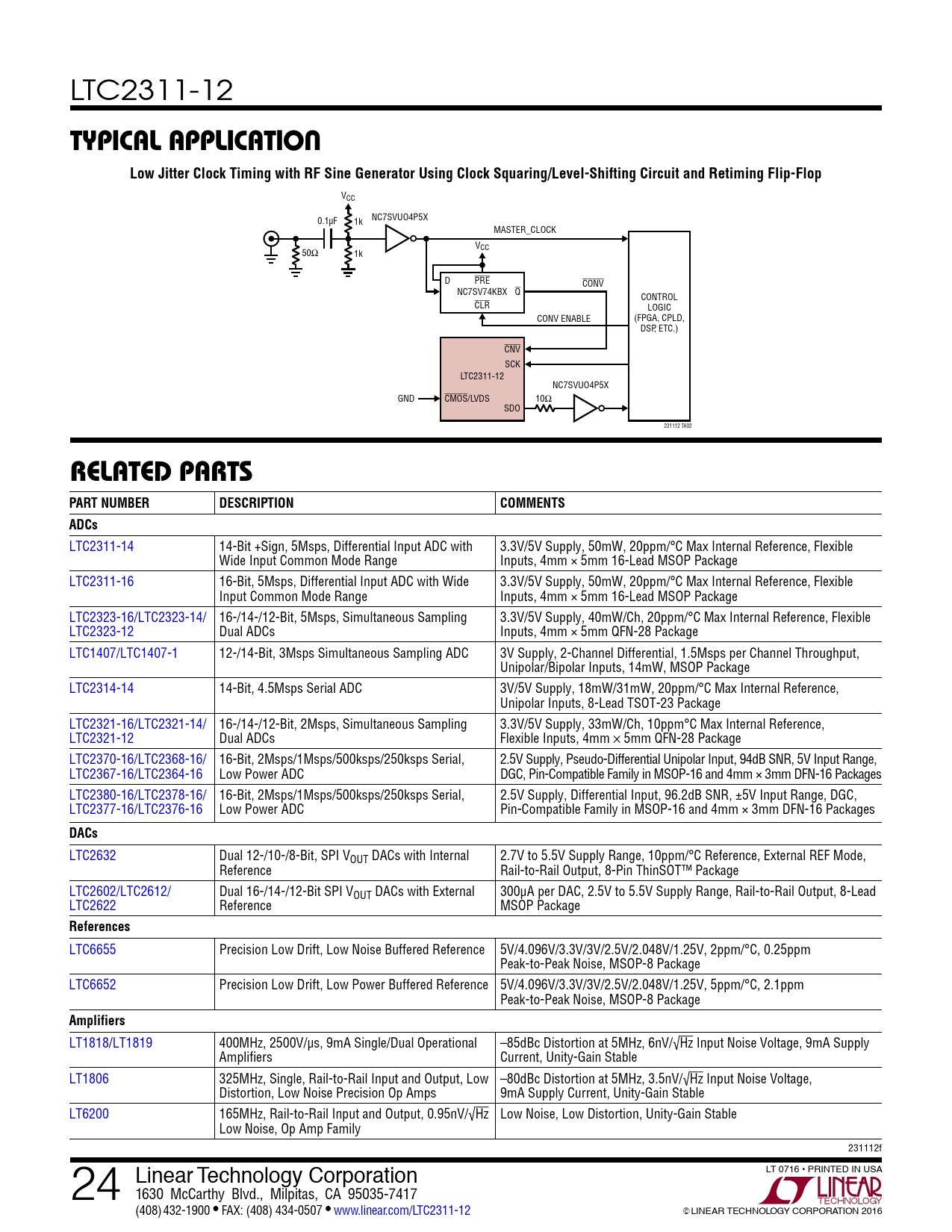

Typical applicaTion Low Jitter Clock Timing with RF Sine Generator Using Clock Squaring/Level-Shifting Circuit and Retiming Flip-Flop
VCC NC7SVUO4P5X 0.1µF 1k MASTER_CLOCK V 50Ω CC 1k D PRE CONV NC7SV74KBX Q CONTROL CLR LOGIC CONV ENABLE (FPGA, CPLD, DSP, ETC.) CNV SCK LTC2311-12 NC7SVUO4P5X GND CMOS/LVDS 10Ω SDO 231112 TA02
relaTeD parTs PART NUMBER DESCRIPTION COMMENTS ADCs
LTC2311-14 14-Bit +Sign, 5Msps, Differential Input ADC with 3.3V/5V Supply, 50mW, 20ppm/°C Max Internal Reference, Flexible Wide Input Common Mode Range Inputs, 4mm × 5mm 16-Lead MSOP Package LTC2311-16 16-Bit, 5Msps, Differential Input ADC with Wide 3.3V/5V Supply, 50mW, 20ppm/°C Max Internal Reference, Flexible Input Common Mode Range Inputs, 4mm × 5mm 16-Lead MSOP Package LTC2323-16/LTC2323-14/ 16-/14-/12-Bit, 5Msps, Simultaneous Sampling 3.3V/5V Supply, 40mW/Ch, 20ppm/°C Max Internal Reference, Flexible LTC2323-12 Dual ADCs Inputs, 4mm × 5mm QFN-28 Package LTC1407/LTC1407-1 12-/14-Bit, 3Msps Simultaneous Sampling ADC 3V Supply, 2-Channel Differential, 1.5Msps per Channel Throughput, Unipolar/Bipolar Inputs, 14mW, MSOP Package LTC2314-14 14-Bit, 4.5Msps Serial ADC 3V/5V Supply, 18mW/31mW, 20ppm/°C Max Internal Reference, Unipolar Inputs, 8-Lead TSOT-23 Package LTC2321-16/LTC2321-14/ 16-/14-/12-Bit, 2Msps, Simultaneous Sampling 3.3V/5V Supply, 33mW/Ch, 10ppm°C Max Internal Reference, LTC2321-12 Dual ADCs Flexible Inputs, 4mm × 5mm QFN-28 Package LTC2370-16/LTC2368-16/ 16-Bit, 2Msps/1Msps/500ksps/250ksps Serial, 2.5V Supply, Pseudo-Differential Unipolar Input, 94dB SNR, 5V Input Range, LTC2367-16/LTC2364-16 Low Power ADC DGC, Pin-Compatible Family in MSOP-16 and 4mm × 3mm DFN-16 Packages LTC2380-16/LTC2378-16/ 16-Bit, 2Msps/1Msps/500ksps/250ksps Serial, 2.5V Supply, Differential Input, 96.2dB SNR, ±5V Input Range, DGC, LTC2377-16/LTC2376-16 Low Power ADC Pin-Compatible Family in MSOP-16 and 4mm × 3mm DFN-16 Packages
DACs
LTC2632 Dual 12-/10-/8-Bit, SPI VOUT DACs with Internal 2.7V to 5.5V Supply Range, 10ppm/°C Reference, External REF Mode, Reference Rail-to-Rail Output, 8-Pin ThinSOT™ Package LTC2602/LTC2612/ Dual 16-/14-/12-Bit SPI VOUT DACs with External 300μA per DAC, 2.5V to 5.5V Supply Range, Rail-to-Rail Output, 8-Lead LTC2622 Reference MSOP Package
References
LTC6655 Precision Low Drift, Low Noise Buffered Reference 5V/4.096V/3.3V/3V/2.5V/2.048V/1.25V, 2ppm/°C, 0.25ppm Peak-to-Peak Noise, MSOP-8 Package LTC6652 Precision Low Drift, Low Power Buffered Reference 5V/4.096V/3.3V/3V/2.5V/2.048V/1.25V, 5ppm/°C, 2.1ppm Peak-to-Peak Noise, MSOP-8 Package
Amplifiers
LT1818/LT1819 400MHz, 2500V/µs, 9mA Single/Dual Operational –85dBc Distortion at 5MHz, 6nV/√Hz Input Noise Voltage, 9mA Supply Amplifiers Current, Unity-Gain Stable LT1806 325MHz, Single, Rail-to-Rail Input and Output, Low –80dBc Distortion at 5MHz, 3.5nV/√Hz Input Noise Voltage, Distortion, Low Noise Precision Op Amps 9mA Supply Current, Unity-Gain Stable LT6200 165MHz, Rail-to-Rail Input and Output, 0.95nV/√Hz Low Noise, Low Distortion, Unity-Gain Stable Low Noise, Op Amp Family 231112f 24 LT 0716 • PRINTED IN USA Linear Technology Corporation 1630 McCarthy Blvd., Milpitas, CA F 9 o 5 r0 m 3 o 5-re7 i4nfo 17 rmation www.linear.com/LTC2311-12 (408) 432-1900 ● FAX: (408) 434-0507 ● www.linear.com/LTC2311-12 LINEAR TECHNOLOGY CORPORATION 2016 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Converter Characteristics Dynamic Accuracy Internal Reference Characteristics Digital Inputs And Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Functional Block Diagram Timing Diagram Applications Information Package Description Typical Application Related Parts
