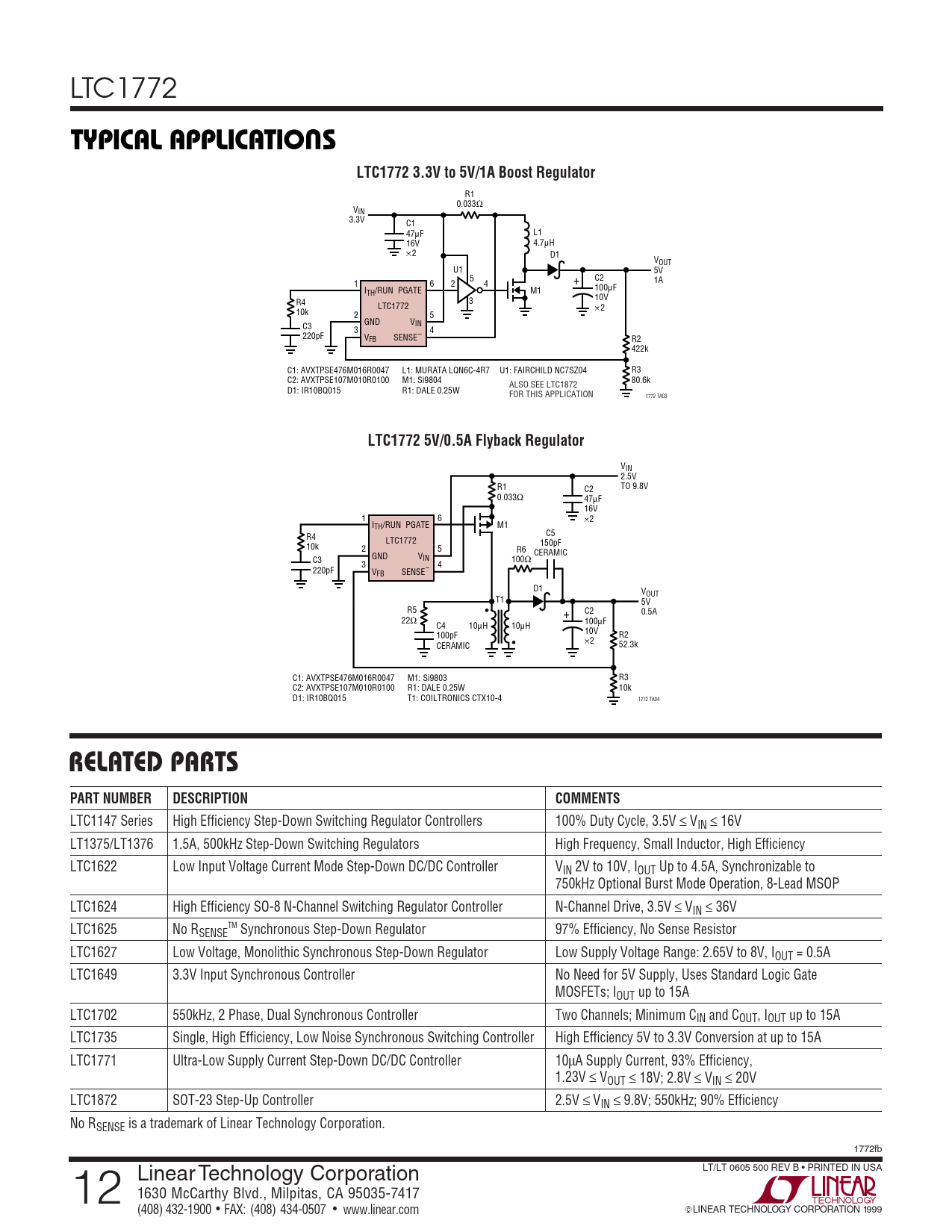

U TYPICAL APPLICATIONS LTC1772 3.3V to 5V/1A Boost Regulator
R1 0.033Ω VIN 3.3V C1 47µF L1 16V 4.7µH ×2 D1 VOUT U1 5V 5 C2 1 6 2 4 1A + I 100µF TH/RUN PGATE M1 10V R4 3 LTC1772 ×2 10k 2 5 GND V C3 IN 3 4 220pF VFB SENSE– R2 422k C1: AVXTPSE476M016R0047 L1: MURATA LQN6C-4R7 U1: FAIRCHILD NC7SZ04 R3 C2: AVXTPSE107M010R0100 M1: Si9804 80.6k ALSO SEE LTC1872 D1: IR10BQ015 R1: DALE 0.25W FOR THIS APPLICATION 1772 TA03
LTC1772 5V/0.5A Flyback Regulator
VIN 2.5V R1 TO 9.8V C2 0.033Ω 47µF 16V 1 6 ×2 ITH/RUN PGATE M1 R4 C5 LTC1772 10k 150pF 2 5 R6 GND V CERAMIC C3 IN 100Ω 3 4 220pF VFB SENSE– D1 VOUT T1 5V R5 • C2 0.5A + 22Ω 100µF C4 10µH 10µH 10V 100pF R2 • ×2 CERAMIC 52.3k C1: AVXTPSE476M016R0047 M1: Si9803 R3 C2: AVXTPSE107M010R0100 R1: DALE 0.25W 10k D1: IR10BQ015 T1: COILTRONICS CTX10-4 1772 TA04
RELATED PARTS PART NUMBER DESCRIPTION COMMENTS
LTC1147 Series High Efficiency Step-Down Switching Regulator Controllers 100% Duty Cycle, 3.5V ≤ VIN ≤ 16V LT1375/LT1376 1.5A, 500kHz Step-Down Switching Regulators High Frequency, Small Inductor, High Efficiency LTC1622 Low Input Voltage Current Mode Step-Down DC/DC Controller VIN 2V to 10V, IOUT Up to 4.5A, Synchronizable to 750kHz Optional Burst Mode Operation, 8-Lead MSOP LTC1624 High Efficiency SO-8 N-Channel Switching Regulator Controller N-Channel Drive, 3.5V ≤ VIN ≤ 36V LTC1625 No R TM SENSE Synchronous Step-Down Regulator 97% Efficiency, No Sense Resistor LTC1627 Low Voltage, Monolithic Synchronous Step-Down Regulator Low Supply Voltage Range: 2.65V to 8V, IOUT = 0.5A LTC1649 3.3V Input Synchronous Controller No Need for 5V Supply, Uses Standard Logic Gate MOSFETs; IOUT up to 15A LTC1702 550kHz, 2 Phase, Dual Synchronous Controller Two Channels; Minimum CIN and COUT, IOUT up to 15A LTC1735 Single, High Efficiency, Low Noise Synchronous Switching Controller High Efficiency 5V to 3.3V Conversion at up to 15A LTC1771 Ultra-Low Supply Current Step-Down DC/DC Controller 10µA Supply Current, 93% Efficiency, 1.23V ≤ VOUT ≤ 18V; 2.8V ≤ VIN ≤ 20V LTC1872 SOT-23 Step-Up Controller 2.5V ≤ VIN ≤ 9.8V; 550kHz; 90% Efficiency No RSENSE is a trademark of Linear Technology Corporation. 1772fb LT/LT 0605 500 REV B • PRINTED IN USA 12 Linear Technology Corporation 1630 McCarthy Blvd., Milpitas, CA 95035-7417 (408) 432-1900 ● FAX: (408) 434-0507 ● www.linear.com © LINEAR TECHNOLOGY CORPORATION 1999
