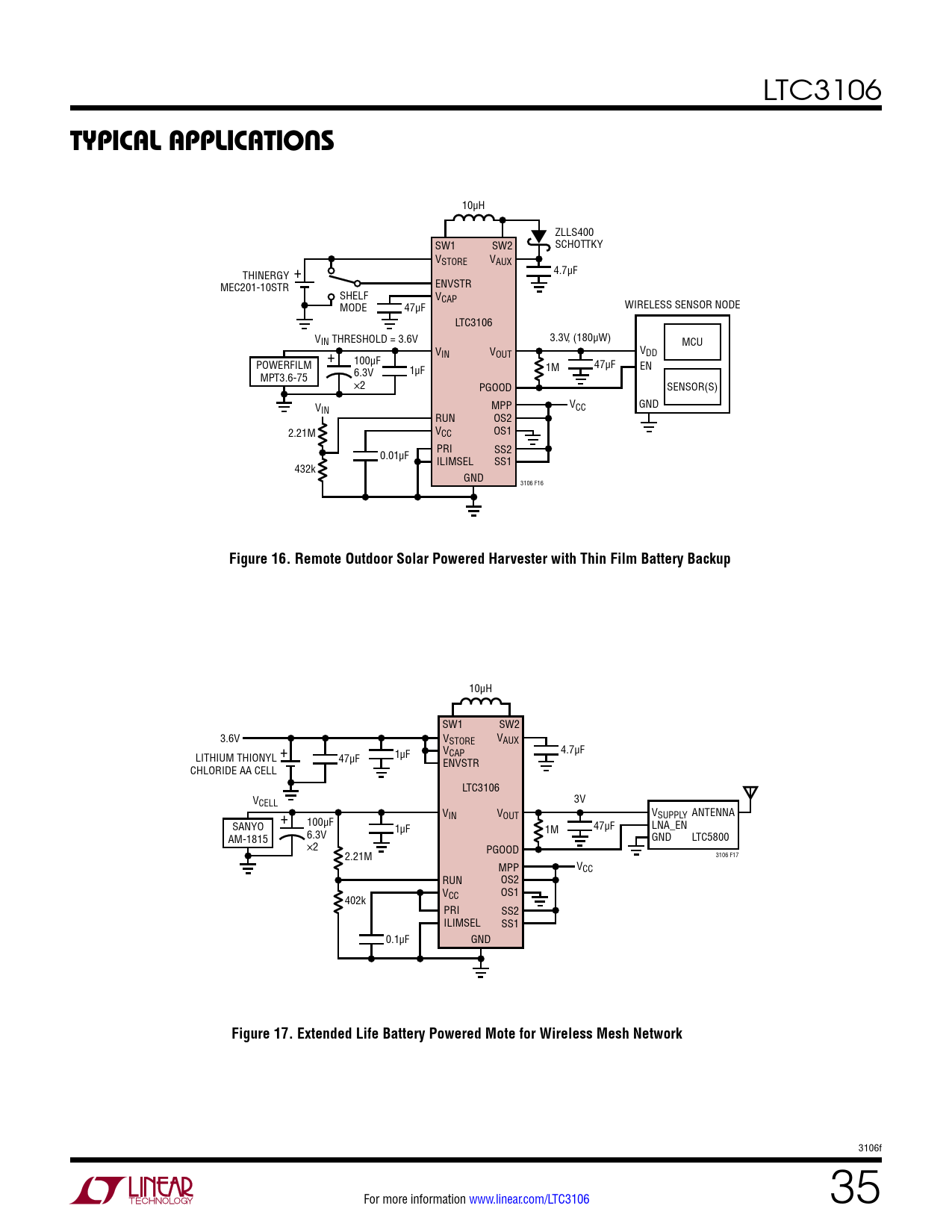

Typical applicaTions. Figure 16. Remote Outdoor Solar Powered Harvester with Thin Film Battery Backup
Модельный ряд для этого даташита
Текстовая версия документа
LTC3106
Typical applicaTions
10µH ZLLS400 SW1 SW2 SCHOTTKY VSTORE VAUX THINERGY + 4.7µF ENVSTR MEC201-10STR SHELF VCAP WIRELESS SENSOR NODE MODE 47µF LTC3106 V 3.3V, (180µW) IN THRESHOLD = 3.6V MCU VIN VOUT VDD + 100µF POWERFILM 1M 47µF EN 6.3V 1µF MPT3.6-75 ×2 PGOOD SENSOR(S) V MPP V GND IN CC RUN OS2 VCC OS1 2.21M PRI SS2 0.01µF ILIMSEL SS1 432k GND 3106 F16
Figure 16. Remote Outdoor Solar Powered Harvester with Thin Film Battery Backup
10µH SW1 SW2 3.6V V V STORE AUX V 4.7µF + 1µF CAP LITHIUM THIONYL 47µF ENVSTR CHLORIDE AA CELL LTC3106 V 3V CELL VIN VOUT + V ANTENNA 100µF SUPPLY SANYO 1µF 1M 47µF LNA_EN 6.3V AM-1815 GND LTC5800 ×2 PGOOD 2.21M 3106 F17 MPP VCC RUN OS2 VCC OS1 402k PRI SS2 ILIMSEL SS1 0.1µF GND
Figure 17. Extended Life Battery Powered Mote for Wireless Mesh Network
3106f For more information www.linear.com/LTC3106 35 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Typical Application Related Parts
