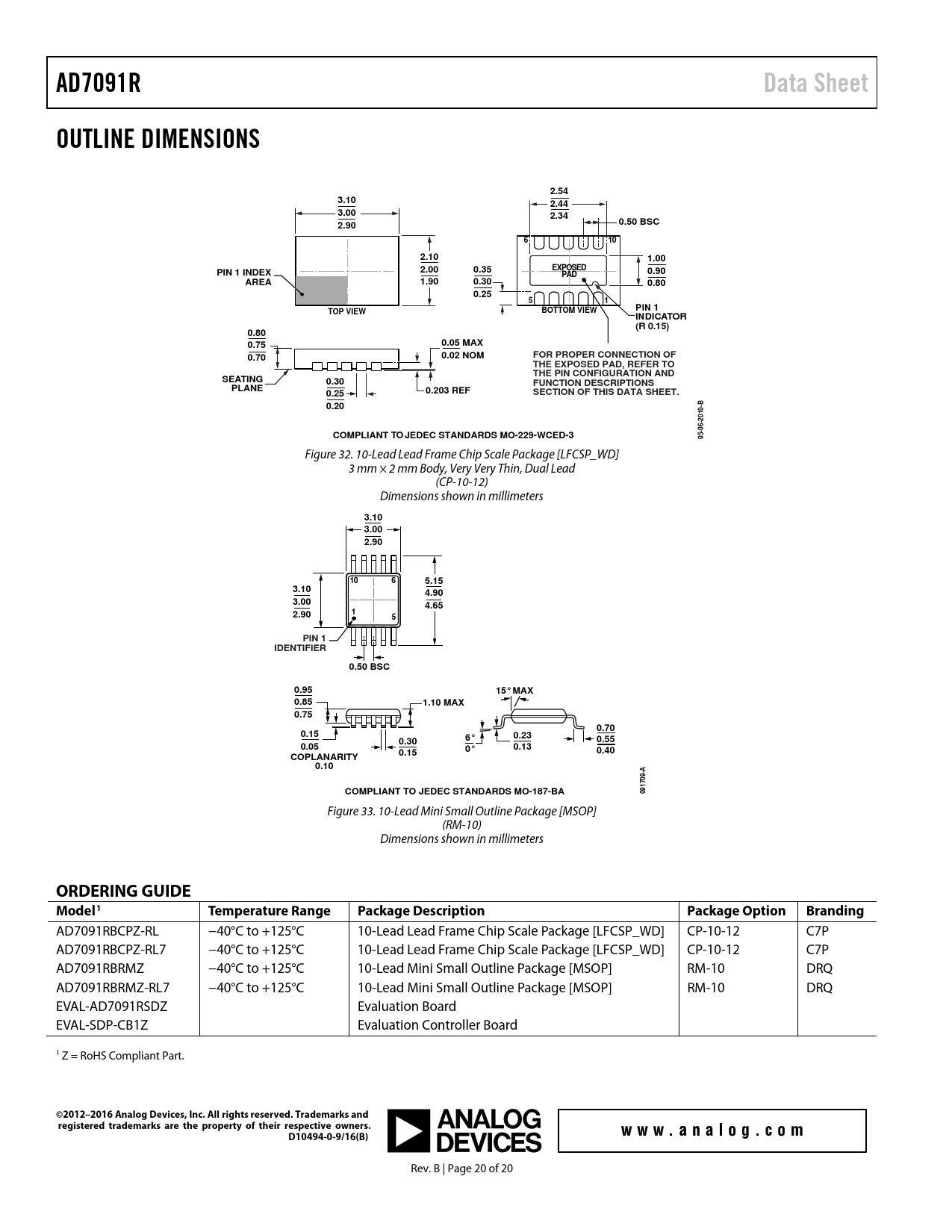

AD7091R Data Sheet OUTLINE DIMENSIONS 2.54 3.10 2.44 3.00 2.34 0.50 BSC 2.90 6 10 2.10 1.00 2.00 0.35 EXPOSED PIN 1 INDEX 0.90 PAD AREA 1.90 0.30 0.80 0.25 5 1 PIN 1 TOP VIEW BOTTOM VIEW INDICATOR (R 0.15) 0.80 0.75 0.05 MAX 0.70 0.02 NOM FOR PROPER CONNECTION OF THE EXPOSED PAD, REFER TO THE PIN CONFIGURATION AND SEATING 0.30 FUNCTION DESCRIPTIONS PLANE 0.25 0.203 REF SECTION OF THIS DATA SHEET. 0.20 B 6-2010- COMPLIANT TO JEDEC STANDARDS MO-229-WCED-3 05-0
Figure 32. 10-Lead Lead Frame Chip Scale Package [LFCSP_WD] 3 mm × 2 mm Body, Very Very Thin, Dual Lead (CP-10-12) Dimensions shown in millimeters
3.10 3.00 2.90 10 6 5.15 3.10 4.90 3.00 4.65 1 2.90 5 PIN 1 IDENTIFIER 0.50 BSC 0.95 15° MAX 0.85 1.10 MAX 0.75 0.70 0.15 6° 0.23 0.55 0.30 0.05 0° 0.13 0.40 0.15 COPLANARITY 0.10 COMPLIANT TO JEDEC STANDARDS MO-187-BA 091709-A
Figure 33. 10-Lead Mini Small Outline Package [MSOP] (RM-10) Dimensions shown in millimeters
ORDERING GUIDE Model1 Temperature Range Package Description Package Option Branding
AD7091RBCPZ-RL −40°C to +125°C 10-Lead Lead Frame Chip Scale Package [LFCSP_WD] CP-10-12 C7P AD7091RBCPZ-RL7 −40°C to +125°C 10-Lead Lead Frame Chip Scale Package [LFCSP_WD] CP-10-12 C7P AD7091RBRMZ −40°C to +125°C 10-Lead Mini Small Outline Package [MSOP] RM-10 DRQ AD7091RBRMZ-RL7 −40°C to +125°C 10-Lead Mini Small Outline Package [MSOP] RM-10 DRQ EVAL-AD7091RSDZ Evaluation Board EVAL-SDP-CB1Z Evaluation Controller Board 1 Z = RoHS Compliant Part.
