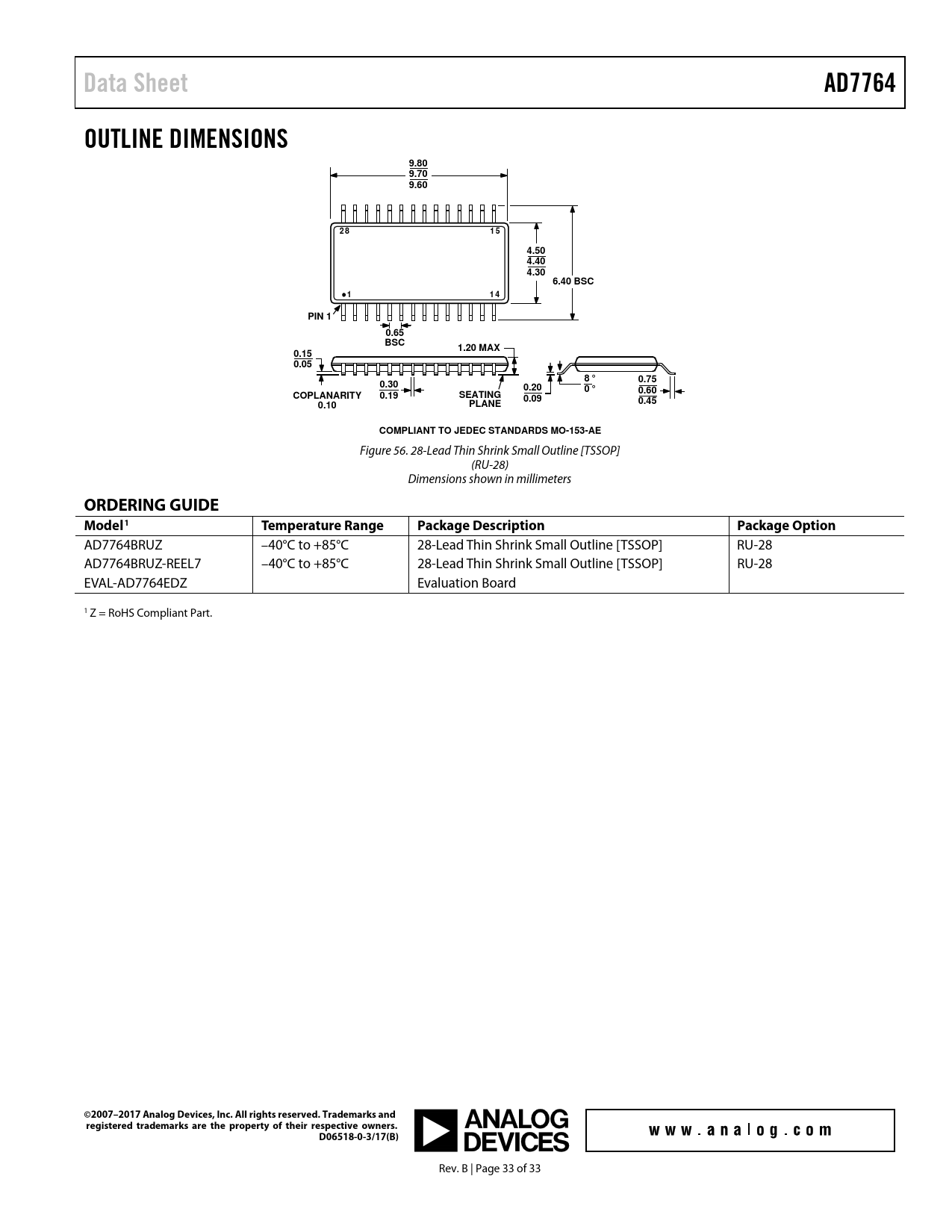

Data Sheet AD7764 OUTLINE DIMENSIONS 9.80 9.70 9.60 2 8 1 5 4.50 4.40 4.30 6.40 BSC 1 1 4 PIN 1 0.65 BSC 1.20 MAX 0.15 0.05 8 ° 0.75 0.30 0.20 0 ° 0.60 COPLANARITY 0.19 SEATING 0.09 0.10 PLANE 0.45 COMPLIANT TO JEDEC STANDARDS MO-153-AE
Figure 56. 28-Lead Thin Shrink Small Outline [TSSOP] (RU-28) Dimensions shown in millimeters
ORDERING GUIDE Model1 Temperature Range Package Description Package Option
AD7764BRUZ –40°C to +85°C 28-Lead Thin Shrink Small Outline [TSSOP] RU-28 AD7764BRUZ-REEL7 –40°C to +85°C 28-Lead Thin Shrink Small Outline [TSSOP] RU-28 EVAL-AD7764EDZ Evaluation Board 1 Z = RoHS Compliant Part.
