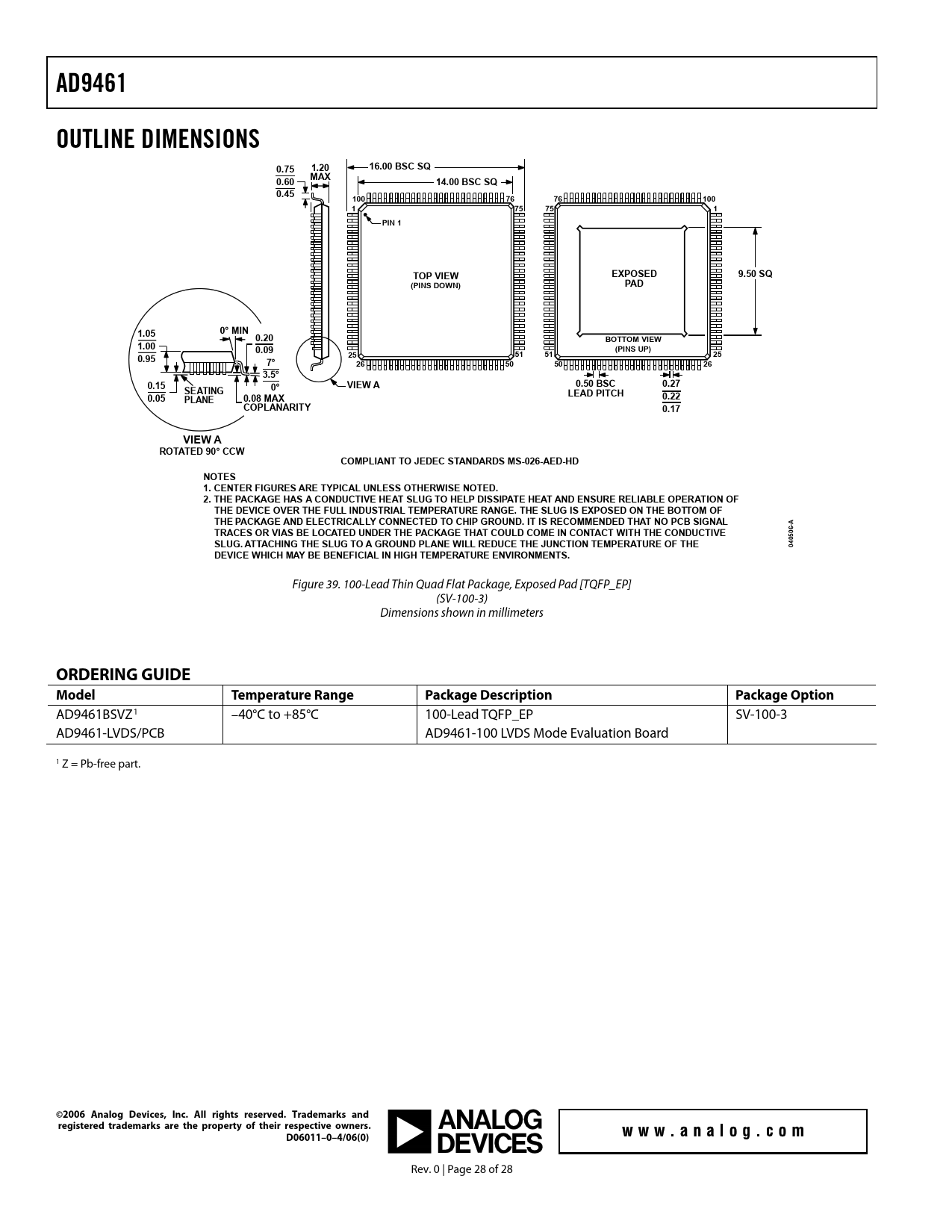

AD9461 OUTLINE DIMENSIONS 1.20 16.00 BSC SQ 0.75 0.60 MAX 14.00 BSC SQ 0.45 100 76 76 100 1 75 75 1 PIN 1 TOP VIEW EXPOSED 9.50 SQ (PINS DOWN) PAD 1.05 0° MIN 0.20 BOTTOM VIEW 1.00 0.09 (PINS UP) 25 51 51 25 0.95 7° 26 50 50 26 3.5° VIEW A 0.50 BSC 0.15 0.27 SEATING 0° LEAD PITCH 0.05 PLANE 0.08 MAX 0.22 COPLANARITY 0.17 VIEW A ROTATED 90° CCW COMPLIANT TO JEDEC STANDARDS MS-026-AED-HD NOTES 1. CENTER FIGURES ARE TYPICAL UNLESS OTHERWISE NOTED. 2. THE PACKAGE HAS A CONDUCTIVE HEAT SLUG TO HELP DISSIPATE HEAT AND ENSURE RELIABLE OPERATION OF THE DEVICE OVER THE FULL INDUSTRIAL TEMPERATURE RANGE. THE SLUG IS EXPOSED ON THE BOTTOM OF THE PACKAGE AND ELECTRICALLY CONNECTED TO CHIP GROUND. IT IS RECOMMENDED THAT NO PCB SIGNAL -A TRACES OR VIAS BE LOCATED UNDER THE PACKAGE THAT COULD COME IN CONTACT WITH THE CONDUCTIVE 06 05 SLUG. ATTACHING THE SLUG TO A GROUND PLANE WILL REDUCE THE JUNCTION TEMPERATURE OF THE 04 DEVICE WHICH MAY BE BENEFICIAL IN HIGH TEMPERATURE ENVIRONMENTS.
Figure 39. 100-Lead Thin Quad Flat Package, Exposed Pad [TQFP_EP] (SV-100-3) Dimensions shown in millimeters
ORDERING GUIDE Model Temperature Range Package Description Package Option
AD9461BSVZ1 –40°C to +85°C 100-Lead TQFP_EP SV-100-3 AD9461-LVDS/PCB AD9461-100 LVDS Mode Evaluation Board 1 Z = Pb-free part.
