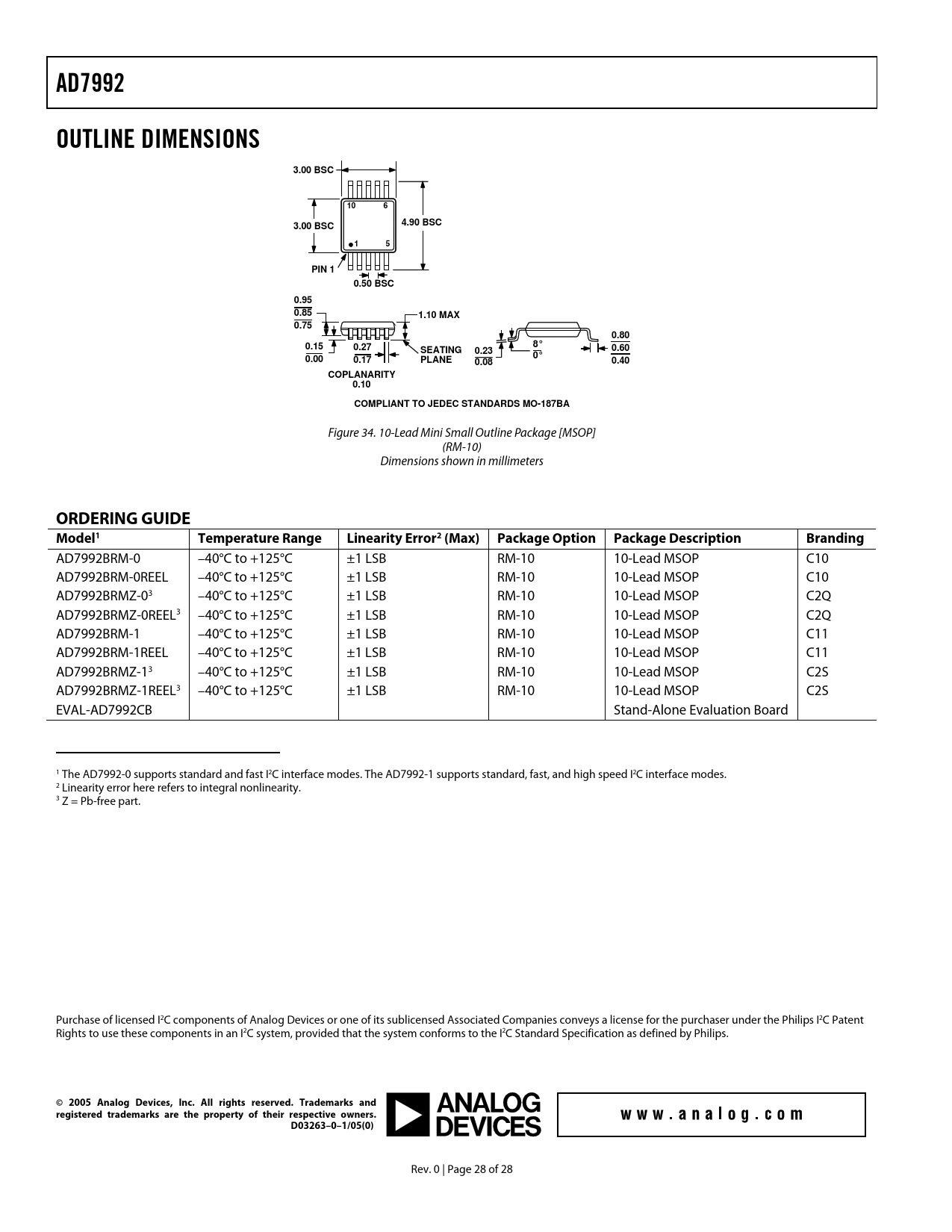

AD7992 OUTLINE DIMENSIONS 3.00 BSC 10 6 3.00 BSC 4.90 BSC 1 5 PIN 1 0.50 BSC 0.95 0.85 1.10 MAX 0.75 0.80 8° 0.15 0.27 SEATING 0.23 0.60 0° 0.00 0.17 PLANE 0.08 0.40 COPLANARITY 0.10 COMPLIANT TO JEDEC STANDARDS MO-187BA
Figure 34. 10-Lead Mini Small Outline Package [MSOP] (RM-10) Dimensions shown in millimeters
ORDERING GUIDE Model1 Temperature Range Linearity Error2 (Max) Package Option Package Description Branding
AD7992BRM-0 –40°C to +125°C ±1 LSB RM-10 10-Lead MSOP C10 AD7992BRM-0REEL –40°C to +125°C ±1 LSB RM-10 10-Lead MSOP C10 AD7992BRMZ-03 –40°C to +125°C ±1 LSB RM-10 10-Lead MSOP C2Q AD7992BRMZ-0REEL3 –40°C to +125°C ±1 LSB RM-10 10-Lead MSOP C2Q AD7992BRM-1 –40°C to +125°C ±1 LSB RM-10 10-Lead MSOP C11 AD7992BRM-1REEL –40°C to +125°C ±1 LSB RM-10 10-Lead MSOP C11 AD7992BRMZ-13 –40°C to +125°C ±1 LSB RM-10 10-Lead MSOP C2S AD7992BRMZ-1REEL3 –40°C to +125°C ±1 LSB RM-10 10-Lead MSOP C2S EVAL-AD7992CB Stand-Alone Evaluation Board 1 The AD7992-0 supports standard and fast I2C interface modes. The AD7992-1 supports standard, fast, and high speed I2C interface modes. 2 Linearity error here refers to integral nonlinearity. 3 Z = Pb-free part. Purchase of licensed I2C components of Analog Devices or one of its sublicensed Associated Companies conveys a license for the purchaser under the Philips I2C Patent Rights to use these components in an I2C system, provided that the system conforms to the I2C Standard Specification as defined by Philips.
© 2005 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D03263–0–1/05(0)
