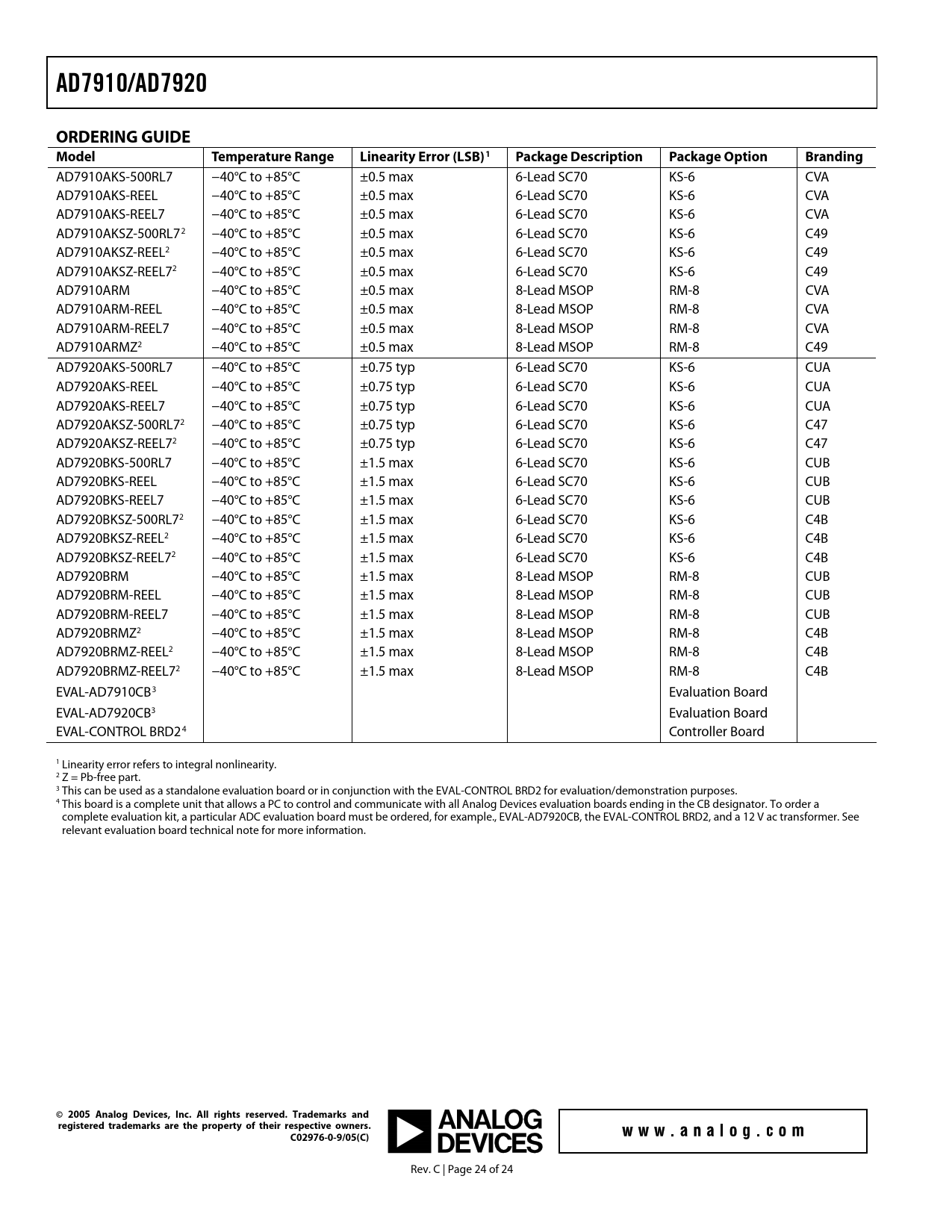

AD7910/AD7920 ORDERING GUIDE Model Temperature Range Linearity Error (LSB)1 Package Description Package Option Branding
AD7910AKS-500RL7 −40°C to +85°C ±0.5 max 6-Lead SC70 KS-6 CVA AD7910AKS-REEL −40°C to +85°C ±0.5 max 6-Lead SC70 KS-6 CVA AD7910AKS-REEL7 −40°C to +85°C ±0.5 max 6-Lead SC70 KS-6 CVA AD7910AKSZ-500RL72 −40°C to +85°C ±0.5 max 6-Lead SC70 KS-6 C49 AD7910AKSZ-REEL2 −40°C to +85°C ±0.5 max 6-Lead SC70 KS-6 C49 AD7910AKSZ-REEL72 −40°C to +85°C ±0.5 max 6-Lead SC70 KS-6 C49 AD7910ARM −40°C to +85°C ±0.5 max 8-Lead MSOP RM-8 CVA AD7910ARM-REEL −40°C to +85°C ±0.5 max 8-Lead MSOP RM-8 CVA AD7910ARM-REEL7 −40°C to +85°C ±0.5 max 8-Lead MSOP RM-8 CVA AD7910ARMZ2 −40°C to +85°C ±0.5 max 8-Lead MSOP RM-8 C49 AD7920AKS-500RL7 −40°C to +85°C ±0.75 typ 6-Lead SC70 KS-6 CUA AD7920AKS-REEL −40°C to +85°C ±0.75 typ 6-Lead SC70 KS-6 CUA AD7920AKS-REEL7 −40°C to +85°C ±0.75 typ 6-Lead SC70 KS-6 CUA AD7920AKSZ-500RL72 −40°C to +85°C ±0.75 typ 6-Lead SC70 KS-6 C47 AD7920AKSZ-REEL72 −40°C to +85°C ±0.75 typ 6-Lead SC70 KS-6 C47 AD7920BKS-500RL7 −40°C to +85°C ±1.5 max 6-Lead SC70 KS-6 CUB AD7920BKS-REEL −40°C to +85°C ±1.5 max 6-Lead SC70 KS-6 CUB AD7920BKS-REEL7 −40°C to +85°C ±1.5 max 6-Lead SC70 KS-6 CUB AD7920BKSZ-500RL72 −40°C to +85°C ±1.5 max 6-Lead SC70 KS-6 C4B AD7920BKSZ-REEL2 −40°C to +85°C ±1.5 max 6-Lead SC70 KS-6 C4B AD7920BKSZ-REEL72 −40°C to +85°C ±1.5 max 6-Lead SC70 KS-6 C4B AD7920BRM −40°C to +85°C ±1.5 max 8-Lead MSOP RM-8 CUB AD7920BRM-REEL −40°C to +85°C ±1.5 max 8-Lead MSOP RM-8 CUB AD7920BRM-REEL7 −40°C to +85°C ±1.5 max 8-Lead MSOP RM-8 CUB AD7920BRMZ2 −40°C to +85°C ±1.5 max 8-Lead MSOP RM-8 C4B AD7920BRMZ-REEL2 −40°C to +85°C ±1.5 max 8-Lead MSOP RM-8 C4B AD7920BRMZ-REEL72 −40°C to +85°C ±1.5 max 8-Lead MSOP RM-8 C4B EVAL-AD7910CB3 Evaluation Board EVAL-AD7920CB3 Evaluation Board EVAL-CONTROL BRD24 Controller Board 1 Linearity error refers to integral nonlinearity. 2 Z = Pb-free part. 3 This can be used as a standalone evaluation board or in conjunction with the EVAL-CONTROL BRD2 for evaluation/demonstration purposes. 4 This board is a complete unit that allows a PC to control and communicate with all Analog Devices evaluation boards ending in the CB designator. To order a complete evaluation kit, a particular ADC evaluation board must be ordered, for example., EVAL-AD7920CB, the EVAL-CONTROL BRD2, and a 12 V ac transformer. See relevant evaluation board technical note for more information.
