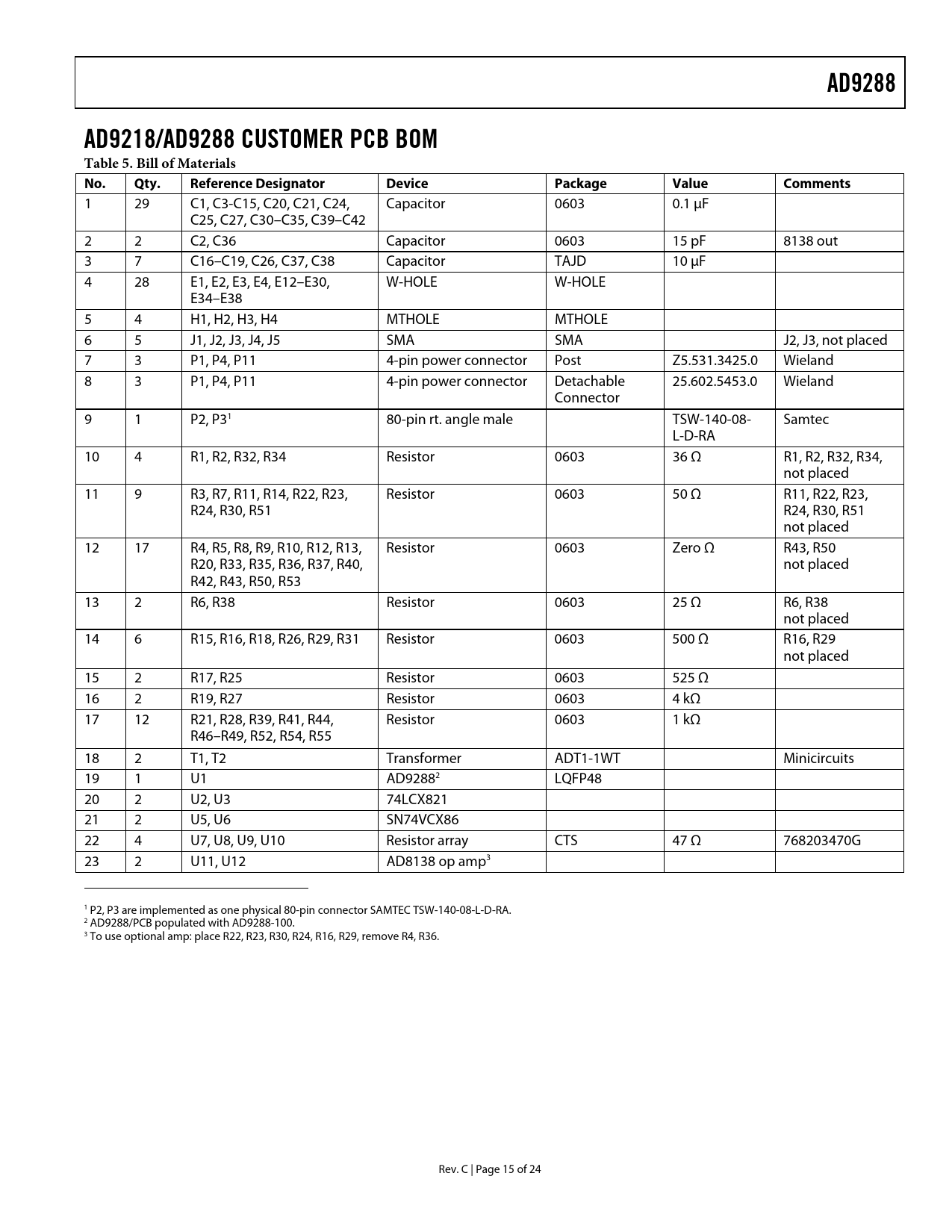

AD9288 AD9218/AD9288 CUSTOMER PCB BOM Table 5. Bill of Materials No. Qty. Reference Designator Device Package Value Comments
1 29 C1, C3-C15, C20, C21, C24, Capacitor 0603 0.1 µF C25, C27, C30–C35, C39–C42 2 2 C2, C36 Capacitor 0603 15 pF 8138 out 3 7 C16–C19, C26, C37, C38 Capacitor TAJD 10 µF 4 28 E1, E2, E3, E4, E12–E30, W-HOLE W-HOLE E34–E38 5 4 H1, H2, H3, H4 MTHOLE MTHOLE 6 5 J1, J2, J3, J4, J5 SMA SMA J2, J3, not placed 7 3 P1, P4, P11 4-pin power connector Post Z5.531.3425.0 Wieland 8 3 P1, P4, P11 4-pin power connector Detachable 25.602.5453.0 Wieland Connector 9 1 P2, P31 80-pin rt. angle male TSW-140-08- Samtec L-D-RA 10 4 R1, R2, R32, R34 Resistor 0603 36 Ω R1, R2, R32, R34, not placed 11 9 R3, R7, R11, R14, R22, R23, Resistor 0603 50 Ω R11, R22, R23, R24, R30, R51 R24, R30, R51 not placed 12 17 R4, R5, R8, R9, R10, R12, R13, Resistor 0603 Zero Ω R43, R50 R20, R33, R35, R36, R37, R40, not placed R42, R43, R50, R53 13 2 R6, R38 Resistor 0603 25 Ω R6, R38 not placed 14 6 R15, R16, R18, R26, R29, R31 Resistor 0603 500 Ω R16, R29 not placed 15 2 R17, R25 Resistor 0603 525 Ω 16 2 R19, R27 Resistor 0603 4 kΩ 17 12 R21, R28, R39, R41, R44, Resistor 0603 1 kΩ R46–R49, R52, R54, R55 18 2 T1, T2 Transformer ADT1-1WT Minicircuits 19 1 U1 AD92882 LQFP48 20 2 U2, U3 74LCX821 21 2 U5, U6 SN74VCX86 22 4 U7, U8, U9, U10 Resistor array CTS 47 Ω 768203470G 23 2 U11, U12 AD8138 op amp3 1 P2, P3 are implemented as one physical 80-pin connector SAMTEC TSW-140-08-L-D-RA. 2 AD9288/PCB populated with AD9288-100. 3 To use optional amp: place R22, R23, R30, R24, R16, R29, remove R4, R36. Rev. C | Page 15 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM SPECIFICATIONS EXPLANATION OF TEST LEVELS TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION USING THE AD9288 ENCODE INPUT DIGITAL OUTPUTS ANALOG INPUT VOLTAGE REFERENCE TIMING USER-SELECTABLE OPTIONS AD9218/AD9288 CUSTOMER PCB BOM EVALUATION BOARD POWER CONNECTOR ANALOG INPUTS VOLTAGE REFERENCE CLOCKING DATA OUTPUTS DATA FORMAT/GAIN TIMING TROUBLESHOOTING OUTLINE DIMENSIONS ORDERING GUIDE
