Datasheet ADXL1001, ADXL1002 (Analog Devices)

ПроизводительAnalog Devices
ОписаниеLow Noise, High Frequency +/-50g MEMS Accelerometer
Страниц / Страница14 / 1 — Low Noise, High Frequency MEMS. Accelerometers. Data Sheet. ADXL1001. …
Формат / Размер файлаPDF / 763 Кб
Язык документаанглийский

Low Noise, High Frequency MEMS. Accelerometers. Data Sheet. ADXL1001. /ADXL1002. FEATURES. FUNCTIONAL BLOCK DIAGRAM

Datasheet ADXL1001, ADXL1002 Analog Devices

ADXL1002 Купить ЦенаКупить ADXL1002 на РадиоЛоцман.Цены — от 3 231 до 514 178
8 предложений от 7 поставщиков
Акселерометры Low Noise 21kHz 50g 1-axis accel
Элитан
Россия
ADXL1002BCPZ
Analog Devices
3 231 ₽
Триема
Россия
ADXL1002BCPZ
Analog Devices
4 498 ₽
T-electron
Россия и страны СНГ
ADXL1002BCPZ
514 178 ₽
Зенер
Россия и страны ТС
ADXL1002BCPZ
Analog Devices
по запросу

Модельный ряд для этого даташита

Текстовая версия документа

Low Noise, High Frequency MEMS Accelerometers Data Sheet ADXL1001 /ADXL1002 FEATURES FUNCTIONAL BLOCK DIAGRAM Single in plane axis accelerometer with analog output VDD STANDBY Linear frequency response range from dc to 11 kHz (3 dB point) Resonant frequency of 21 kHz ADXL1001/ADXL1002 TIMING Ultralow noise density GENERATOR 30 µg /√Hz in ±100 g range (ADXL1001) 25 µg /√Hz in ±50 g range (ADXL1002) OUTPUT Overrange sensing plus dc coupling allows fast recovery time MOD SENSOR AMP DEMOD VOUT AMPLIFIER Complete electromechanical self-test Sensitivity performance Sensitivity stability over temperature 5% OVERRANGE DETECTION OR Linearity to ±0.1% of full-scale range SELF TEST Cross axis sensitivity ±1% (ZX), ±1% (YX), Single-supply operation Output voltage ratiometric to supply
001
ST VSS Low power consumption 1.0 mA
07510- Figure 1.

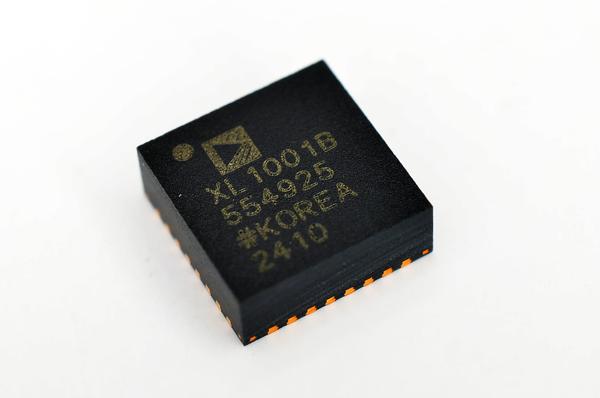

Power saving standby operation mode with fast recovery RoHS compliant −40°C to +125°C temperature range 5 mm × 5 mm × 1.80 mm LFCSP package APPLICATIONS Condition monitoring Predictive maintenance Asset health Test and measurement Health usage monitoring system (HUMS) GENERAL DESCRIPTION
The ADXL1001/ADXL1002 deliver ultralow noise density over The ADXL1001/ADXL1002 have an integrated ful electrostatic an extended frequency range with two full-scale range options, self test (ST) function and an overrange (OR) indicator that and are optimized for industrial condition monitoring. The allow advanced system level features and are useful for ADXL1001 (±100 g) and the ADXL1002 (±50 g) have typical embedded applications. With low power and single-supply noise densities of 30 µg/√Hz and 25 µg/√Hz, respectively. Both operation of 3.3 V to 5.25 V, the ADXL1001/ADXL1002 also accelerometer devices have stable and repeatable sensitivity, enable wireless sensing product design. The ADXL1001/ which is immune to external shocks up to 10,000 g. ADXL1002 are available in a 5 mm × 5 mm × 1.80 mm LFCSP package, and are rated for operation over a −40°C to +125°C temperature range.
Rev. 0 Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2017 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE RECOMMENDED SOLDERING PROFILE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION MECHANICAL DEVICE OPERATION OPERATING MODES Measurement Mode Standby BANDWIDTH APPLICATIONS INFORMATION APPLICATION CIRCUIT ON DEMAND SELF TEST RATIOMETRIC OUTPUT VOLTAGE INTERFACING ANALOG OUTPUT BELOW 10 kHz INTERFACING ANALOG OUTPUT BEYOND 10 kHz OVERRANGE MECHANICAL CONSIDERATIONS FOR MOUNTING LAYOUT AND DESIGN RECOMMENDATIONS OUTLINE DIMENSIONS ORDERING GUIDE
