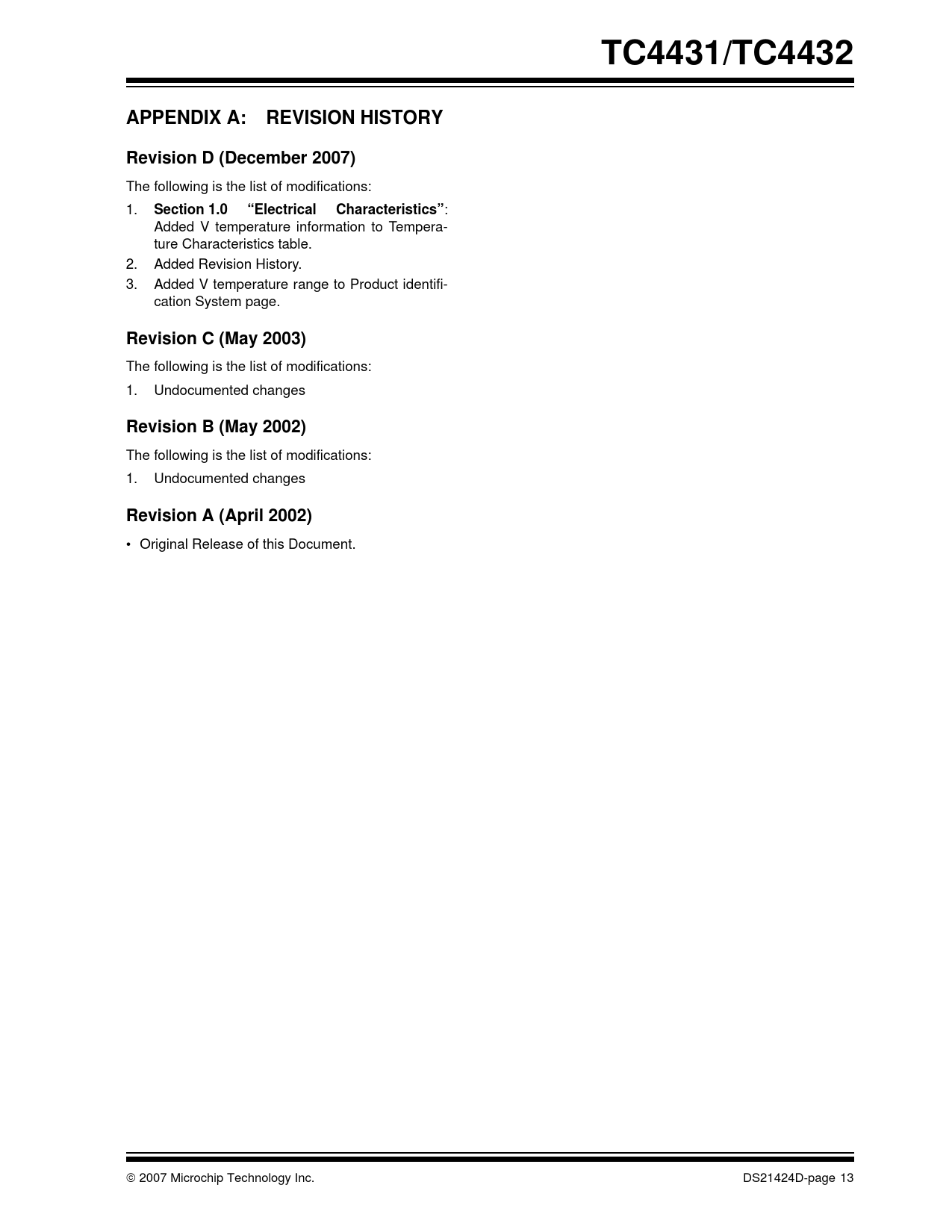

TC4431/TC4432 APPENDIX A: REVISION HISTORY Revision D (December 2007)
The following is the list of modifications: 1.
Section 1.0 “Electrical Characteristics”
: Added V temperature information to Tempera- ture Characteristics table. 2. Added Revision History. 3. Added V temperature range to Product identifi- cation System page.
Revision C (May 2003)
The following is the list of modifications: 1. Undocumented changes
Revision B (May 2002)
The following is the list of modifications: 1. Undocumented changes
Revision A (April 2002)
• Original Release of this Document. © 2007 Microchip Technology Inc. DS21424D-page 13 Document Outline 1.0 Electrical Characteristics 2.0 Typical Performance Curves FIGURE 2-1: Supply Current vs. Capacitive Load. FIGURE 2-2: Input Current vs. Input Voltage. FIGURE 2-3: Rise/Fall Time vs. VDD. FIGURE 2-4: tD1 and tD2 Delay vs. VDD. 3.0 Pin Descriptions TABLE 3-1: Pin Function Table 3.1 Supply Input (VDD) 3.2 Control Input (IN) 3.3 Lockout Disable (LOCK DIS) 3.4 Ground (GND) 3.5 Drive Output (OUT) 4.0 Applications Information FIGURE 4-1: Switching Time Test Circuit. 5.0 Packaging Information 5.1 Package Marking Information
