LTM4630A

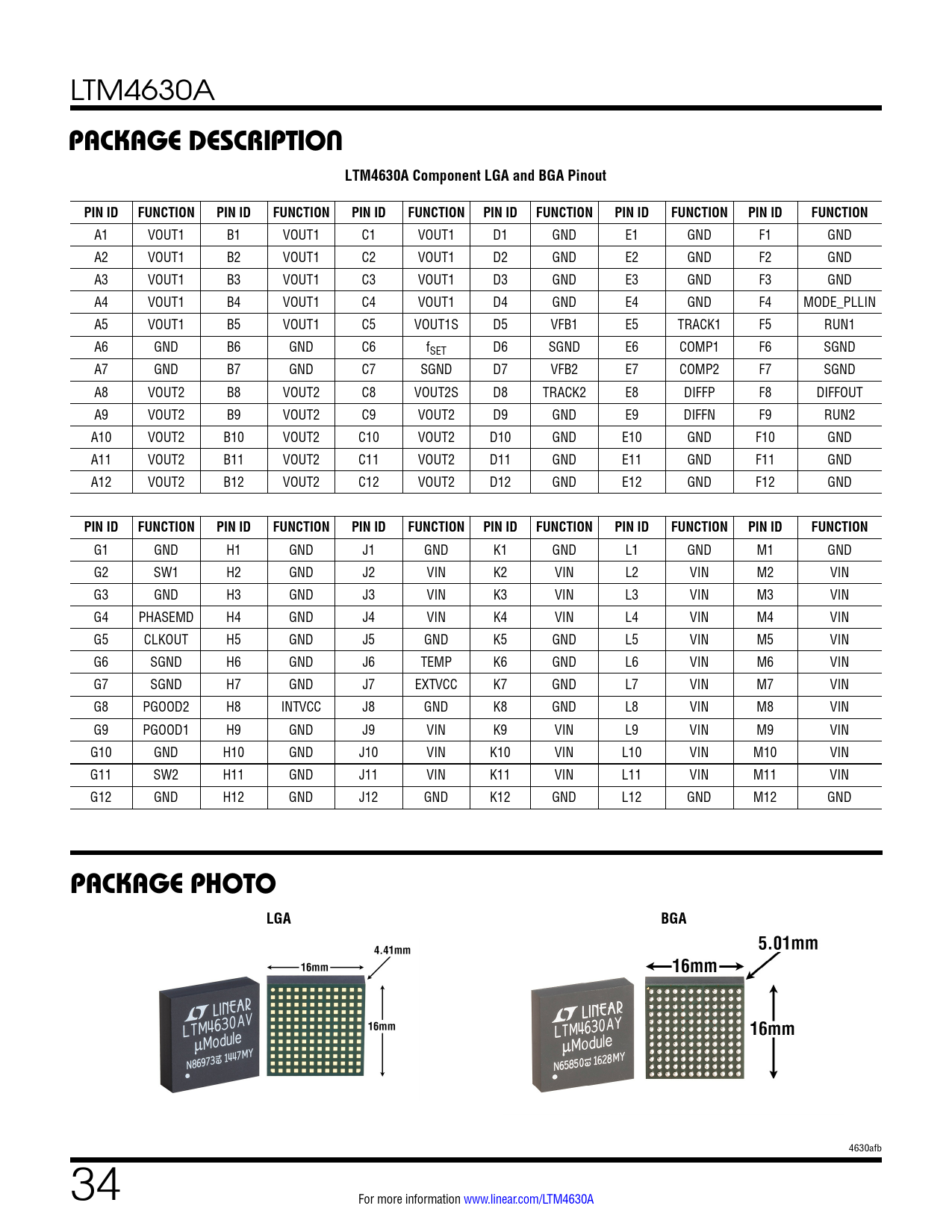

PACKAGE DESCRIPTION LTM4630A Component LGA and BGA Pinout PIN ID FUNCTION PIN ID FUNCTION PIN ID FUNCTION PIN ID FUNCTION PIN ID FUNCTION PIN ID FUNCTION
A1 VOUT1 B1 VOUT1 C1 VOUT1 D1 GND E1 GND F1 GND A2 VOUT1 B2 VOUT1 C2 VOUT1 D2 GND E2 GND F2 GND A3 VOUT1 B3 VOUT1 C3 VOUT1 D3 GND E3 GND F3 GND A4 VOUT1 B4 VOUT1 C4 VOUT1 D4 GND E4 GND F4 MODE_PLLIN A5 VOUT1 B5 VOUT1 C5 VOUT1S D5 VFB1 E5 TRACK1 F5 RUN1 A6 GND B6 GND C6 fSET D6 SGND E6 COMP1 F6 SGND A7 GND B7 GND C7 SGND D7 VFB2 E7 COMP2 F7 SGND A8 VOUT2 B8 VOUT2 C8 VOUT2S D8 TRACK2 E8 DIFFP F8 DIFFOUT A9 VOUT2 B9 VOUT2 C9 VOUT2 D9 GND E9 DIFFN F9 RUN2 A10 VOUT2 B10 VOUT2 C10 VOUT2 D10 GND E10 GND F10 GND A11 VOUT2 B11 VOUT2 C11 VOUT2 D11 GND E11 GND F11 GND A12 VOUT2 B12 VOUT2 C12 VOUT2 D12 GND E12 GND F12 GND
PIN ID FUNCTION PIN ID FUNCTION PIN ID FUNCTION PIN ID FUNCTION PIN ID FUNCTION PIN ID FUNCTION
G1 GND H1 GND J1 GND K1 GND L1 GND M1 GND G2 SW1 H2 GND J2 VIN K2 VIN L2 VIN M2 VIN G3 GND H3 GND J3 VIN K3 VIN L3 VIN M3 VIN G4 PHASEMD H4 GND J4 VIN K4 VIN L4 VIN M4 VIN G5 CLKOUT H5 GND J5 GND K5 GND L5 VIN M5 VIN G6 SGND H6 GND J6 TEMP K6 GND L6 VIN M6 VIN G7 SGND H7 GND J7 EXTVCC K7 GND L7 VIN M7 VIN G8 PGOOD2 H8 INTVCC J8 GND K8 GND L8 VIN M8 VIN G9 PGOOD1 H9 GND J9 VIN K9 VIN L9 VIN M9 VIN G10 GND H10 GND J10 VIN K10 VIN L10 VIN M10 VIN G11 SW2 H11 GND J11 VIN K11 VIN L11 VIN M11 VIN G12 GND H12 GND J12 GND K12 GND L12 GND M12 GND
PACKAGE PHOTO LGA BGA
