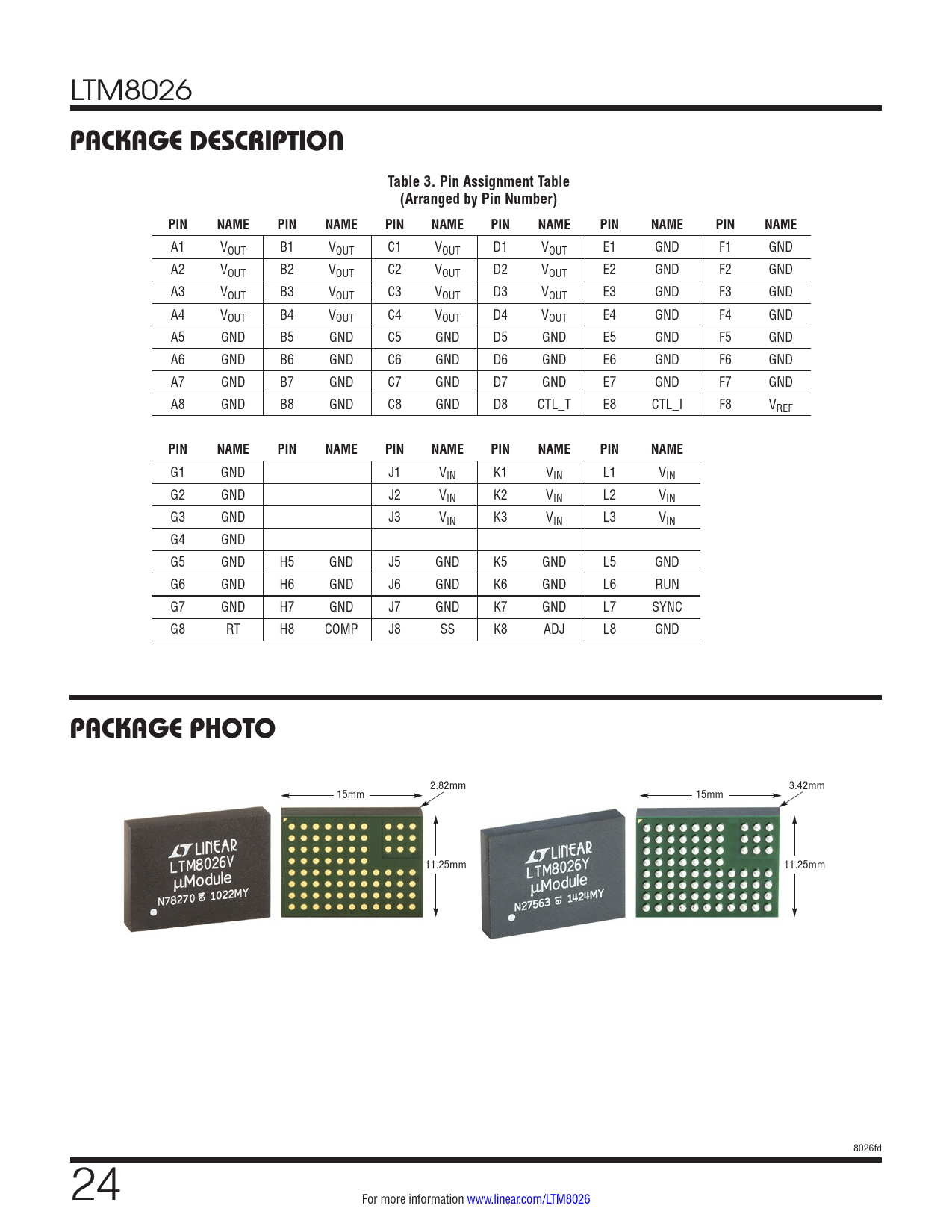

PACKAGE DESCRIPTION Table 3. Pin Assignment Table (Arranged by Pin Number) PIN NAME PIN NAME PIN NAME PIN NAME PIN NAME PIN NAME
A1 VOUT B1 VOUT C1 VOUT D1 VOUT E1 GND F1 GND A2 VOUT B2 VOUT C2 VOUT D2 VOUT E2 GND F2 GND A3 VOUT B3 VOUT C3 VOUT D3 VOUT E3 GND F3 GND A4 VOUT B4 VOUT C4 VOUT D4 VOUT E4 GND F4 GND A5 GND B5 GND C5 GND D5 GND E5 GND F5 GND A6 GND B6 GND C6 GND D6 GND E6 GND F6 GND A7 GND B7 GND C7 GND D7 GND E7 GND F7 GND A8 GND B8 GND C8 GND D8 CTL_T E8 CTL_I F8 VREF
PIN NAME PIN NAME PIN NAME PIN NAME PIN NAME
G1 GND J1 VIN K1 VIN L1 VIN G2 GND J2 VIN K2 VIN L2 VIN G3 GND J3 VIN K3 VIN L3 VIN G4 GND G5 GND H5 GND J5 GND K5 GND L5 GND G6 GND H6 GND J6 GND K6 GND L6 RUN G7 GND H7 GND J7 GND K7 GND L7 SYNC G8 RT H8 COMP J8 SS K8 ADJ L8 GND
PACKAGE PHOTO
2.82mm 3.42mm 15mm 15mm 11.25mm 11.25mm 8026fd 24 For more information www.linear.com/LTM8026 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Package Photo Package Description Revision History Typical Application Design Resources Related Parts
