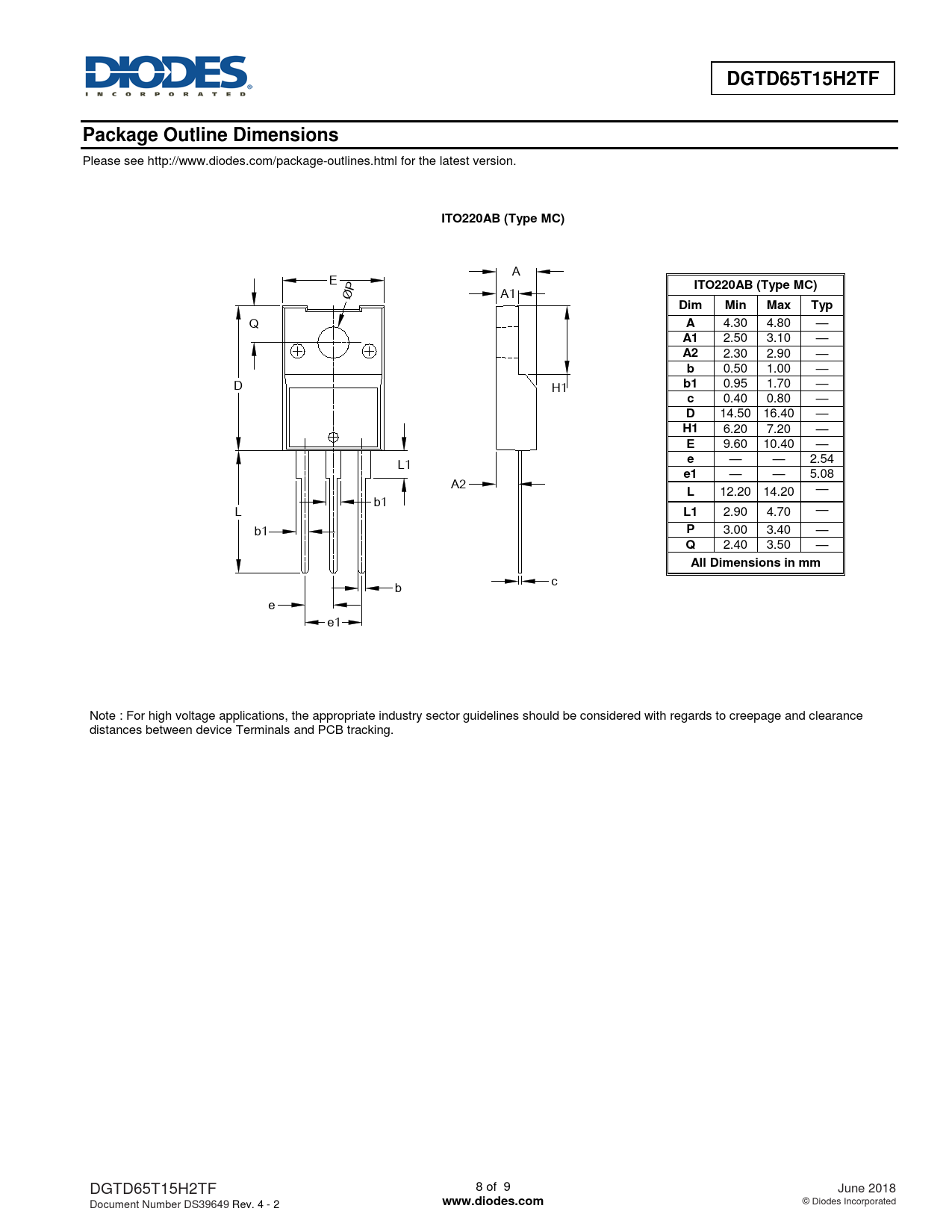

DGTD65T15H2TF Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
ITO220AB (Type MC)
A E
ITO220AB (Type MC)
ØP A1
Dim Min Max Typ
Q
A
4.30 4.80 —
A1
2.50 3.10 —
A2
2.30 2.90 —
b
0.50 1.00 —
b1
0.95 1.70 — D H1
c
0.40 0.80 —
D
14.50 16.40 —
H1
6.20 7.20 —
E
9.60 10.40 —
e
— — 2.54 L1
e1
— — 5.08 A2
L
12.20 14.20 — b1 L
L1
2.90 4.70 —
P
3.00 3.40 — b1
Q
2.40 3.50 —
All Dimensions in mm
c b e e1 Note : For high voltage applications, the appropriate industry sector guidelines should be considered with regards to creepage and clearance distances between device Terminals and PCB tracking. DGTD65T15H2TF 8 of 9 June 2018 Document Number DS39649 Rev. 4 - 2
