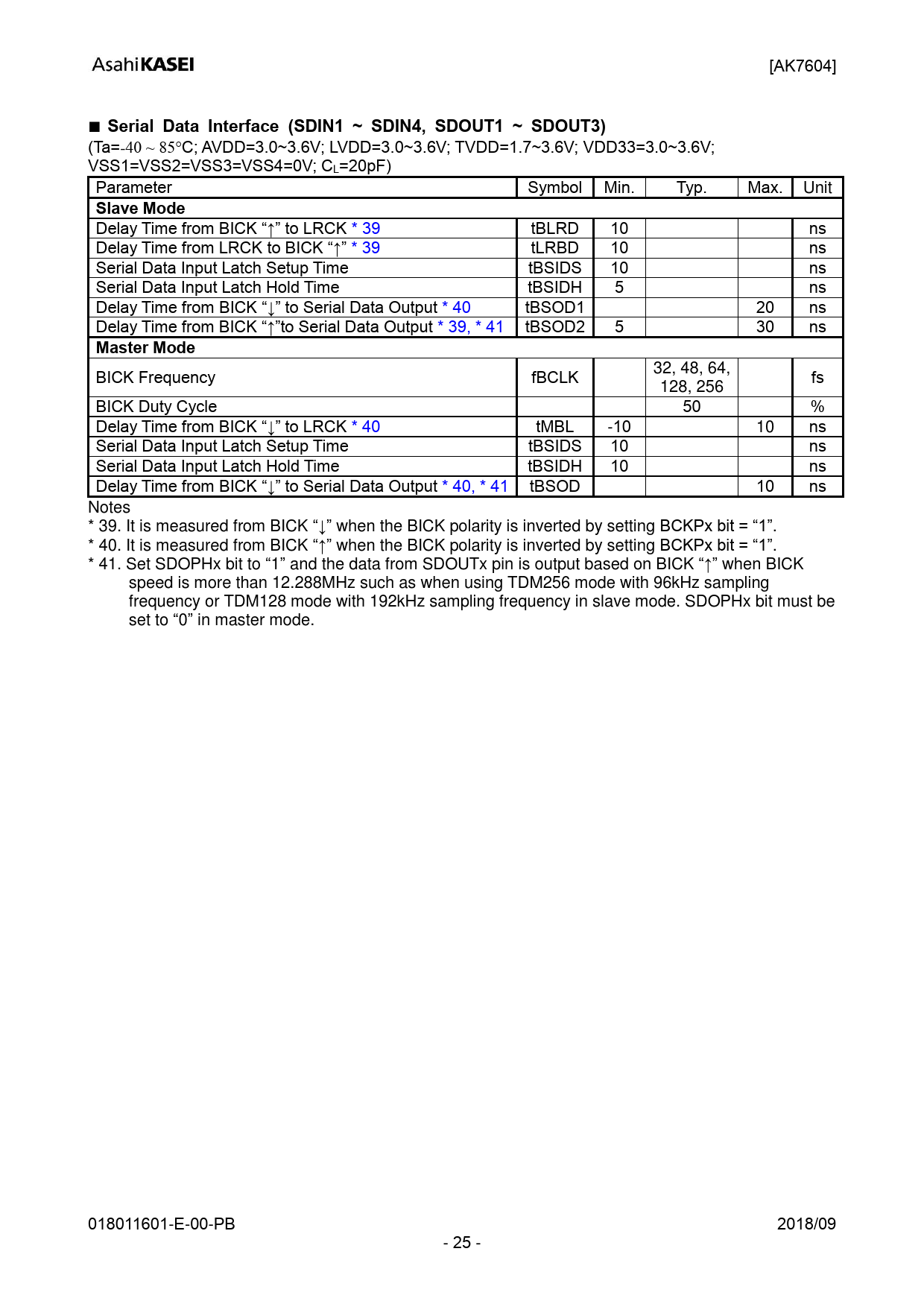

[AK7604] ■ Serial Data Interface (SDIN1 ~ SDIN4, SDOUT1 ~ SDOUT3)
(Ta=-40 ~ 85C; AVDD=3.0~3.6V; LVDD=3.0~3.6V; TVDD=1.7~3.6V; VDD33=3.0~3.6V;
VSS1=VSS2=VSS3=VSS4=0V; CL=20pF)
Parameter
Symbol Min.
Typ.
Max. Unit
Slave Mode
Delay Time from BICK “↑” to LRCK * 39
tBLRD
10
ns
Delay Time from LRCK to BICK “↑” * 39
tLRBD
10
ns
Serial Data Input Latch Setup Time
tBSIDS
10
ns
Serial Data Input Latch Hold Time
tBSIDH
5
ns
Delay Time from BICK “↓” to Serial Data Output * 40
tBSOD1
20
ns
Delay Time from BICK “↑”to Serial Data Output * 39, * 41 tBSOD2
5
30
ns
Master Mode
32, 48, 64,
BICK Frequency
fBCLK
fs
128, 256
BICK Duty Cycle
50
%
Delay Time from BICK “↓” to LRCK * 40
tMBL
-10
10
ns
Serial Data Input Latch Setup Time
tBSIDS
10
ns
Serial Data Input Latch Hold Time
tBSIDH
10
ns
Delay Time from BICK “↓” to Serial Data Output * 40, * 41 tBSOD
10
ns
Notes
* 39. It is measured from BICK “↓” when the BICK polarity is inverted by setting BCKPx bit = “1”.
* 40. It is measured from BICK “↑” when the BICK polarity is inverted by setting BCKPx bit = “1”.
* 41. Set SDOPHx bit to “1” and the data from SDOUTx pin is output based on BICK “↑” when BICK
speed is more than 12.288MHz such as when using TDM256 mode with 96kHz sampling
frequency or TDM128 mode with 192kHz sampling frequency in slave mode. SDOPHx bit must be
set to “0” in master mode. 018011601-E-00-PB 2018/09
