DC - 7 GHz FRACTIONAL-N DIVIDER AND FREQUENCY SWEEPER

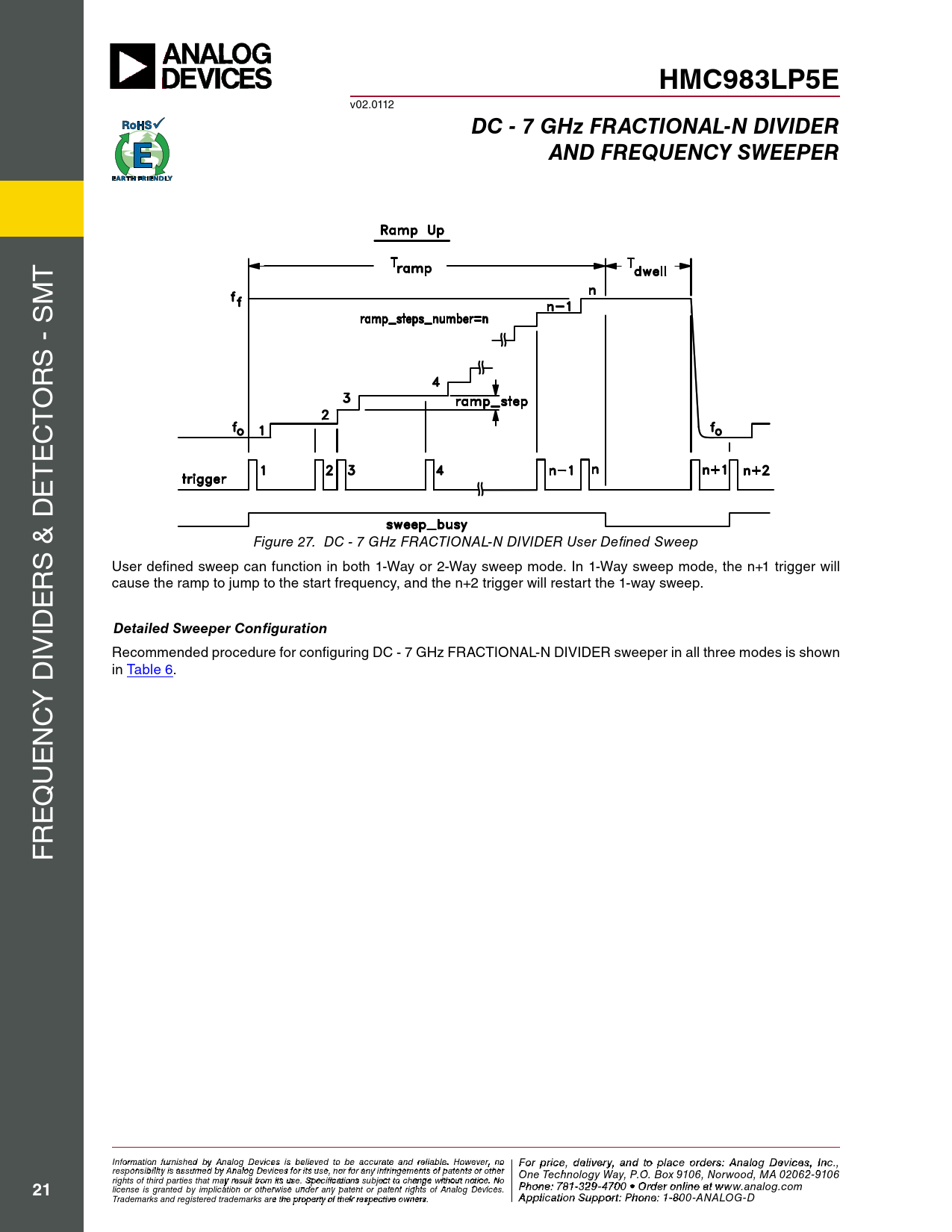

t M s s - r o t c e t e Figure 27. DC - 7 GHz FRACTIONAL-N DIVIDER User Defined Sweep s & D r user defined sweep can function in both 1-Way or 2-Way sweep mode. in 1-Way sweep mode, the n+1 trigger will e cause the ramp to jump to the start frequency, and the n+2 trigger will restart the 1-way sweep. iD
Detailed Sweeper Configuration
