TYPICAL APPLICATIONS. Voltage Controlled Pulse Width Generator. Single Supply Precision RC 1MHz Oscillator
Модельный ряд для этого даташита
Текстовая версия документа
LT1016

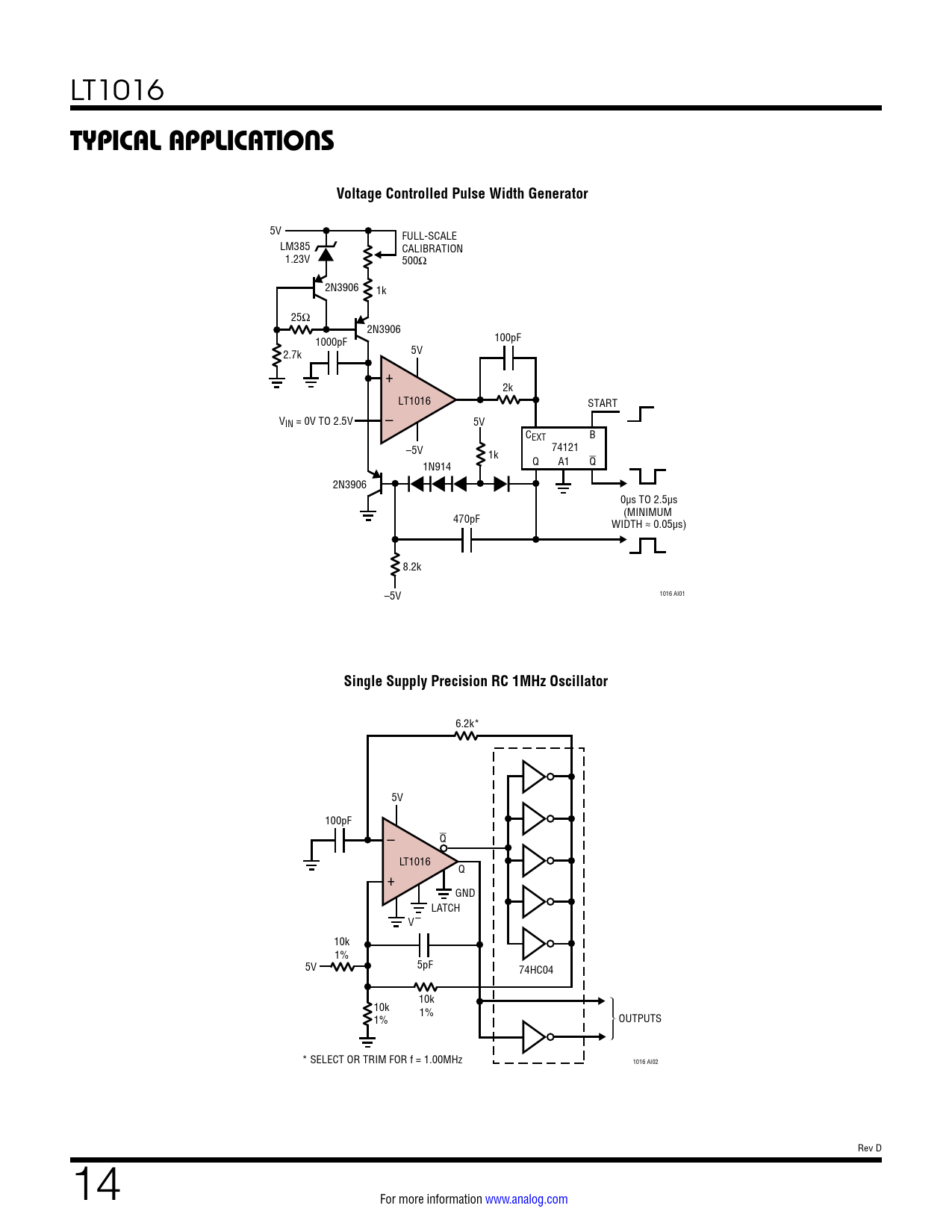

TYPICAL APPLICATIONS Voltage Controlled Pulse Width Generator
5V FULL-SCALE LM385 CALIBRATION 1.23V 500Ω 2N3906 1k 25Ω 2N3906 1000pF 100pF 5V 2.7k + 2k LT1016 START VIN = 0V TO 2.5V – 5V CEXT B –5V 74121 1k 1N914 Q A1 Q 2N3906 0µs TO 2.5µs (MINIMUM 470pF WIDTH ≈ 0.05µs) 8.2k –5V 1016 AI01
Single Supply Precision RC 1MHz Oscillator
6.2k* 5V 100pF – Q LT1016 Q + GND LATCH V– 10k 1% 5V 5pF 74HC04 10k 10k 1% 1% OUTPUTS * SELECT OR TRIM FOR f = 1.00MHz 1016 AI02 Rev D 14 For more information www.analog.com Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Appendix A Package Description Revision History Applications Information Related Parts
