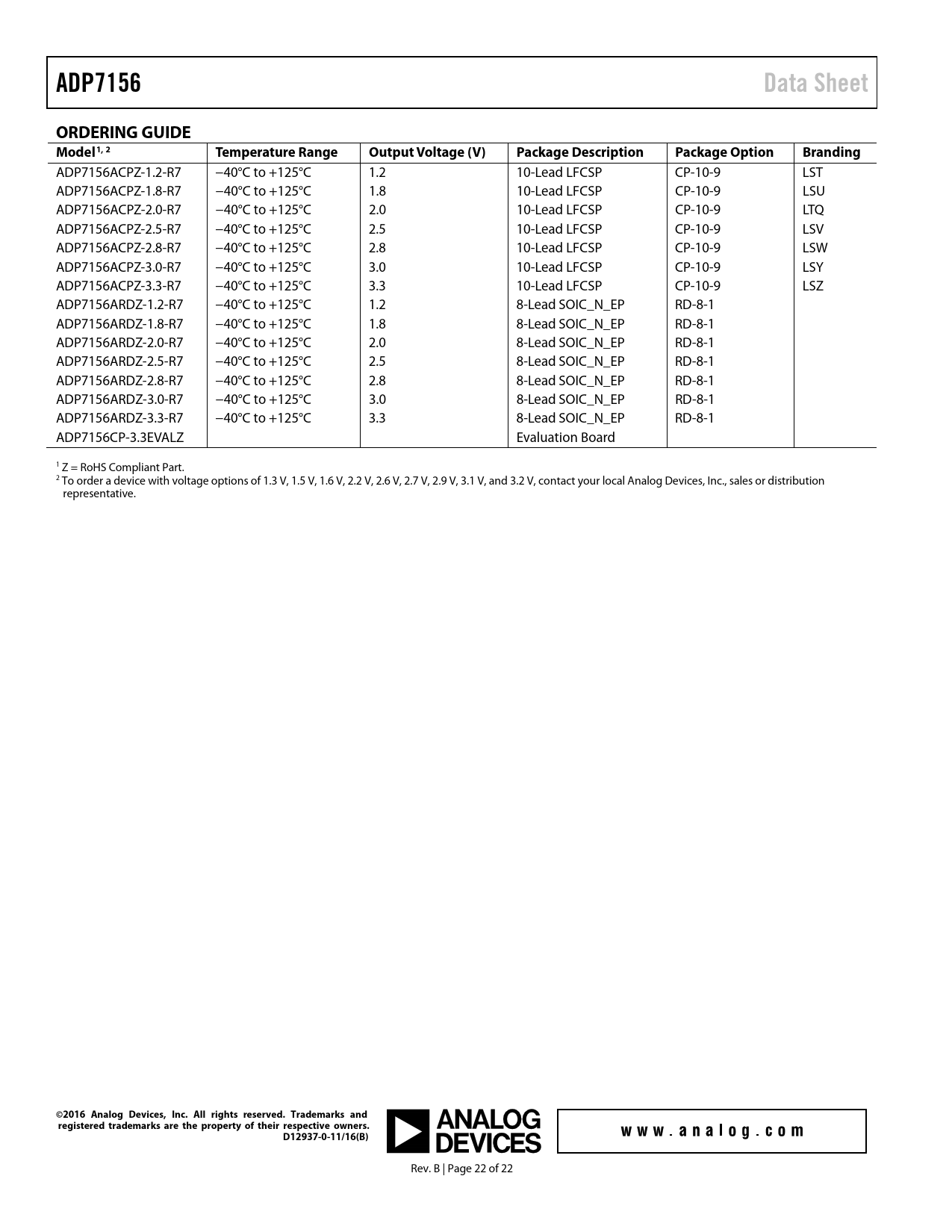

ADP7156 Data Sheet ORDERING GUIDE Model1, 2 Temperature Range Output Voltage (V) Package Description Package Option Branding
ADP7156ACPZ-1.2-R7 −40°C to +125°C 1.2 10-Lead LFCSP CP-10-9 LST ADP7156ACPZ-1.8-R7 −40°C to +125°C 1.8 10-Lead LFCSP CP-10-9 LSU ADP7156ACPZ-2.0-R7 −40°C to +125°C 2.0 10-Lead LFCSP CP-10-9 LTQ ADP7156ACPZ-2.5-R7 −40°C to +125°C 2.5 10-Lead LFCSP CP-10-9 LSV ADP7156ACPZ-2.8-R7 −40°C to +125°C 2.8 10-Lead LFCSP CP-10-9 LSW ADP7156ACPZ-3.0-R7 −40°C to +125°C 3.0 10-Lead LFCSP CP-10-9 LSY ADP7156ACPZ-3.3-R7 −40°C to +125°C 3.3 10-Lead LFCSP CP-10-9 LSZ ADP7156ARDZ-1.2-R7 −40°C to +125°C 1.2 8-Lead SOIC_N_EP RD-8-1 ADP7156ARDZ-1.8-R7 −40°C to +125°C 1.8 8-Lead SOIC_N_EP RD-8-1 ADP7156ARDZ-2.0-R7 −40°C to +125°C 2.0 8-Lead SOIC_N_EP RD-8-1 ADP7156ARDZ-2.5-R7 −40°C to +125°C 2.5 8-Lead SOIC_N_EP RD-8-1 ADP7156ARDZ-2.8-R7 −40°C to +125°C 2.8 8-Lead SOIC_N_EP RD-8-1 ADP7156ARDZ-3.0-R7 −40°C to +125°C 3.0 8-Lead SOIC_N_EP RD-8-1 ADP7156ARDZ-3.3-R7 −40°C to +125°C 3.3 8-Lead SOIC_N_EP RD-8-1 ADP7156CP-3.3EVALZ Evaluation Board 1 Z = RoHS Compliant Part. 2 To order a device with voltage options of 1.3 V, 1.5 V, 1.6 V, 2.2 V, 2.6 V, 2.7 V, 2.9 V, 3.1 V, and 3.2 V, contact your local Analog Devices, Inc., sales or distribution representative.
©2016 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D12937-0-11/16(B)
