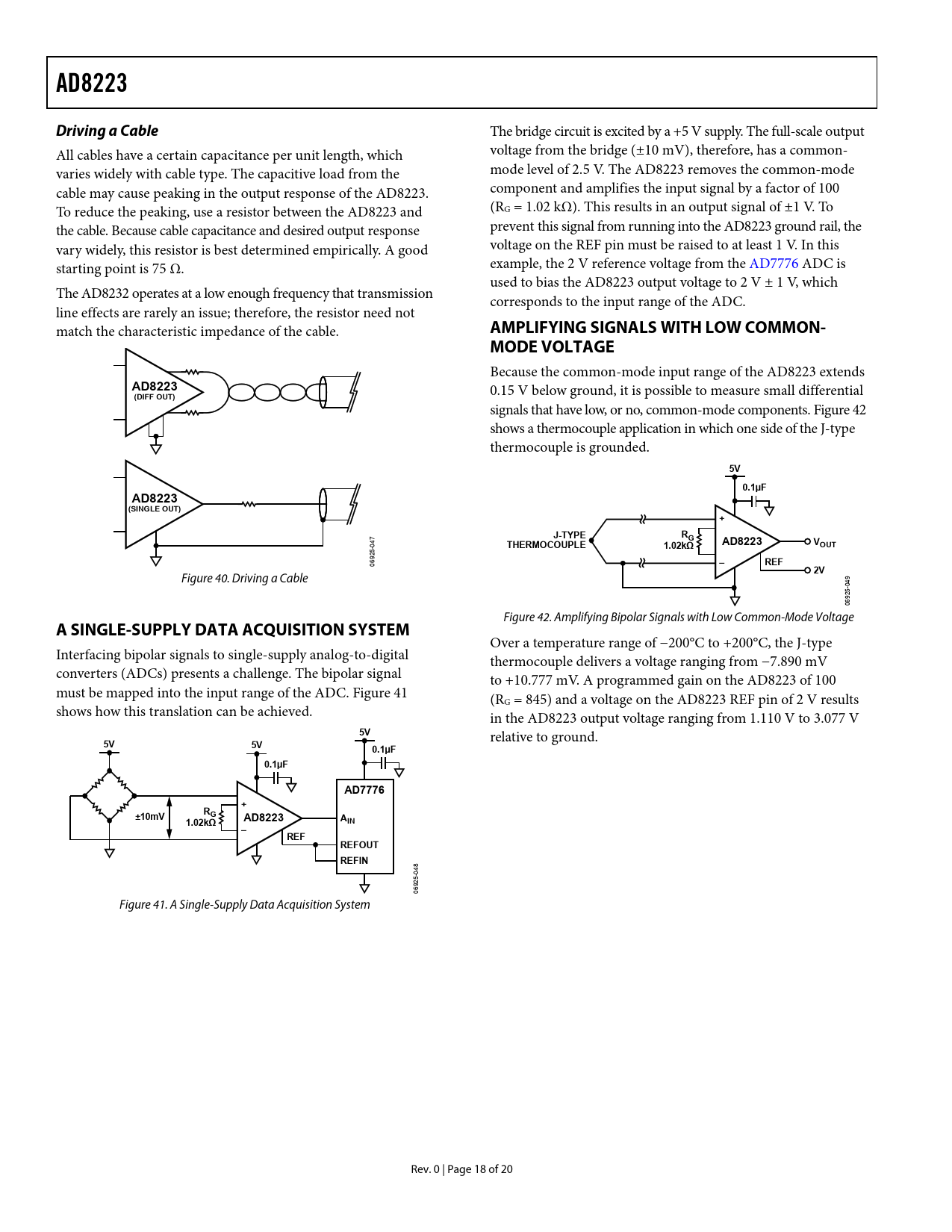

AD8223 Driving a Cable
The bridge circuit is excited by a +5 V supply. The full-scale output All cables have a certain capacitance per unit length, which voltage from the bridge (±10 mV), therefore, has a common- varies widely with cable type. The capacitive load from the mode level of 2.5 V. The AD8223 removes the common-mode cable may cause peaking in the output response of the AD8223. component and amplifies the input signal by a factor of 100 To reduce the peaking, use a resistor between the AD8223 and (RG = 1.02 kΩ). This results in an output signal of ±1 V. To the cable. Because cable capacitance and desired output response prevent this signal from running into the AD8223 ground rail, the vary widely, this resistor is best determined empirically. A good voltage on the REF pin must be raised to at least 1 V. In this starting point is 75 Ω. example, the 2 V reference voltage from the AD7776 ADC is used to bias the AD8223 output voltage to 2 V ± 1 V, which The AD8232 operates at a low enough frequency that transmission corresponds to the input range of the ADC. line effects are rarely an issue; therefore, the resistor need not match the characteristic impedance of the cable.
AMPLIFYING SIGNALS WITH LOW COMMON- MODE VOLTAGE
Because the common-mode input range of the AD8223 extends
AD8223
0.15 V below ground, it is possible to measure small differential
(DIFF OUT)
signals that have low, or no, common-mode components. Figure 42 shows a thermocouple application in which one side of the J-type thermocouple is grounded.
5V 0.1µF AD8223 (SINGLE OUT) +
7
J-TYPE RG
04
AD8223 V THERMOCOUPLE 1.02kΩ OUT
5- 92 06
– REF 2V
Figure 40. Driving a Cable 9 04 5- 92 06 Figure 42. Amplifying Bipolar Signals with Low Common-Mode Voltage
A SINGLE-SUPPLY DATA ACQUISITION SYSTEM
Over a temperature range of −200°C to +200°C, the J-type Interfacing bipolar signals to single-supply analog-to-digital thermocouple delivers a voltage ranging from −7.890 mV converters (ADCs) presents a challenge. The bipolar signal to +10.777 mV. A programmed gain on the AD8223 of 100 must be mapped into the input range of the ADC. Figure 41 (RG = 845) and a voltage on the AD8223 REF pin of 2 V results shows how this translation can be achieved. in the AD8223 output voltage ranging from 1.110 V to 3.077 V
