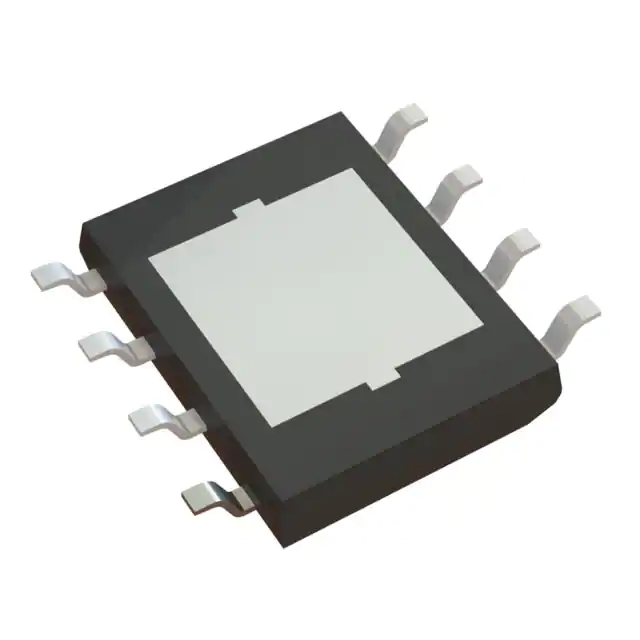

link to page 21 2ED24427N01F 10 A dual-channel low-side gate driver ICFeaturesProduct summary 10 A sink and 10 A source driver capability VCC = 12.5 V to 24 V 11.5 V under voltage lockout Io+pk / Io- pk(typ.) =+ 10 A/ - 10 A 24 V maximum supply voltage tON / tOFF (max.) = 40 ns/ 55 ns Enable function CMOS Schmitt-triggered inputs Package Output in phase with input 3.3 V, 5 V and 15 V input logic compatible 2 kV ESD HBM RoHS compliant Potential applications Driving high current IGBTs, enhancement mode N-Channel MOSFETs Power Pad DSO-8 directly or through a gate drive transformer in various power electronic applications in single or parallel combinations Typical Infineon recommendations are as below: Electric vehicle (EV) charging stations and battery management systems DC-DC converters Industrial Drives Industrial SMPS Motor control Industrial applications General purpose low-side gate driver Product validation Qualified for industrial applications according to the relevant tests of JEDEC JESD47/22 and J-STD-020. Ordering informationStandard packBase part numberPackage typeOrderable part numberFormQuantity 2ED24427N01F PG-DSO-8-900 Tape and Reel 2500 2ED24427N01FXUMA1 Datasheet Please read the Important Notice and Warnings at the end of this document V 2.0 www.infineon.com/gdLowSide Page 1 of 21 2019-11-10
