Isolated, Digital Output, Power Monitoring IC ACS37800 with Zero-Crossing Detection, Overcurrent and Overvoltage Flagging RECOMMENDED PCB LAYOUT
NOT TO SCALE All dimensions in millimeters. 15.75 9.54 0.65 1.27 Package Outline 2.25 Slot in PCB to maintain >8 mm creepage once part is on PCB 7.25 1.27 3.56 17.27 Current Current In Out Perimeter holes for stitching to the other, matching current trace design, layers of 21.51 the PCB for enhanced thermal capability.

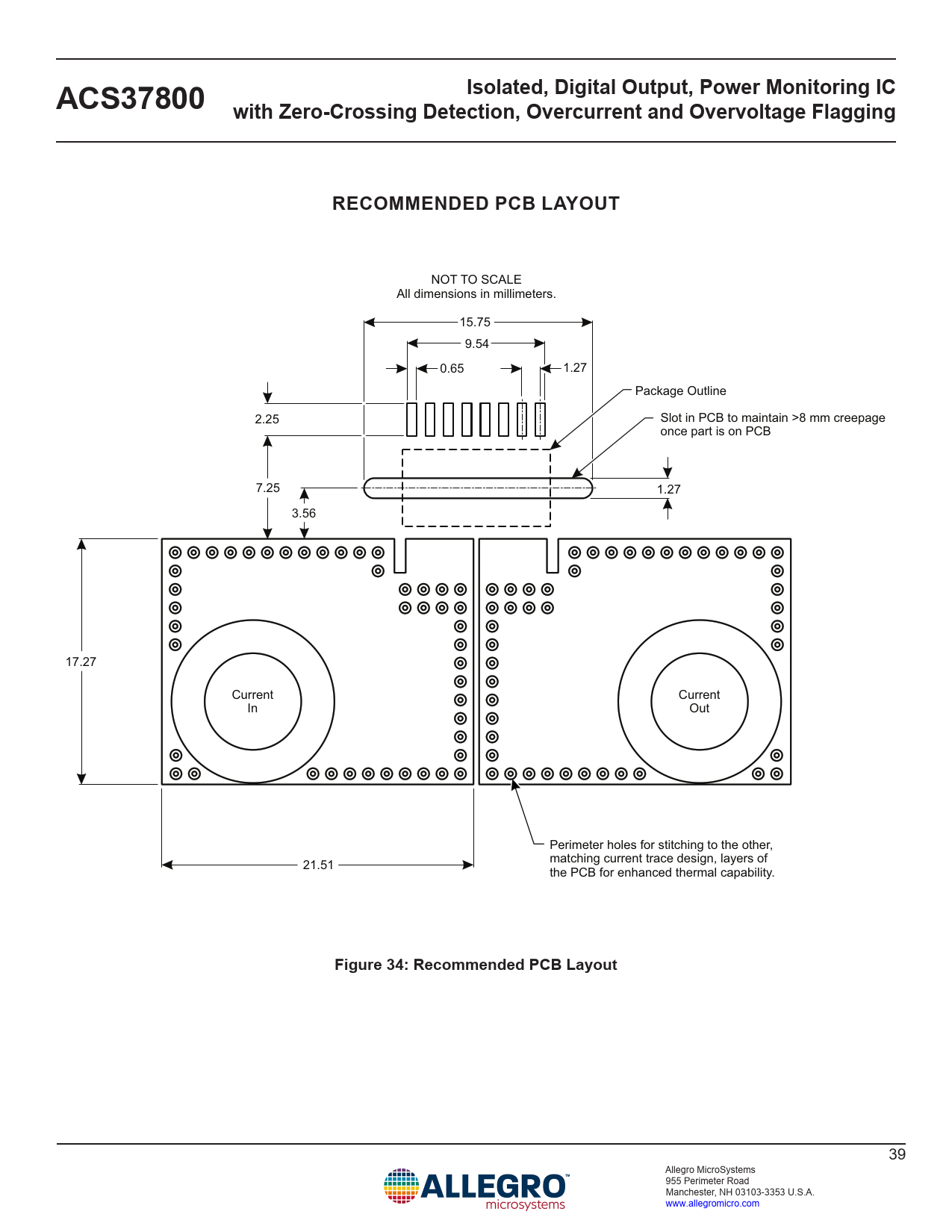

Figure 34: Recommended PCB Layout
