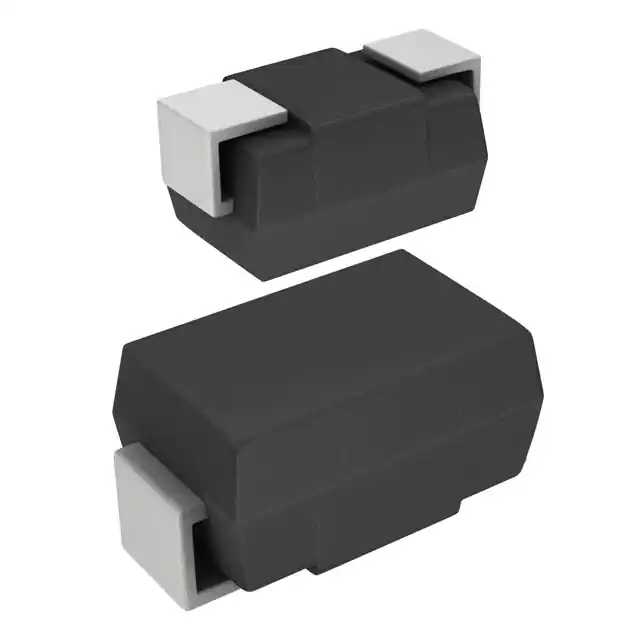

GS1AWG~GS1MWGSURFACE MOUNT GENERAL PURPOSE RECTIFIERVOLTAGE50 to 1000 VoltCURRENT1 AmpereFEATURES • For surface mounted applications in order to optimize board space • Easy pick and place • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • Low Forward Drop • High temperature soldering : 260°C /10 seconds at terminals • Glass Passivated Junction • Lead free in compliance with EU RoHS 2.0 • Green molding compound as per IEC 61249 standard MECHANICAL DATA • Case: SMA(W) molded plastic • Terminals: Solder plated, solderable per MIL-STD-750,Method 2026 • Polarity: Indicated by cathode band • Standard packaging: 12 mm tape (EIA-481) • Weight: 0.002 ounces, 0.068 grams 1 2 Cathode Anode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. PARAMETER SYMBOL GS1AWG GS1BWG GS1DWG GS1GWG GS1JWG GS1KWG GS1MWG UNITS Maximum Recurrent Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage VDC 50 100 200 400 600 800 1000 V Maximum Average Forward Current IF(AV) 1 A Peak Forward Surge Current : 8.3ms single half sine- IFSM A wave superimposed on rated load 30 Maximum Forward Voltage at 1A DC VF 1.1 V Maximum DC Reverse Current at Rated DC IR 1 μA Blocking Voltage Typical Junction Capacitance Measured at 1MHz and CJ pF applied VR=4V 7 (Note 1) RθJA 150 Typical Junction Resistance (Note 2) RθJL O 15 C / W (Note 3) RθJC 4.4 Operating and Storage Temperature Range TJ,TSTG O -55 to +150 C Notes:1.Mounted on a FR4 PCB, single-sided copper, mini pad. 2.Mounted on a FR4 PCB, single-sided copper, with 76.2 x 114.3mm copper pad area. 3.Mounted on a FR4 PCB, single-sided copper, with 100cm2 copper pad area. October 17,2019-REV.04 PAGE . 1
