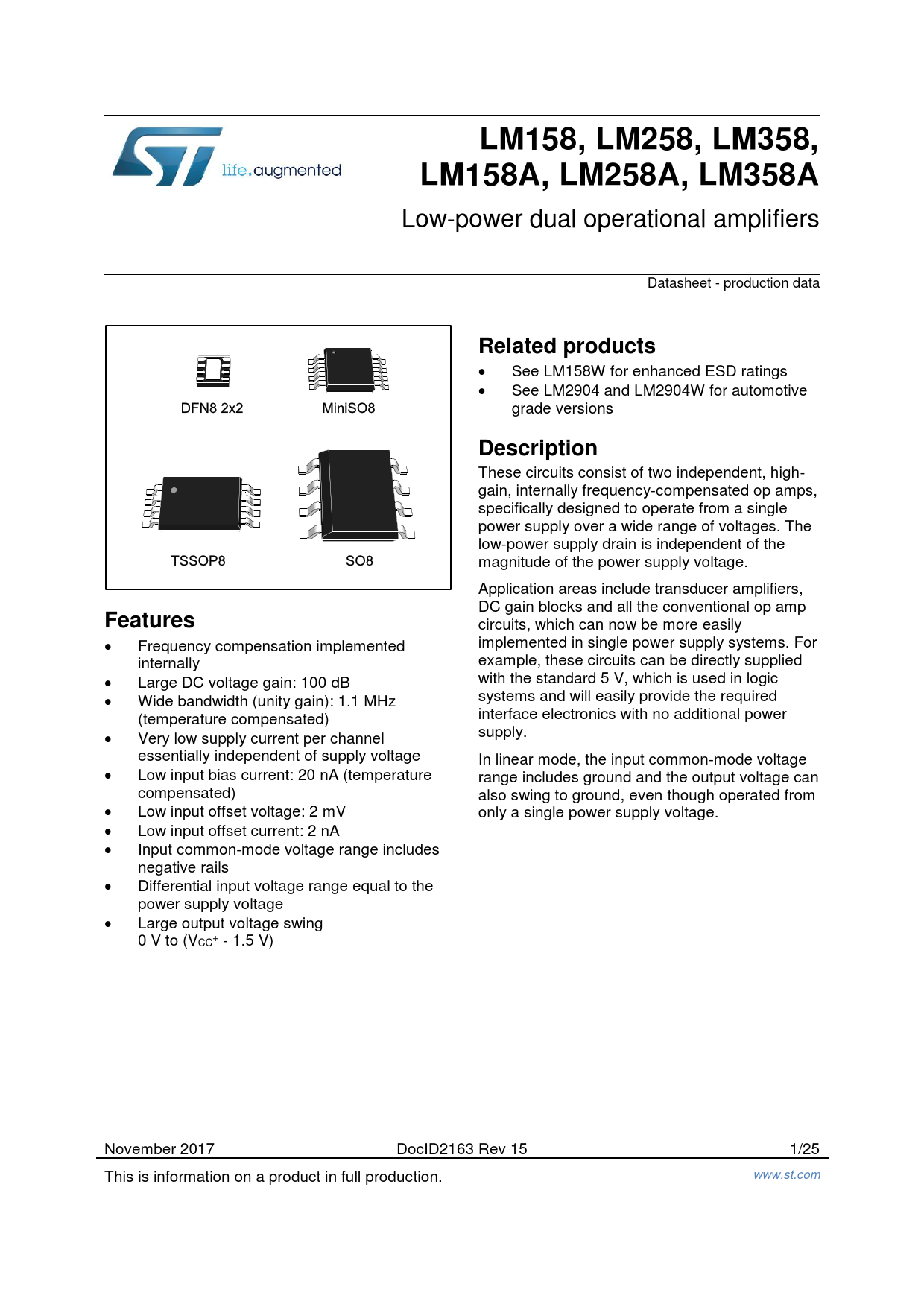

LM158, LM258, LM358,LM158A, LM258A, LM358A Low-power dual operational amplifiers Datasheet - production data Related products See LM158W for enhanced ESD ratings See LM2904 and LM2904W for automotive grade versions Description These circuits consist of two independent, high- gain, internally frequency-compensated op amps, specifically designed to operate from a single power supply over a wide range of voltages. The low-power supply drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp Features circuits, which can now be more easily Frequency compensation implemented implemented in single power supply systems. For internally example, these circuits can be directly supplied Large DC voltage gain: 100 dB with the standard 5 V, which is used in logic Wide bandwidth (unity gain): 1.1 MHz systems and will easily provide the required (temperature compensated) interface electronics with no additional power Very low supply current per channel supply. essentially independent of supply voltage In linear mode, the input common-mode voltage Low input bias current: 20 nA (temperature range includes ground and the output voltage can compensated) also swing to ground, even though operated from Low input offset voltage: 2 mV only a single power supply voltage. Low input offset current: 2 nA Input common-mode voltage range includes negative rails Differential input voltage range equal to the power supply voltage Large output voltage swing 0 V to (V + CC - 1.5 V) November 2017 DocID2163 Rev 15 1/25 This is information on a product in full production. www.st.com Document Outline 1 Schematic diagram 2 Package pin connections 3 Absolute maximum ratings 4 Electrical characteristics 5 Electrical characteristic curves 6 Typical applications 7 Package information 7.1 SO8 package information 7.2 MiniSO8 package information 7.3 DFN8 2x2 package information 7.4 TSSOP8 package information 8 Ordering information 9 Revision history
