MAX6029 Ultra-Low-Power Precision Series Voltage Reference

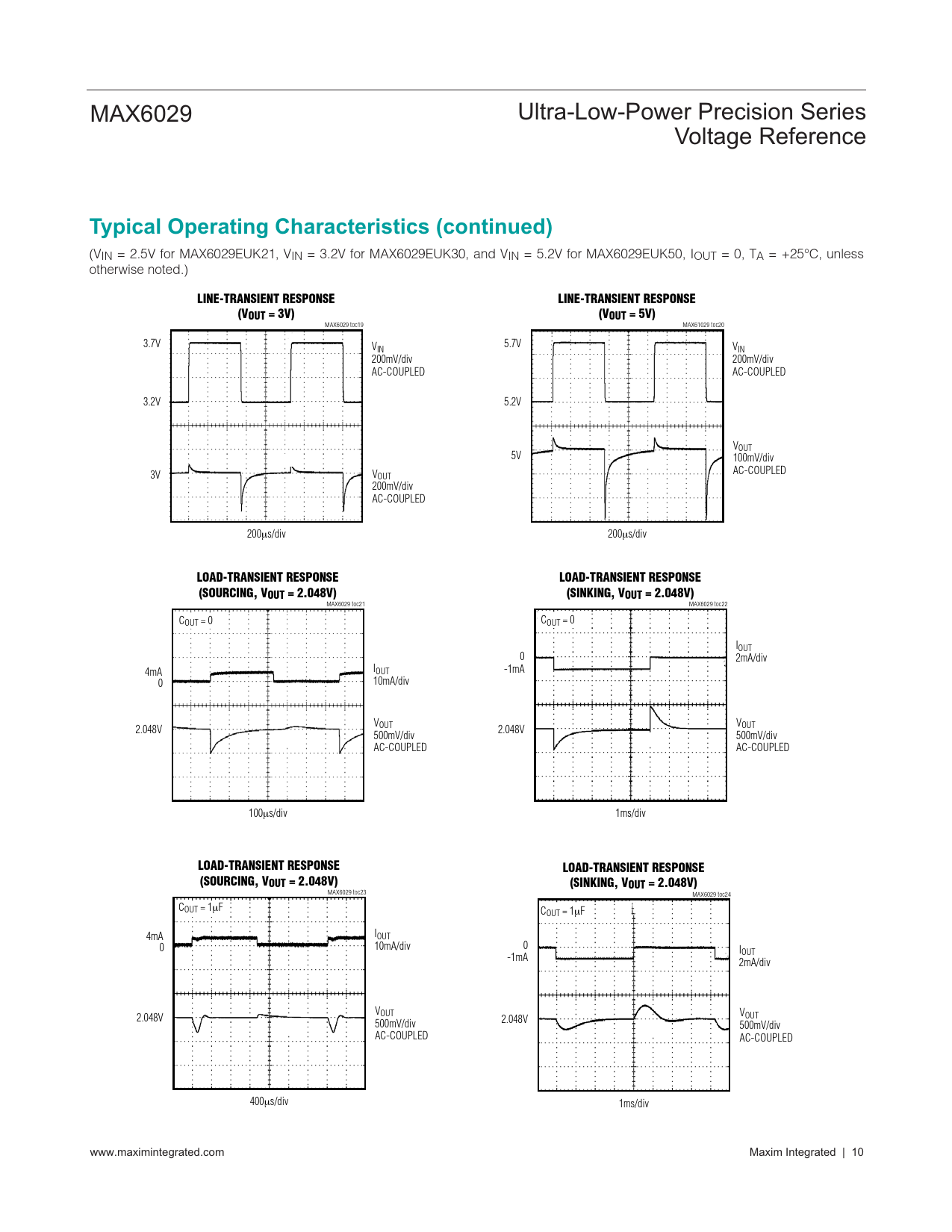

Typical Operating Characteristics (continued)
(VIN = 2.5V for MAX6029EUK21, VIN = 3.2V for MAX6029EUK30, and VIN = 5.2V for MAX6029EUK50, IOUT = 0, TA = +25°C, unless otherwise noted.)
LINE-TRANSIENT RESPONSE LINE-TRANSIENT RESPONSE (VOUT = 3V) (VOUT = 5V)
MAX6029 toc19 MAX61029 toc20 3.7V V 5.7V IN VIN 200mV/div 200mV/div AC-COUPLED AC-COUPLED 3.2V 5.2V VOUT 5V 100mV/div 3V V AC-COUPLED OUT 200mV/div AC-COUPLED 200μs/div 200μs/div
LOAD-TRANSIENT RESPONSE LOAD-TRANSIENT RESPONSE (SOURCING, VOUT = 2.048V) (SINKING, VOUT = 2.048V)
MAX6029 toc21 MAX6029 toc22 COUT = 0 COUT = 0 IOUT 0 2mA/div 4mA IOUT -1mA 10mA/div 0 V V 2.048V OUT 2.048V OUT 500mV/div 500mV/div AC-COUPLED AC-COUPLED 100μs/div 1ms/div
LOAD-TRANSIENT RESPONSE LOAD-TRANSIENT RESPONSE (SOURCING, VOUT = 2.048V) (SINKING, VOUT = 2.048V)
MAX6029 toc23 MAX6029 toc24 COUT = 1μF COUT = 1μF 4mA IOUT 0 10mA/div 0 I -1mA OUT 2mA/div V 2.048V OUT VOUT 500mV/div 2.048V 500mV/div AC-COUPLED AC-COUPLED 400μs/div 1ms/div www.maximintegrated.com Maxim Integrated | 10
